BAT32A237 series uses the high-performance ARM Cortex-M0®+ 32bit RISC core, which can operate 48MHz, 128KB Flash Memory ,12KB SRAM,1.5K Data Flash Memory. Various communication interfaces are integtated such as I2C, SPI, UART, LIN, CAN bus, as well as analog front-end with operational amplifiers, ADC, 12bit A/ D converter,temperature sensor, 8bit D/ A converter,comparator. With the integrated event linkage controller, direct connection between hardware modules can be realized without CPU intervention, which is faster than using interrupts.
What core does the BAT32A237 microcontroller series use?
The BAT32A237 series is built on a high-performance ARM Cortex-M0®+ 32bit RISC core that can operate at speeds up to 48MHz.
What memory configurations are available in this series?
This series features 128KB of Flash Memory, 12KB of SRAM, and 1.5KB of Data Flash Memory for reliable data and program storage.
Is the BAT32A237 series suitable for automotive applications?
Yes, it is designed for high reliability and conforms to the AEC-Q100 Grade 1 automotive reliability standard, supporting operating temperatures from -40℃ to 125℃.
What communication interfaces are integrated?
The series integrates standard communication interfaces including I2C, SPI, UART, LIN-Bus, and a CAN2.0 interface compliant with ISO 11898 standards.
What package options are available for these microcontrollers?

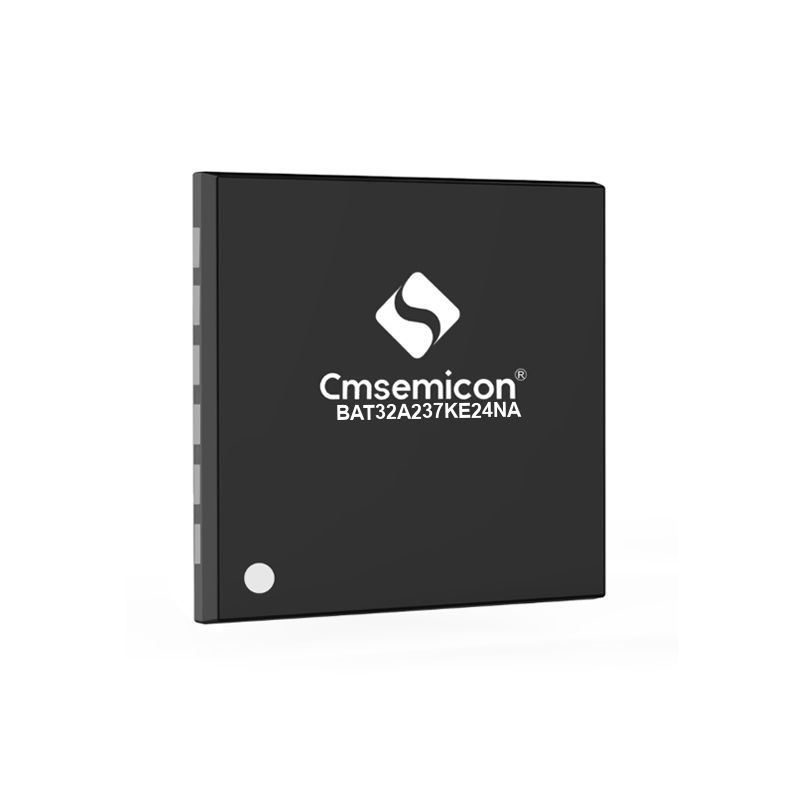

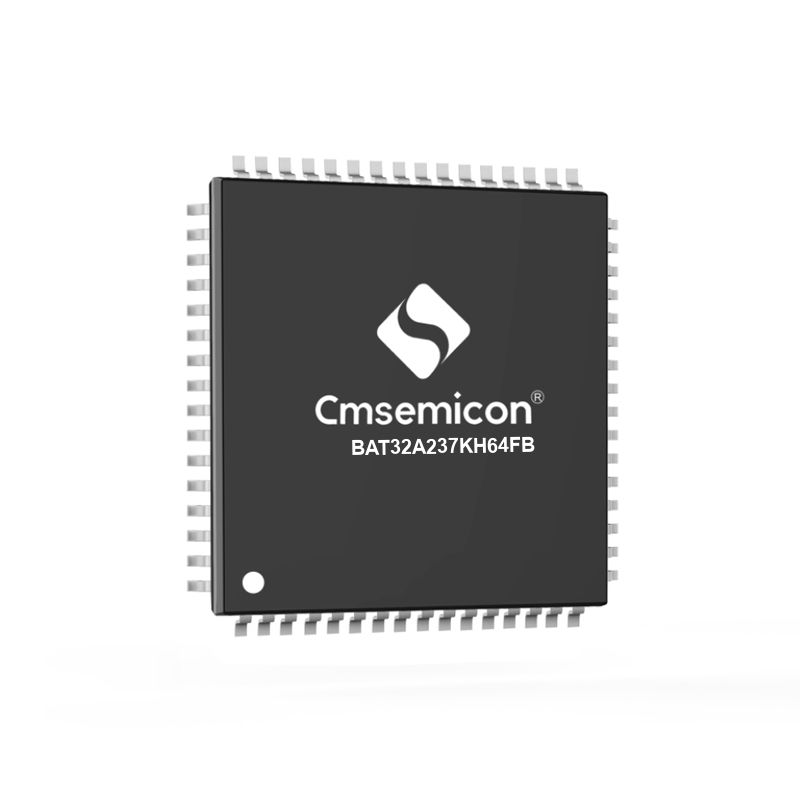

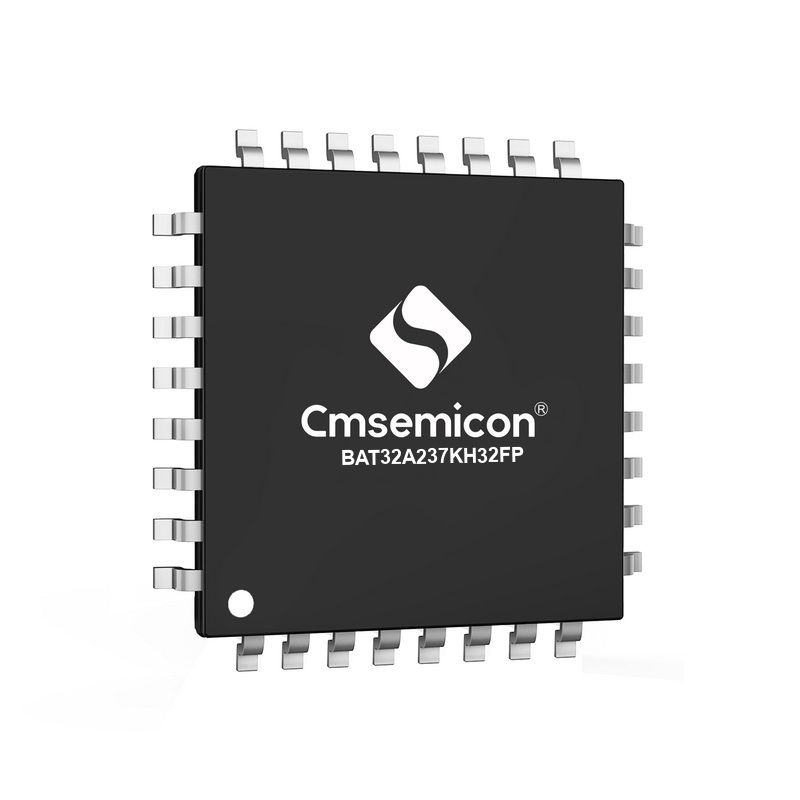

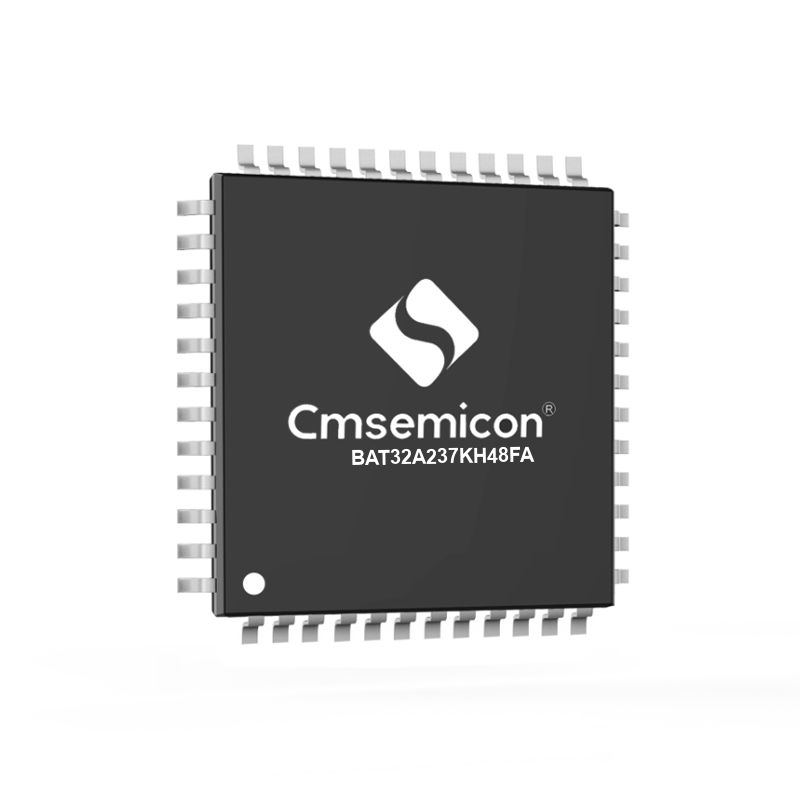

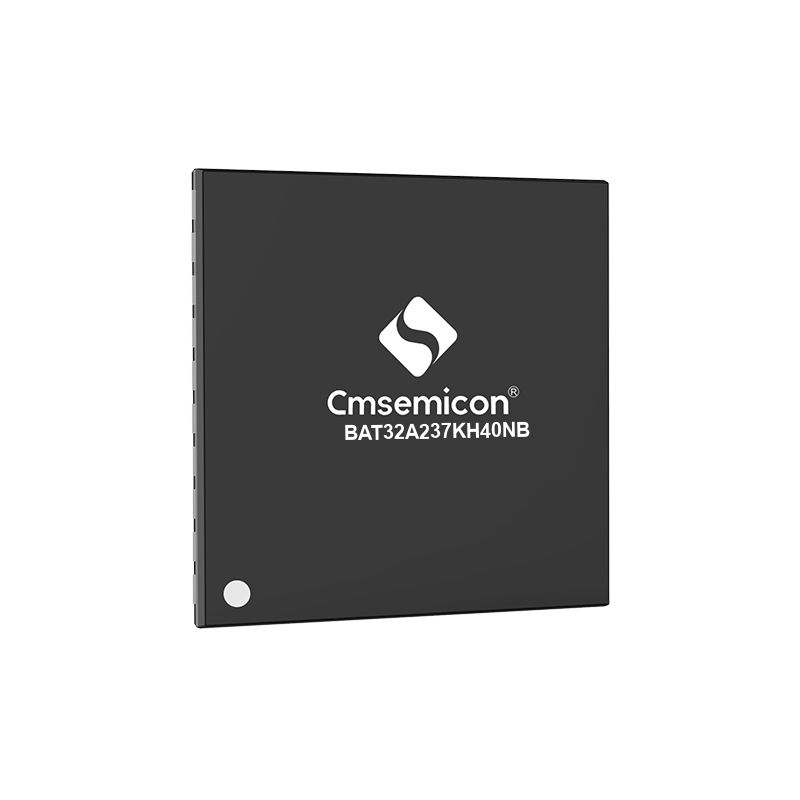

The BAT32A237 series is available in LQFP64, LQFP48, QFN40, and LQFP32 package footprints to match various design requirements.
