Product Description

The SC8F677X is an MTP chip featuring Flash 4Kx16Bit, RAM256B, a built-in RC oscillator (8MHz/16MHz), a working voltage of 1.8V-5.5V, up to 8 GPIOs, a built-in WDT, LVD, a high-precision 12-bit ADC, and 5 channels of PWM.

Key Specifications

Core & Power

RISC core architecture
Working voltage: 1.8V - 5.5V @8MHz
Working temperature: -40℃ - 85℃

Memory Configuration

4KB Flash ROM
256 Bytes General RAM
128B PRO EE

Analog & Peripherals

12-bit low-speed ADC (64Ksps sampling rate)
5-channel enhanced PWM module
2 general-purpose 8-bit timers

System & Packaging

8 general-purpose GPIOs
8-level LVD monitoring

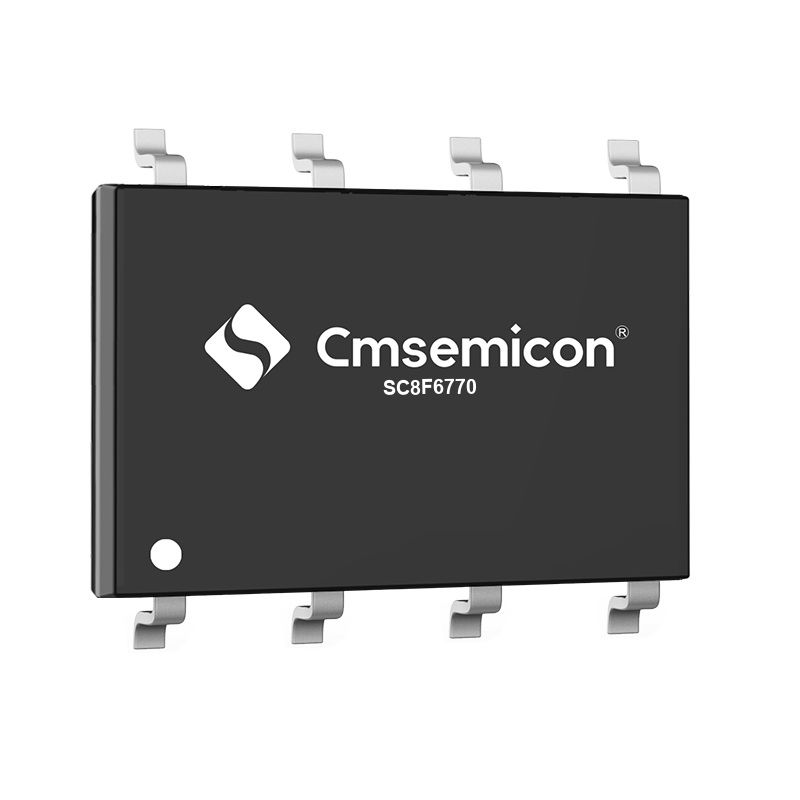

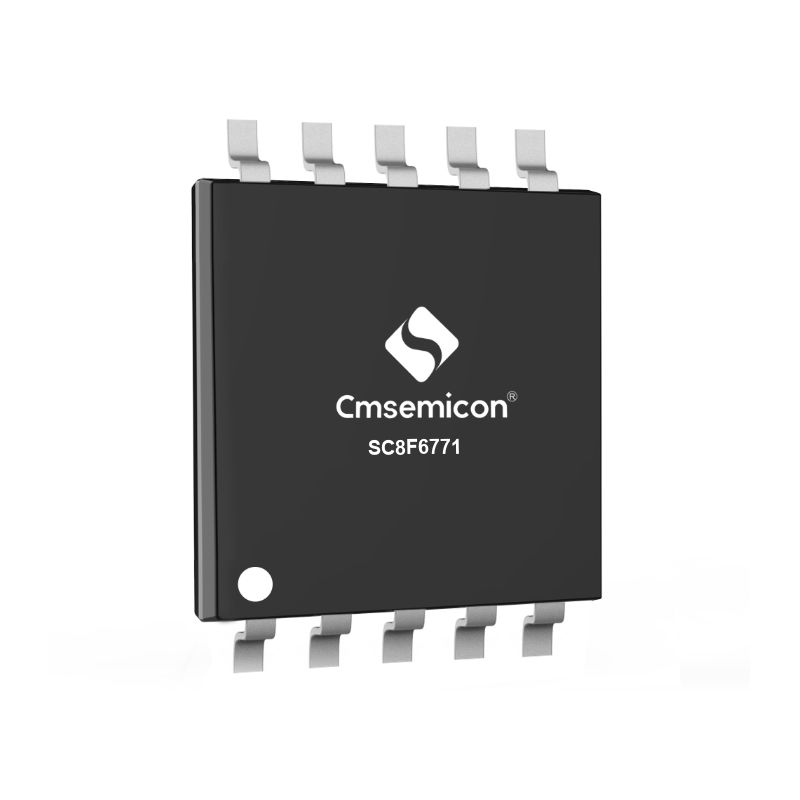

Package types: SOP8, MSOP10

Frequently Asked Questions

What is the working voltage range of the SC8F677X?

The SC8F677X operates within a voltage range of 1.8V to 5.5V at 8MHz.

What package options are available for this chip?

The SC8F677X is available in SOP8 and MSOP10 package types.

How many GPIO pins does the SC8F677X support?

This MTP chip supports up to 8 general-purpose Input/Output (GPIO) pins.

What are the memory specifications of the SC8F677X?

It features 4KB Flash ROM, 256 Bytes of General RAM, and 128B PRO EE memory.

Does the SC8F677X include a built-in ADC and PWM?

Yes, it features a built-in high-precision 12-bit low-speed ADC with a sampling rate of 64Ksps, along with a 5-channel enhanced PWM module.

What is the operating temperature range for the SC8F677X?

The chip is designed to work reliably across a temperature range of -40℃ to 85℃.
