What is the voltage and current rating of the WSD3048TDN56 MOSFET?
The WSD3048TDN56 MOSFET has a rated voltage of 40V (with a VDS breakdown specification of 30V in configuration data) and a maximum continuous current of 50A.
What is the on-resistance (RDS(ON)) of the WSD3048TDN56?
The typical RDS(ON) resistance of this MOSFET is 4.8mΩ when operated at a gate-source voltage (VGS) of 10V.

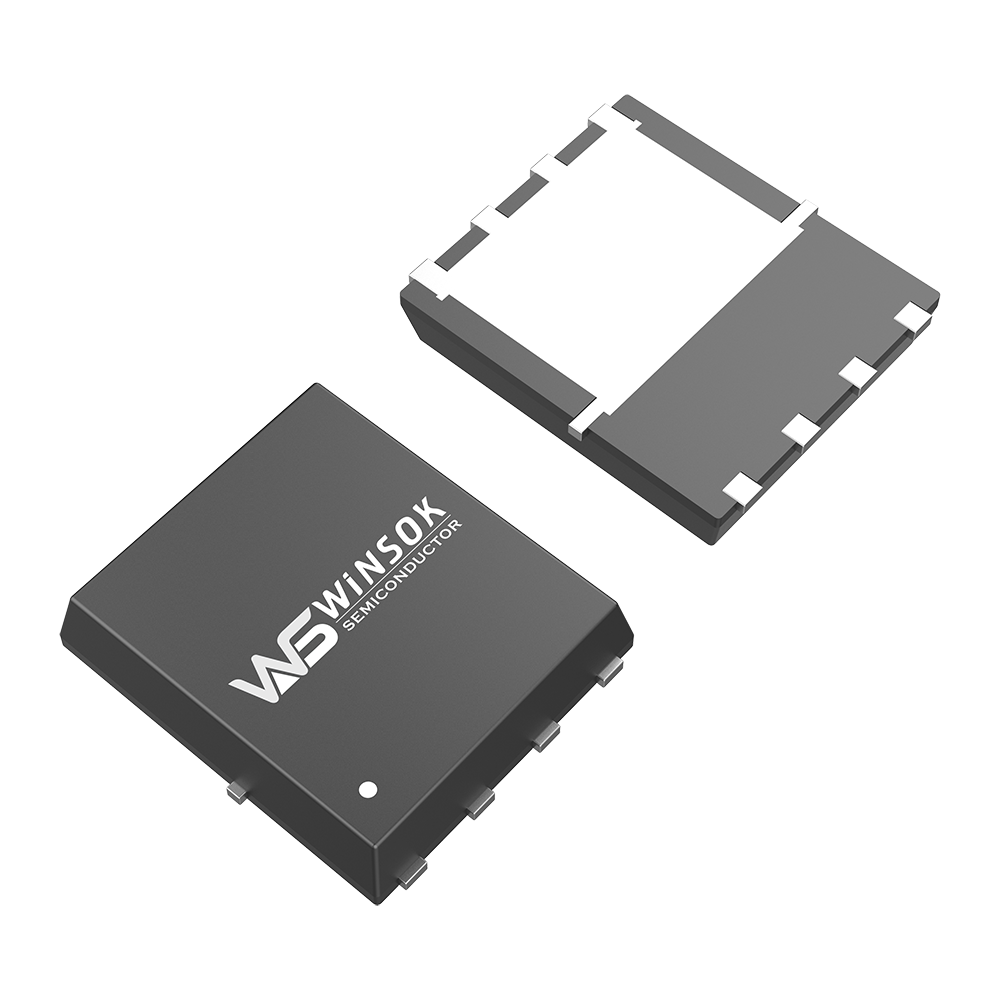

What package type does the WSD3048TDN56 use?
It is housed in a standard DFN5X6-8L package, which provides excellent thermal dissipation and layout efficiency.
What are the primary target applications for this device?
Common applications include electronic cigarettes, wireless chargers, car chargers, motor controllers, digital products, small household appliances, and various consumer electronics.
What configuration and channel type does the WSD3048TDN56 feature?
It is configured as a Dual N-Channel (Dual N-Ch) MOSFET, combining two N-channel transistors into a single package.
What is the equivalent cross-reference part number?
The POTENS PDC3806T is identified as an equivalent or related cross-reference part to WSD3048TDN56.
