What are the primary specifications of the WST2026 MOSFET?
The WST2026 MOSFET has a drain-source voltage (Vds) of 20V, a continuous drain current of 11A, and an on-state resistance (Rds_on) of 12mΩ. It features a Dual N-Channel configuration packaged in DFN2X5-6S.
What applications are best suited for these MOSFET devices?
These devices are highly optimized for automotive electronics, LED lighting systems, audio equipment, digital products, small household appliances, consumer electronics, and battery protection boards.

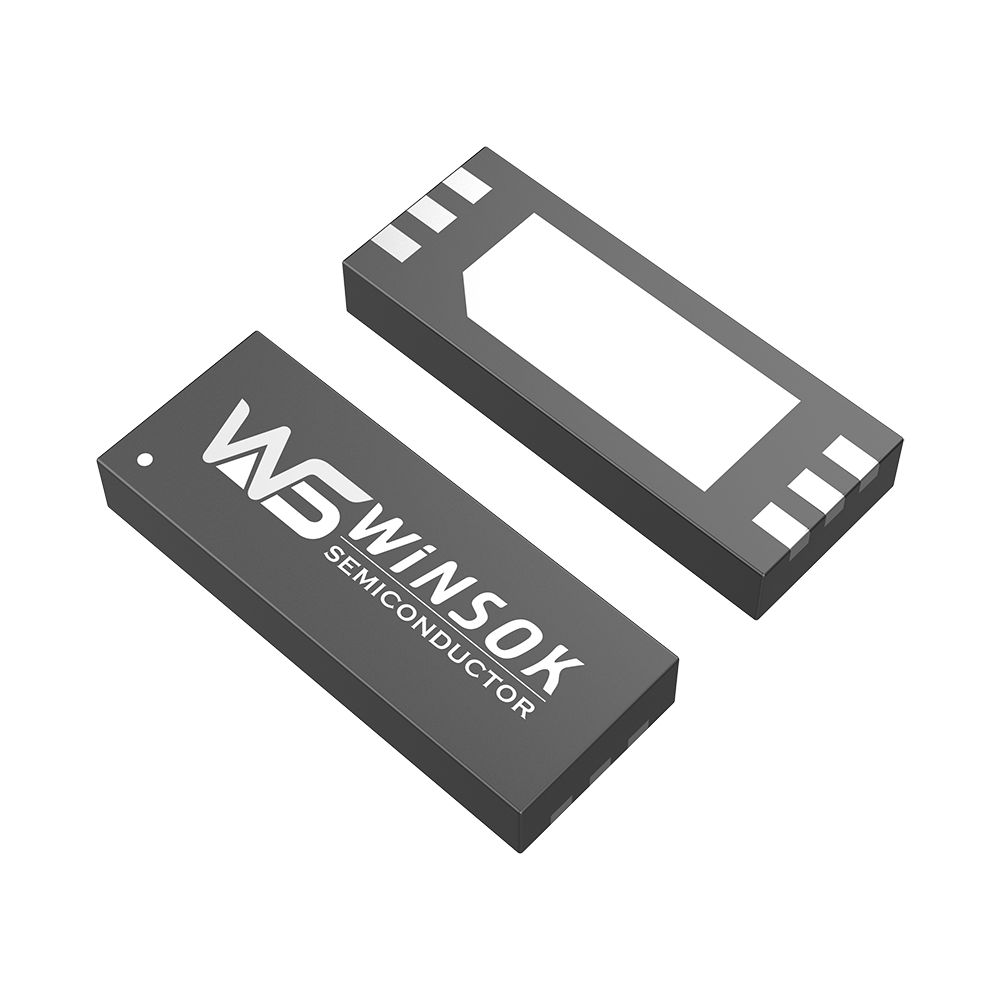

How does WSD2010DN25 compare to WSD2012DN25?
Both are 20V, 11A Dual N-Channel MOSFETs with built-in ESD protection in the DFN2X5-6S package. However, WSD2010DN25 offers slightly lower typical resistance values (6mΩ @4.5V) compared to WSD2012DN25 (7mΩ @4.5V), along with a higher input capacitance (Ciss) of 1470pF compared to 1256pF.
What does the ESD configuration in WSD2010DN25 and WSD2012DN25 provide?
The Dual+ESD configuration indicates that the N-channel gates include built-in Electrostatic Discharge (ESD) protection diodes. This enhances the system-level reliability against voltage spikes during handling and operation.
Are there cross-reference or equivalent parts available?
Yes, depending on design compatibility, equivalent or alternative models to consider include the AOS AON5816, AO5820, and AON5802BG.
