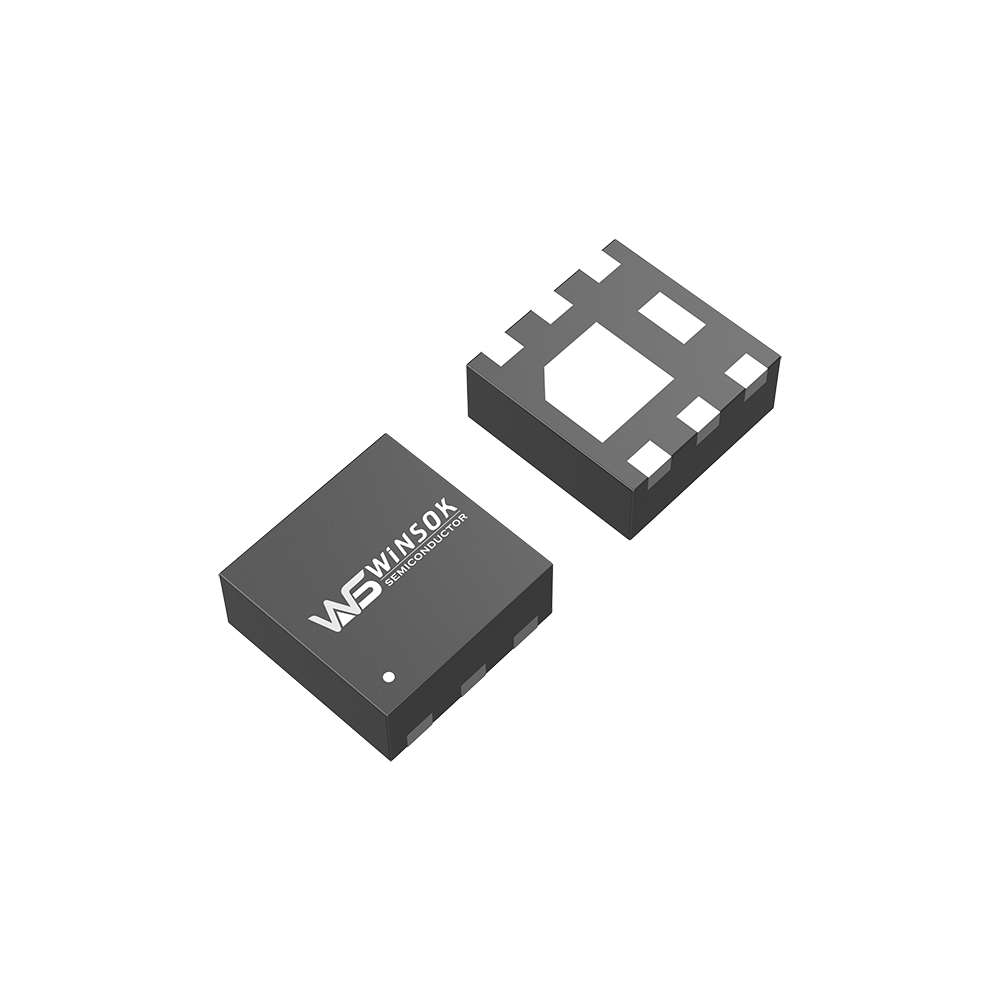

OEM WSD2065DN22 Dual P-Ch -20V -3.5A DFN2X2-6S WINSOK MOSFET Manufacturer, Manufacturers
1 / 1
OEM WSD2065DN22 Dual P-Ch -20V -3.5A DFN2X2-6S WINSOK MOSFET Manufacturer, Manufacturers

OEM WSD2065DN22 Dual P-Ch -20V -3.5A DFN2X2-6S WINSOK MOSFET Manufacturer, Manufacturers

Part Number：WSD2065DN22 BVDSS：-20V ID：-3.5A RDSON：60mΩ Channel：Dual P-Ch Package：DFN2X2-6S
Send Inquiry

Product Description

Key Specifications
Voltage
-20V
Current
-3.5A
Resistance
60mΩ
Channel Configuration
Dual P-Ch
Package
DFN2X2-6S
Applications
Automotive electronics
LED lights
Audio
Digital products
Small appliances
Consumer electronics
Protection boards
Technical Parameters Table
Part number Configuration Type VDS
(V)		 VGS
±(V)		 ID
(A)		 RDS(ON)(mΩ) Ciss
(pF)		 Package
@10V @6V @4.5V @2.5V @1.8V
Typ. Max. Typ. Max. Typ. Max. Typ. Max. Typ. Max.
WSD2065DN22 Dual P-Ch -20 8 -3.5 - - - - 60 99 75 120 105 180 420 DFN2X2-6S
Cross Reference / Equivalents
AOS AON2803 ON FAIRCHILD NTLUD3A260P Nexperia PMPB30XPE NXP PMDPB65UP PANJIT PJQ2800 NIKO PB502CW
Frequently Asked Questions (FAQ)
What are the voltage and current ratings of the WST2026 MOSFET?
The WST2026 MOSFET has a rated voltage of -20V and a continuous current capacity of -3.5A.
What channel configuration and package does this device use?
The WST2026 MOSFET is structured with a Dual P-Channel (Dual P-Ch) configuration and is housed in a compact DFN2X2-6S package.
What is the typical resistance value of the WST2026?
This MOSFET features a low typical resistance (RDS(on)) of 60mΩ, ensuring efficient power management and low power loss.
What applications is this MOSFET suitable for?
It is highly suitable for automotive electronics, LED lights, audio systems, digital products, small appliances, consumer electronics, and battery protection boards.
Are there equivalent parts or replacements for this device?
Yes, equivalent cross-references include AOS AON2803, ON/FAIRCHILD NTLUD3A260P, Nexperia PMPB30XPE, NXP PMDPB65UP, PANJIT PJQ2800, and NIKO PB502CW.
What is the input capacitance (Ciss) of WSD2065DN22?
The WSD2065DN22 features an input capacitance (Ciss) value of 420 pF.
