Q: What is the voltage and current rating of the WST2026/WSM400N06G MOSFET?
A: The device operates at a voltage rating of 60V and supports a high current capacity of up to 400A.
Q: What is the on-resistance (RDS(on)) of this N-Channel MOSFET?
A: This MOSFET features an ultra-low standard typical resistance of 1.3mΩ and a maximum resistance of 1.8mΩ at a gate-source voltage (VGS) of 10V.

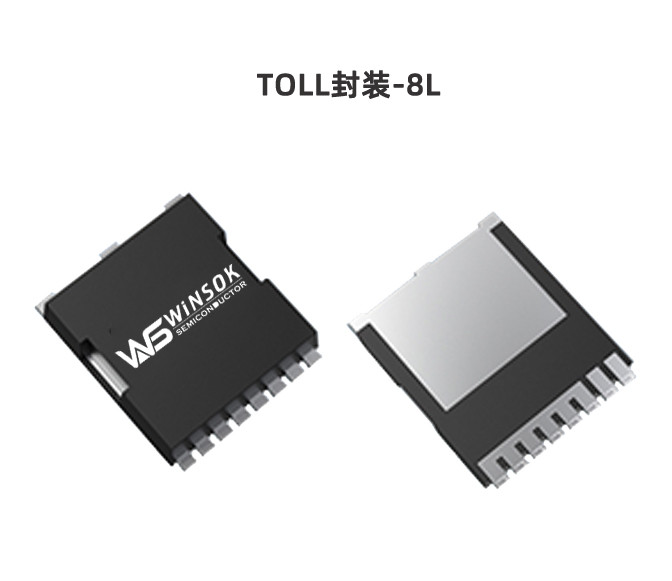

Q: In what package is the WSM400N06G MOSFET supplied?
A: It is supplied in the advanced, compact, and thermally efficient TOLLA-8L package, ideal for high-power-density designs.
Q: What is the input capacitance (Ciss) value for this component?
A: The input capacitance (Ciss) of the WSM400N06G is rated at 9200 pF, which facilitates rapid switching efficiency.
Q: Which industries or consumer devices commonly adopt this MOSFET?
A: It is widely utilized in e-cigarettes, wireless chargers, drones, medical equipment, automotive chargers, controllers, consumer digital products, and household small appliances.
