OEM WSP8205 WSP8205A Dual N-Ch 20V 6A TOLLA-8L WINSOK MOSFET Factory, Buy

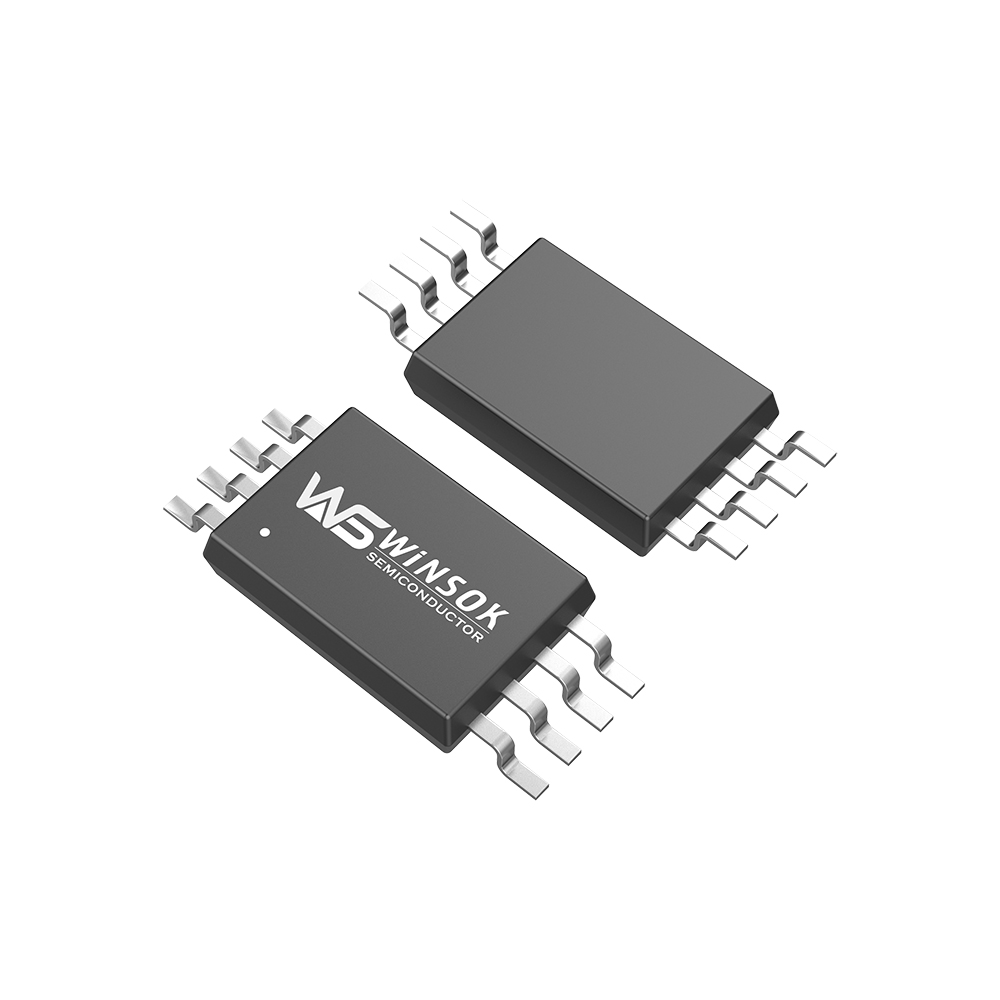

Part Number：WSP8205 WSP8205A BVDSS：20V ID：6A RDSON：20mΩ Channel：Dual N-Ch Package：TSSOP-8

Send Inquiry

Product Description

⚡ Voltage 20V

🔌 Current 6A

⚙️ Resistance 20mΩ

⛓️ Channel Dual N-Ch

📦 Package TSSOP-8

The voltage of WST2026 MOSFET is 20V, the current is 6A, the resistance is 20mΩ, the channel is Dual N-Ch, and the package is TSSOP-8.

Applications

Automotive Electronics LED Lights Audio Digital Products Small Appliances Consumer Electronics Protection Boards

Technical Specifications

Part Number	Configuration	Type	VDS	VGS	ID (A)	RDS(ON) (mΩ)						RDS(ON) (mΩ)				Ciss	Package
			VDS	VGS	ID (A)	@10V		@6V		@4.5V		@2.5V		@1.8V		Ciss
			(V)	±(V)	Max.	Typ.	Max.	Typ.	Max.	Typ.	Max.	Typ.	Max.	Typ.	Max.	(pF)
WSP8205	Dual	N-Ch	20	12	6	20	27	-	-	23	30	30	39	42	55	550	TSSOP-8L
WSP8205A	Dual	N-Ch	20	12	5.5	20	27	-	-	28	30	36	39	42	55	550	TSSOP-8L

Cross References & Equivalent Models

AOS AO8808A
VISHAY Si6968BEDQ
POTENS PMEW2520
dintek DTM8021
dintek DTM8205
ncepower NCE8205A
ncepower NCE8205B
ncepower NCE2008E*
ruichips RU8205G

Frequently Asked Questions

What are the primary specifications of the WST2026 MOSFET?

The WST2026 is a Dual N-Channel MOSFET featuring a voltage rating of 20V, a current capacity of 6A, and a low resistance of 20mΩ. It is packaged in a TSSOP-8 layout.

Which equivalent models can replace these MOSFETs?

Cross-reference and equivalent replacements include AOS AO8808A, VISHAY Si6968BEDQ, POTENS PMEW2520, dintek DTM8021 and DTM8205, ncepower NCE8205A, NCE8205B, and NCE2008E*, as well as ruichips RU8205G.

What are the common applications for WST2026 and WSP8205 series?

These components are widely used in automotive electronics, LED lights, audio equipment, digital products, small household appliances, consumer electronics, and battery protection boards.

What is the difference between WSP8205 and WSP8205A?

While both feature a Dual N-Channel configuration in a TSSOP-8L package with a 20V rating, the WSP8205 has an continuous drain current (ID) of 6A, whereas the WSP8205A has an ID of 5.5A. Additionally, their gate-source resistance profiles vary slightly at lower gate-source voltages.

What package types are available for these models?

The WST2026 comes in a TSSOP-8 package, while the WSP8205 and WSP8205A variations are housed in a TSSOP-8L package.

What is the input capacitance (Ciss) of WSP8205?

Both the WSP8205 and WSP8205A models have a typical input capacitance (Ciss) of 550 pF.
