Voltage
-20V
Current
7.5A
Resistance
12mΩ
Channel & Package
Dual N-Ch / DFN2X3-6S
Part number |
Configuration |
Type |
VDS |
VGS |
ID (A) |
RDS(ON) (mΩ) |
RDS(ON) (mΩ) |
Ciss |
Package |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
@10V |
@6V |
@4.5V |
@2.5V |
@1.8V |
|||||||||||||
(V) |
±(V) |
Max. |
Typ. |
Max. |
Typ. |
Max. |
Typ. |
Max. |
Typ. |
Max. |
Typ. |
Max. |
(pF) |
||||
WSD2068DN23 |
Dual+ESD |
N-Ch |
20 |
12 |
7.5 |
- |
- |
- |
- |
12 |
15.5 |
16 |
20 |
- |
- |
1219 |
DFN2X3-6S |
WSD2098DN23 |
Dual+ESD |
N-Ch |
20 |
12 |
9.7 |
- |
- |
- |
- |
7 |
9 |
10.5 |
13.5 |
- |
- |
1470 |
DFN2X3-6S |
ON, FAIRCHILD FDME410N27 | ST STT4P3LLH6, STL6N2VH5 | Nxperian PMPB20XNEA | TOSHIBA SSM6L61NU, SSM6N61NU | ROHM UT6MA3 | PANJIT PJQ1916 | NIKO PB6C4JU | POTENS PMEB2516Q

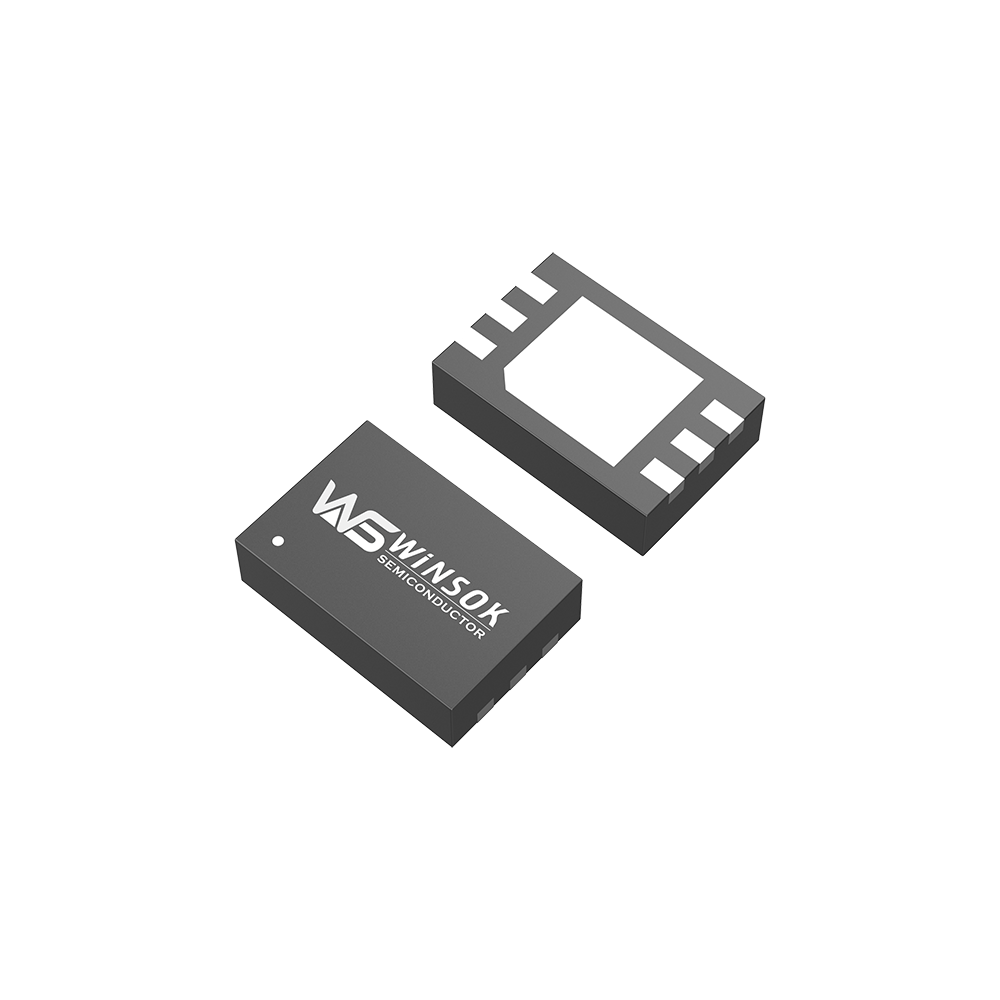

The WST2026 MOSFET functions with a voltage of -20V, a current capacity of 7.5A, and has a resistance of 12mΩ. It features a Dual N-Channel configuration housed in a DFN2X3-6S package.
They are widely applicable in automotive electronics, LED lighting systems, audio equipment, digital products, small household appliances, consumer electronics, and battery protection boards.
While both feature a Dual+ESD configuration, N-Channel design, 20V VDS, and a DFN2X3-6S package, the WSD2068DN23 has an ID of 7.5A and a Ciss of 1219pF, whereas the WSD2098DN23 handles an ID of 9.7A with a Ciss of 1470pF.
For WSD2068DN23, the RDS(ON) at @2.5V ranges from a typical 12mΩ to a maximum of 15.5mΩ, and at @1.8V it ranges from a typical 16mΩ to a maximum of 20mΩ.
Compatible cross-reference options include FDME410N27 (ON/FAIRCHILD), STT4P3LLH6 / STL6N2VH5 (ST), PMPB20XNEA (Nxperian), SSM6L61NU / SSM6N61NU (TOSHIBA), UT6MA3 (ROHM), PJQ1916 (PANJIT), PB6C4JU (NIKO), and PMEB2516Q (POTENS).
