Frequently Asked Questions (FAQ)
Q1: What are the primary technical parameters of the WINSOK WSD4076DN56 FET?
The WINSOK WSD4076DN56 is an N-channel MOSFET featuring a voltage rating (BVDSS) of 40V, a continuous current rating of 76A, and a low drain-source on-resistance of 6.9mΩ.
Q2: What package type does the WSD4076DN56 use?

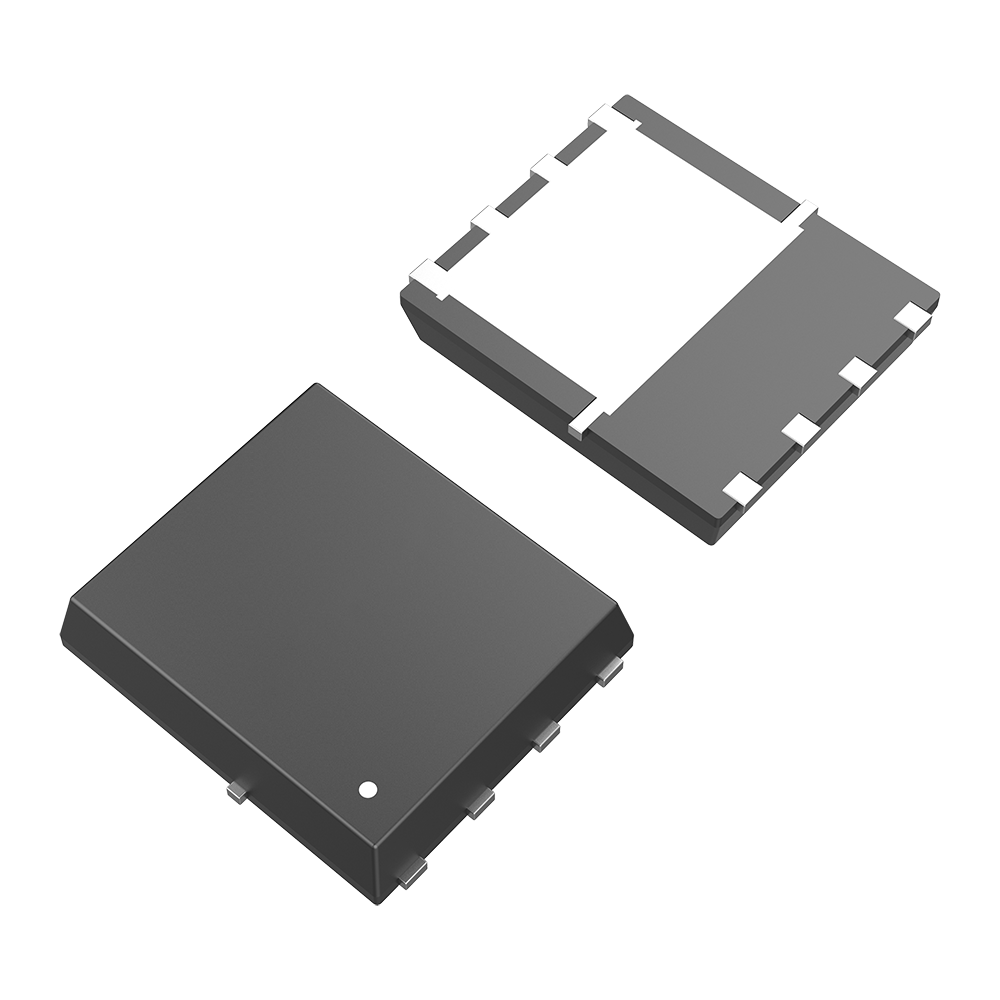

This MOSFET is housed in a compact, thermally efficient DFN5X6-8 package, which is suitable for high-density power system designs.
Q3: Which alternative MOSFET models can be replaced by the WINSOK WSD4076DN56?
The WSD4076DN56 serves as an equivalent cross-reference for STMicroelectronics (STL52DN4LF7AG, STL64DN4F7AG, STL64N4F7AG), PANJIT (PJQ5442), and POTENS Semiconductor (PDC496X).
Q4: What are the main applications for the WSD4076DN56 MOSFET?
It is widely used in power management and switching designs, specifically as a MOSFET for small appliances, handheld devices, and motor drive controllers.
Q5: Is the WSD4076DN56 an N-channel or P-channel device?
The WINSOK WSD4076DN56 is an N-channel field-effect transistor (FET).
