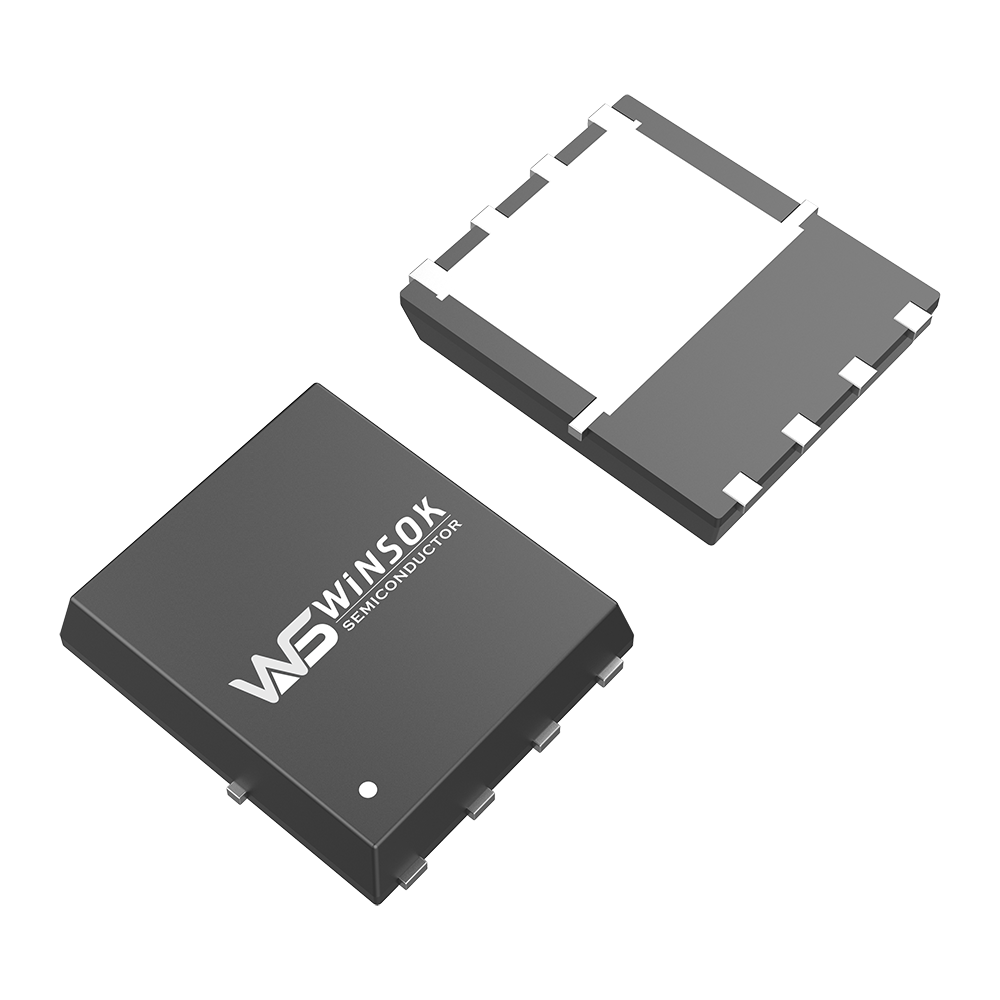

Part Number:WSD100N15DN56G BVDSS:150V ID:100A RDSON:6mΩ Channel:N-channel Package:DFN5X6-8

Product Description

The voltage of WSD100N15DN56G MOSFET is 150V, the current is 100A, the resistance is 6mΩ, the channel is N-channel, and the package is DFN5X6-8.

Voltage 150V
Current 100A
Resistance 6mΩ
Channel N-channel
Package DFN5X6-8
Applications
Medical Power Supplies MOSFET PDs MOSFET Drones MOSFET Electronic Cigarettes MOSFET Major Appliances MOSFET Power Tools MOSFET
Absolute Maximum Ratings
Symbol Parameter Rating Units
VDS Drain-Source Voltage 150 V
VGS Gate-Source Voltage ±20 V
ID Continuous Drain Current, VGS @ 10V (TC=25℃) 100 A
IDM Pulsed Drain Current 360 A
EAS Single Pulse Avalanche Energy 400 mJ
PD Total Power Dissipation (TC=25℃) 160 W
RθJA Thermal resistance, junction-ambient 62 ℃/W
RθJC Thermal resistance, junction-case 0.78 ℃/W
TSTG Storage Temperature Range -55 to 175
TJ Operating Junction Temperature Range -55 to 175
Electrical Characteristics
Symbol Parameter Conditions Min. Typ. Max. Unit
BVDSS Drain-Source Breakdown Voltage VGS=0V , ID=250uA 150 --- --- V
RDS(ON) Static Drain-Source On-Resistance2 VGS=10V , ID=20A --- 9 12
VGS(th) Gate Threshold Voltage VGS=VDS , ID=250uA 2.0 3.0 4.0 V
IDSS Drain-Source Leakage Current VDS=100V , VGS=0V , TJ=25℃ --- --- 1 uA
IGSS Gate-Source Leakage Current VGS=±20V , VDS=0V --- --- ±100 nA
Qg Total Gate Charge VDS=50V , VGS=10V , ID=20A --- 66 --- nC
Qgs Gate-Source Charge --- 26 ---
Qgd Gate-Drain Charge --- 18 ---
Td(on) Turn-On Delay Time VDD=50V , VGS=10V , RG=2Ω, ID=20A --- 37 --- ns
Tr Rise Time --- 98 ---
Td(off) Turn-Off Delay Time --- 55 ---
Tf Fall Time --- 20 ---
Ciss Input Capacitance VDS=30V , VGS=0V , f=1MHz --- 5450 --- pF
Coss Output Capacitance --- 1730 ---
Crss Reverse Transfer Capacitance --- 195 ---
Frequently Asked Questions
Q What are the main specifications of the WSD100N15DN56G MOSFET?
The WSD100N15DN56G is an N-channel MOSFET with a maximum voltage of 150V, a continuous current rating of 100A, and an on-resistance (RDS(ON)) of 6mΩ. It is housed in a DFN5X6-8 package.
Q What applications is this MOSFET suitable for?
It is designed for a variety of electronic applications, including medical power supplies, PDs (Power Delivery), drones, electronic cigarettes, major appliances, and power tools.
Q What is the operating and storage temperature range?
The operating junction temperature range (TJ) and storage temperature range (TSTG) for this device are both rated from -55℃ to 175℃.
Q What is the Gate-Source Threshold Voltage (VGS(th)) range?
The Gate Threshold Voltage ranges from a minimum of 2.0V to a maximum of 4.0V, with a typical value of 3.0V (tested under VGS=VDS, ID=250uA).
Q What is the thermal resistance of this package?
The thermal resistance from junction to case (RθJC) is 0.78 ℃/W, and the thermal resistance from junction to ambient (RθJA) is 62 ℃/W.
Q What is the typical Gate Charge (Qg) for the device?
The typical Total Gate Charge (Qg) is 66 nC under test conditions of VDS = 50V, VGS = 10V, and ID = 20A.
