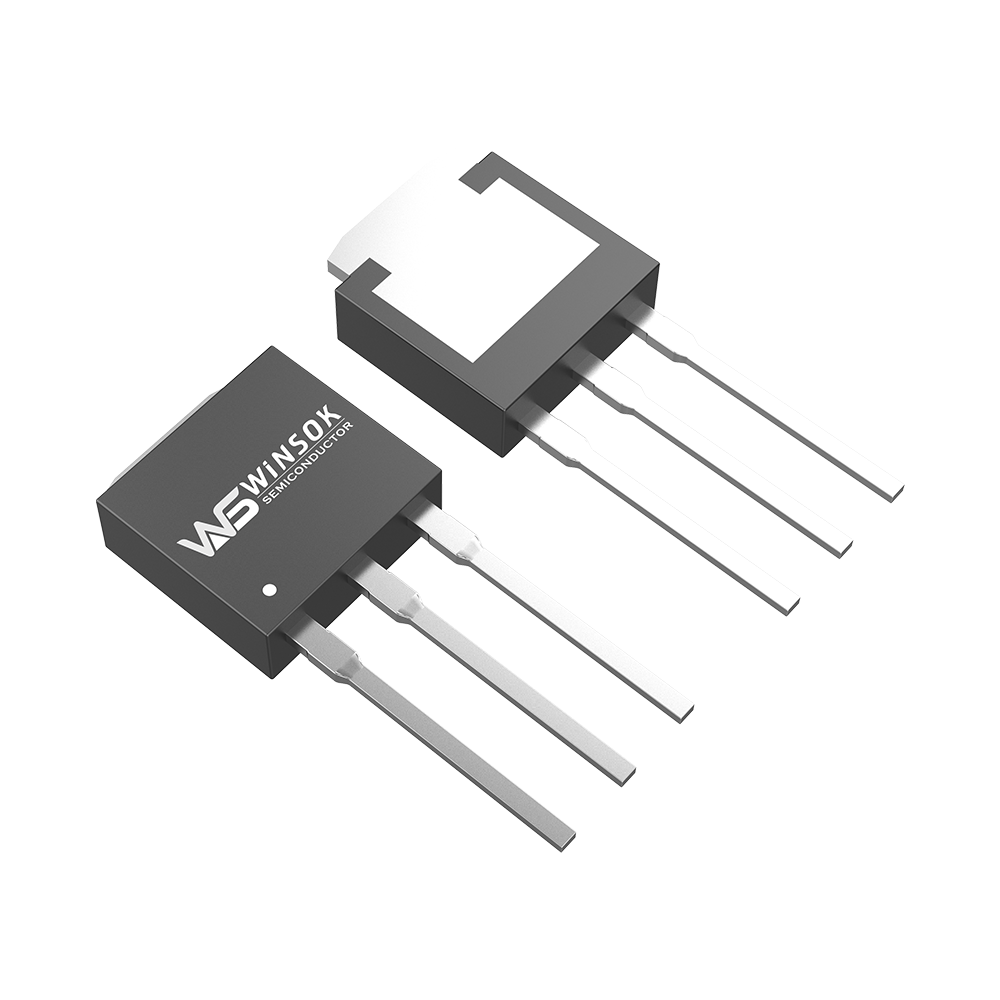

The voltage of WST2026 MOSFET is 650V, the current is 4A, the resistance is 150mΩ, the channel is N-Ch, and the package is TO-251S-3L.
Voltage
650V
Current
4A
Resistance
150mΩ
Channel
N-Ch
Package
TO-251S-3L
Applications
LED voltageAdapterIndustrial controlMedical power supply5G
Technical Specifications
Part Number
Configuration
Type
VDS (V)
VGS (±V)
ID (A)
RDS(ON) (mΩ)
Ciss (pF)
Package
@10V
@6V
@4.5V
@2.5V
@1.8V
Val
Val
Val
Max.
Typ.
Max.
Typ.
Max.
Typ.
Max.
Typ.
Max.
Typ.
Val
WSC4N65
Single
N-Ch
650
30
4
2600
3000
-
-
-
-
-
-
-
-
550
TO-251S-3L
Frequently Asked Questions
Q1: What are the main specifications of the WST2026 MOSFET?
A1: The WST2026 is an N-Channel MOSFET featuring a 650V voltage rating, 4A current capability, 150mΩ resistance, and comes in a TO-251S-3L package configuration.
Q2: What application areas is this N-Channel MOSFET designed for?
A2: This device is optimized for use in LED voltage regulation, power adapters, industrial control electronics, medical power supplies, and 5G communications infrastructure.
Q3: How does the WSC4N65 model compare in specifications?
A3: The WSC4N65 is also a single N-Channel MOSFET with a 650V rating and 4A current. It features an RDS(ON) of 2600-3000 mΩ at 10V, an input capacitance (Ciss) of 550pF, and uses the TO-251S-3L package.
Q4: What is the gate-source voltage (VGS) limit for the WSC4N65?
A4: According to the specifications, the WSC4N65 supports a gate-to-source voltage (VGS) of ±30V.
Q5: What is the configuration and package type for these MOSFETs?
A5: They are configured as Single N-Channel MOSFETs packaged in a TO-251S-3L layout, which provides reliable heat dissipation and integration.
