Product Description

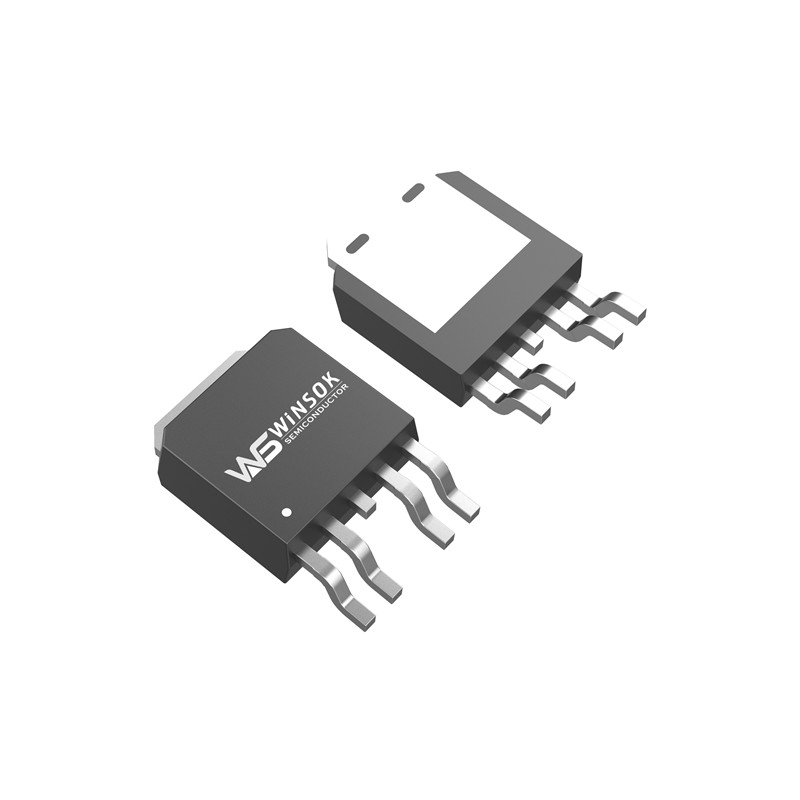

The WSF6012 MOSFET is a high-performance device with a high cell density design. It provides excellent RDSON and gate charge suitable for most synchronous buck converter applications. Additionally, it meets RoHS and Green Product requirements, and comes with 100% EAS guarantee for full functionality and reliability.

Key Features & Performance Options

Advanced Trench Technology with High Cell Density
Super Low Gate Charge
Excellent CdV/dt Effect Decline
100% EAS Guarantee for Full Reliability
Environmentally-Friendly Device Options (RoHS & Green Compliant)
Cross-Reference / Equivalent Standard: AOS AOD603A

Absolute Maximum Ratings

Symbol Parameter Rating Units
N-Channel P-Channel
VDS Drain-Source Voltage 60 -60 V
VGS Gate-Source Voltage ±20 ±20 V
ID @ TC=25℃ Continuous Drain Current, VGS @ 10V¹ 20 -15 A
ID @ TC=70℃ Continuous Drain Current, VGS @ 10V¹ 15 -10 A
IDM Pulsed Drain Current² 46 -36 A
EAS Single Pulse Avalanche Energy³ 200 180 mJ
IAS Avalanche Current 59 -50 A
PD @ TC=25℃ Total Power Dissipation⁴ 34.7 34.7 W
TSTG Storage Temperature Range -55 to 150 -55 to 150
TJ Operating Junction Temperature Range -55 to 150 -55 to 150

Electrical Characteristics

Symbol Parameter Conditions Min. Typ. Max. Unit
BVDSS Drain-Source Breakdown Voltage VGS = 0V, ID = 250uA 60 --- --- V
△BVDSS/△TJ BVDSS Temperature Coefficient Reference to 25℃, ID = 1mA --- 0.063 --- V/℃
RDS(ON) Static Drain-Source On-Resistance² VGS = 10V, ID = 8A --- 28 37
VGS = 4.5V, ID = 5A --- 37 45
VGS(th) Gate Threshold Voltage VGS = VDS, ID = 250uA 1 --- 2.5 V
△VGS(th) VGS(th) Temperature Coefficient --- -5.24 --- mV/℃
IDSS Drain-Source Leakage Current VDS = 48V, VGS = 0V, TJ = 25℃ --- --- 1 uA
VDS = 48V, VGS = 0V, TJ = 55℃ --- --- 5
IGSS Gate-Source Leakage Current VGS = ±20V, VDS = 0V --- --- ±100 nA
gfs Forward Transconductance VDS = 5V, ID = 8A --- 21 --- S
Rg Gate Resistance VDS = 0V, VGS = 0V, f = 1MHz --- 3.0 4.5 Ω
Qg Total Gate Charge (4.5V) VDS = 48V, VGS = 4.5V, ID = 8A --- 12.6 20 nC
Qgs Gate-Source Charge --- 3.5 ---
Qgd Gate-Drain Charge --- 6.3 ---
Td(on) Turn-On Delay Time VDD = 30V, VGS = 4.5V,
RG = 3.3Ω, ID = 1A
--- 8 --- ns
Tr Rise Time --- 14.2 ---
Td(off) Turn-Off Delay Time --- 24.6 ---
Tf Fall Time --- 4.6 ---
Ciss Input Capacitance VDS = 15V, VGS = 0V, f = 1MHz --- 670 --- pF
Coss Output Capacitance --- 70 ---
Crss Reverse Transfer Capacitance --- 35 ---

Key Application Areas

High Frequency Point-of-Load Synchronous Buck Converter Networking DC-DC Power System Load Switch E-cigarettes Wireless Charging Motors Emergency Power Supplies Drones Healthcare Car Chargers Controllers Digital Devices Small Home Appliances Consumer Electronics

Frequently Asked Questions (FAQ)

What are the core technologies used in the WSF6012 MOSFET?
The WSF6012 MOSFET utilizes Advanced Trench Technology designed with a high cell density. This structure allows for a super low gate charge and minimizes the CdV/dt effect decline.
Is the WSF6012 MOSFET environmentally certified?
Yes, the WSF6012 meets all RoHS and Green Product requirements, offering environmentally-friendly option configurations for modern electronic setups.
What is the EAS guarantee rating of this device?
It provides a 100% Single Pulse Avalanche Energy (EAS) guarantee. The rated EAS limit is 200 mJ for N-Channel configurations and 180 mJ for P-Channel configurations.
What is the typical static drain-source on-resistance (RDS(ON))?
At VGS = 10V and ID = 8A, the typical RDS(ON) is 28 mΩ. When operating under VGS = 4.5V and ID = 5A, the typical RDS(ON) is 37 mΩ.
What are the operating and storage temperature limits?
Both the Operating Junction Temperature Range (TJ) and the Storage Temperature Range (TSTG) span from -55 to 150 ℃.
What is the equivalent cross-reference part number for this device?
The WSF6012 is comparable to the AOS AOD603A device in parameter design and function.
