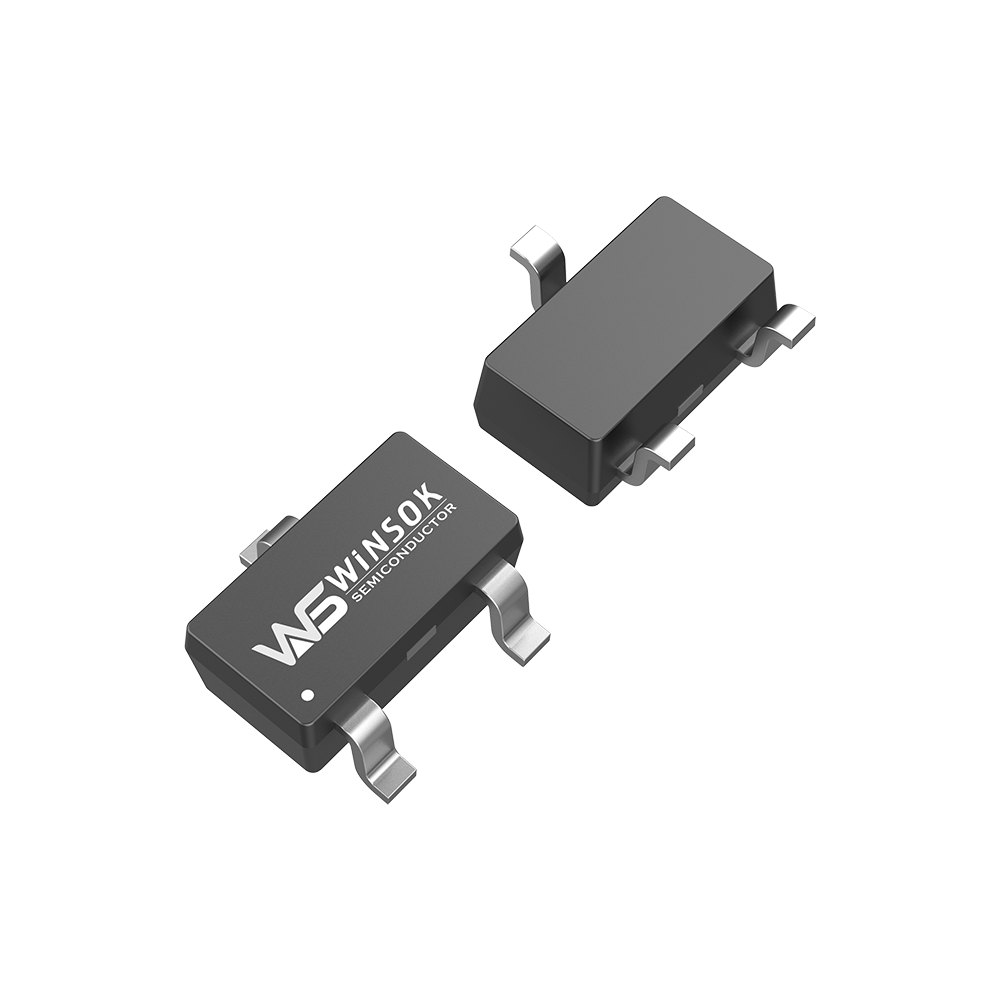

China WST02N20B N-channel 200V 1.2A SOT-23-3L WINSOK MOSFET Distributors, Buy

Part Number：WST02N20B BVDSS：200V ID：1.2A RDSON：680mΩ Channel：N-channel Package：SOT-23-3L

Send Inquiry

Product Description

WST02N20B N-Channel MOSFET

The WST02N20B is a high-performance N-channel MOSFET designed for reliable power management and switching applications. Boasting a 200V drain-to-source voltage and package convenience in SOT-23-3L, it delivers efficiency across diverse operating conditions.

Voltage: 200V Current: 1.2A Package: SOT-23-3L

Key Specifications

Channel Type N-Channel

Vds (Voltage) 200V

Id (Current) 1.2A

Rds(on) Resistance 680mΩ

Package SOT-23-3L

Applications

🚗

Car Electronics

💡

LED Lights

🔊

Audio

📱

Digital Products

🔌

Small Appliances

💻

Consumer Electronics

Detailed Specifications Table

Part number	Configuration	Type	VDS (V)	VGS ±(V)	ID (A)	RDS(ON)(mΩ) Max. / Typ.						RDS(ON)(mΩ) Max. / Typ.				Ciss (pF)	Package
			VDS (V)	VGS ±(V)	ID (A)	@10V		@6V		@4.5V		@2.5V		@1.8V		Ciss (pF)
			Typ.	Max.	Typ.	Max.	Typ.	Max.	Typ.	Max.	Typ.	Max.	Typ.	Max.	Typ.	Max.		Value
WST02N20B	Single	N-Ch	200	25	1.2	680	850	-	-	-	-	-	-	-	-	280	SOT-23-3L

Frequently Asked Questions

What are the primary specifications of the WST02N20B MOSFET?

The WST02N20B is an N-channel MOSFET with a drain-to-source voltage (VDS) of 200V, a continuous drain current (ID) of 1.2A, and an on-resistance (RDS(ON)) of 680mΩ (typical) at 10V.

What package type does the WST02N20B use?

The WST02N20B MOSFET is housed in a compact SOT-23-3L package, making it highly suitable for space-constrained designs.

What are the typical applications for the WST02N20B MOSFET?

This MOSFET is widely used in automotive electronics, LED lighting systems, audio equipment, digital devices, small household appliances, and other consumer electronics.

What is the gate-source voltage (VGS) rating of this device?

The WST02N20B features a maximum gate-source voltage rating of ±25V, ensuring reliable switching operation.

What is the input capacitance (Ciss) value of WST02N20B?

The input capacitance (Ciss) for the WST02N20B MOSFET is typically 280 pF, which helps in efficient and fast switching operations.
