Product Overview

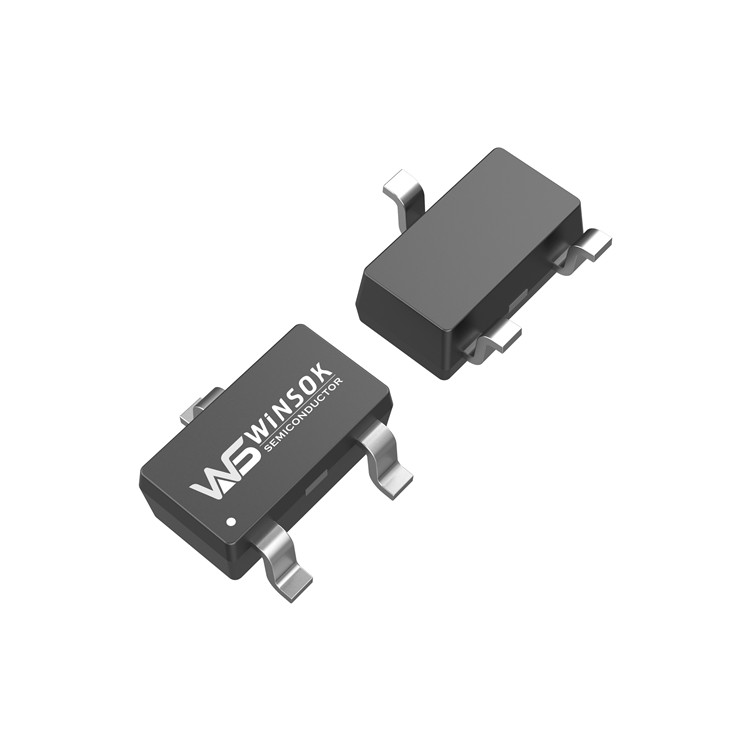

The WST2088 MOSFETs are the most advanced N-channel transistors on the market. They have an incredibly high cell density, which results in excellent RDSON and gate charge. These MOSFETs are perfect for small power switching and load switch applications. They meet RoHS and Green Product requirements and have been fully tested for reliability.
| Symbol | Parameter | Rating | Units |
|---|---|---|---|
| VDS | Drain-Source Voltage | 20 | V |
| VGS | Gate-Source Voltage | ±12 | V |
| ID@Tc=25℃ | Continuous Drain Current, VGS @ 4.5V | 8.8 | A |
| ID@Tc=70℃ | Continuous Drain Current, VGS @ 4.5V | 6.2 | A |
| IDP | Pulsed Drain Current | 40 | A |
| PD@TA=25℃ | Total Power Dissipation | 1.5 | W |
| TSTG | Storage Temperature Range | -55 to 150 | ℃ |
| TJ | Operating Junction Temperature Range | -55 to 150 | ℃ |
| Symbol | Parameter | Conditions | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|---|
| BVDSS | Drain-Source Breakdown Voltage | VGS=0V, ID=250uA | 20 | --- | --- | V |
| △BVDSS/△TJ | BVDSS Temperature Coefficient | Reference to 25℃, ID=1mA | --- | 0.018 | --- | V/℃ |
| RDS(ON) | Static Drain-Source On-Resistance2 | VGS=4.5V, ID=6A | --- | 8 | 13 | mΩ |
| VGS=2.5V, ID=5A | --- | 10 | 19 | |||
| VGS(th) | Gate Threshold Voltage | VGS=VDS, ID=250uA | 0.5 | --- | 1.3 | V |
| IDSS | Drain-Source Leakage Current | VDS=16V, VGS=0V | --- | --- | 10 | uA |
| IGSS | Gate-Source Leakage Current | VGS=±12V, VDS=0V | --- | --- | ±100 | nA |
| Qg | Total Gate Charge | VDS=15V, VGS=4.5V, ID=6A | --- | 16 | --- | nC |
| Qgs | Gate-Source Charge | --- | 3 | --- | ||
| Qgd | Gate-Drain Charge | --- | 4.5 | --- | ||
| Td(on) | Turn-On Delay Time | VDS=10V, VGS=4.5V, RG=3.3Ω, ID=1A | --- | 10 | --- | ns |
| Tr | Rise Time | --- | 13 | --- | ||
| Td(off) | Turn-Off Delay Time | --- | 28 | --- | ||
| Tf | Fall Time | --- | 7 | --- | ||
| Ciss | Input Capacitance | VDS=15V, VGS=0V, f=1MHz | --- | 1400 | --- | pF |
| Coss | Output Capacitance | --- | 170 | --- | ||
| Crss | Reverse Transfer Capacitance | --- | 135 | --- |
