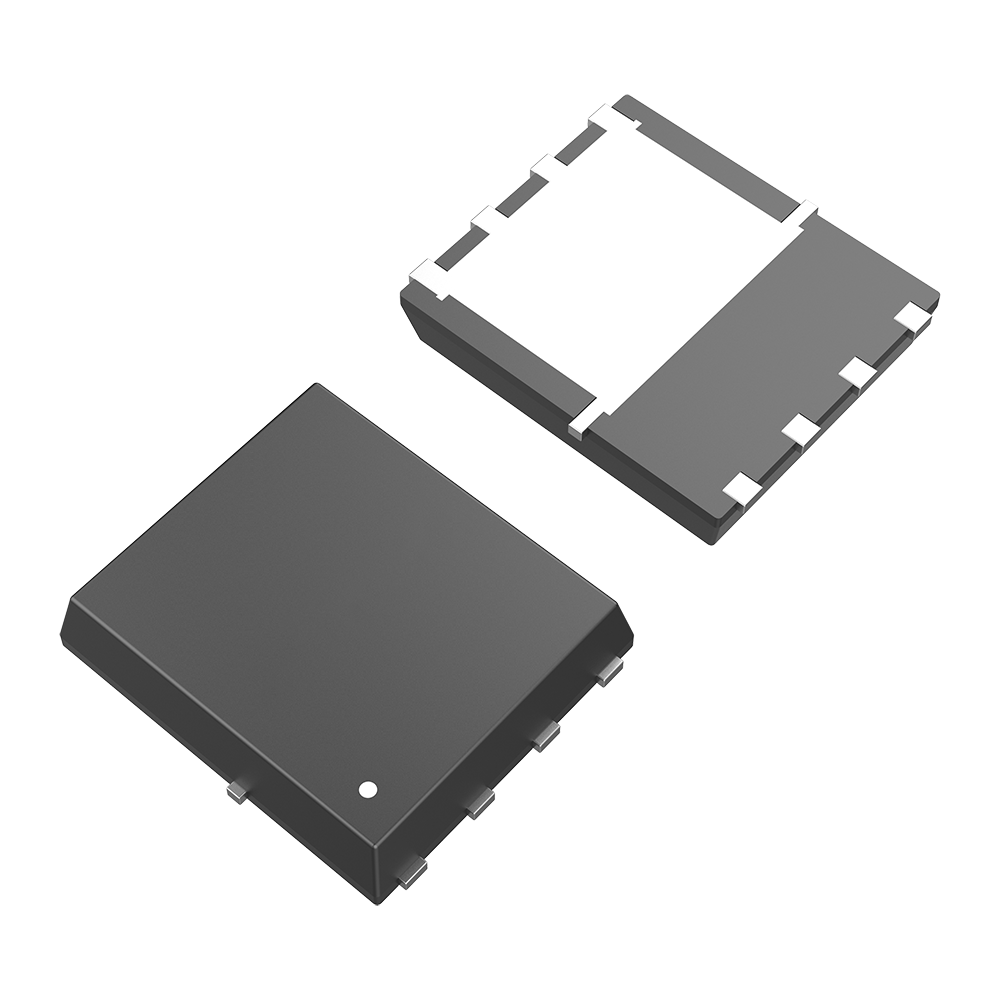

The voltage of WSD4080DN56 MOSFET is 40V, the current is 85A, the resistance is 4.5mΩ, the channel is N-channel, and the package is DFN5X6-8.
Small appliances MOSFET
Handheld appliances MOSFET
Motors MOSFET
Frequently Asked Questions
Q What are the key specifications of the WSD4080DN56 MOSFET?
The WSD4080DN56 MOSFET features a voltage of 40V, a continuous current of 85A, a typical static drain-source on-resistance of 4.5mΩ (at VGS=10V), N-channel configuration, and comes in a DFN5X6-8 package.
Q What are the typical applications for this MOSFET?
It is commonly applied in small appliances, handheld appliances, and motor drive systems.
Q What is the operating temperature range for WSD4080DN56?
Both the operating junction temperature range (TJ) and storage temperature range (TSTG) are -55 to 150 ℃.
Q Which other MOSFET models can cross-reference with WSD4080DN56?
Cross-reference models include AOS AON623, STMicroelectronics STL52DN4LF7AG / STL64DN4F7AG / STL64N4F7AG, PANJIT PJQ5442, and POTENS Semiconductor PDC496X.
Q What is the gate threshold voltage (VGS(th)) range?
The gate threshold voltage ranges from a minimum of 1.0V to a maximum of 2.5V when tested under VGS=VDS and ID=250uA.
Q What is the total gate charge (Qg) of this device?
The typical total gate charge is 20nC under test conditions of VDS=20V, VGS=4.5V, and ID=10A.
