❓Frequently Asked Questions (FAQ)
What are the primary specifications of the WSF30P06 MOSFET?
The WSF30P06 is a P-channel MOSFET featuring a voltage rating of -60V, a continuous current capacity of -23.5A, and a low resistance of 38mΩ, housed in a TO-252-2L package.
Which electronic devices commonly use the WSF30P06?
This P-channel MOSFET is widely used in electronic cigarettes, wireless chargers, electric motors, emergency power systems, medical equipment, drones, controllers, car chargers, and various consumer electronics.
What are the equivalent replacement models for WSF30P06?
It can be replaced by equivalents such as AOS AOD409 and AOD409G, VISHAY SUD19P06, TOSHIBA TJ20S04M3L, NIKO P3506ED, POTENS PDD6903, and NCEPOWER NCE60P25K.

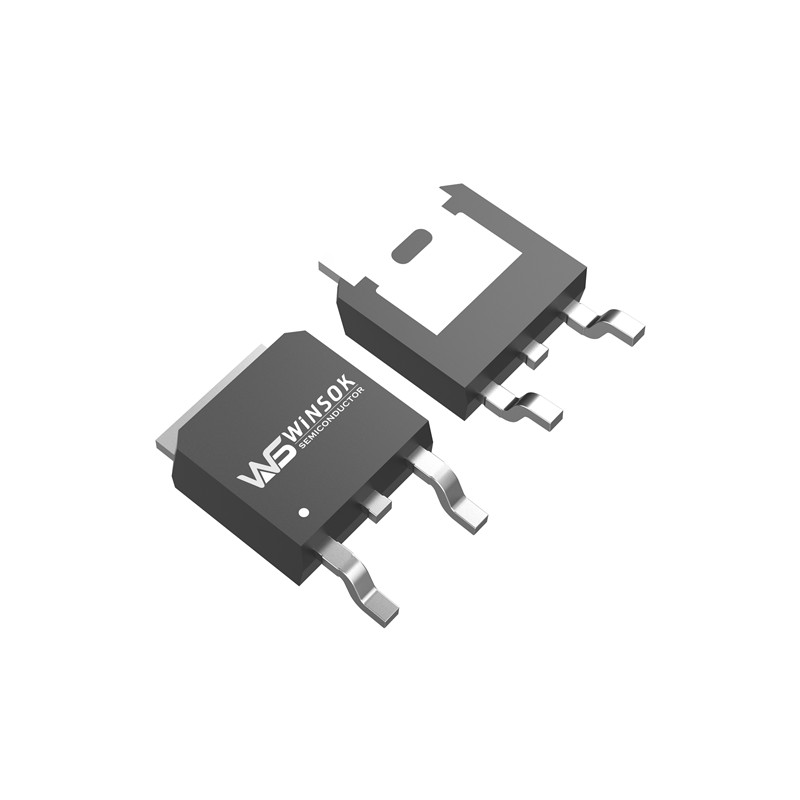

What package style does the WSF30P06 use?
The device utilizes the TO-252-2L package (commonly known as DPAK), which is well-suited for surface-mount applications with demanding thermal dissipation requirements.
What is the gate-source voltage (VGS) and Ciss rating of this MOSFET?
The WSF30P06 MOSFET features a gate-source voltage rating of ±20V and an input capacitance (Ciss) value of 2980 pF.
