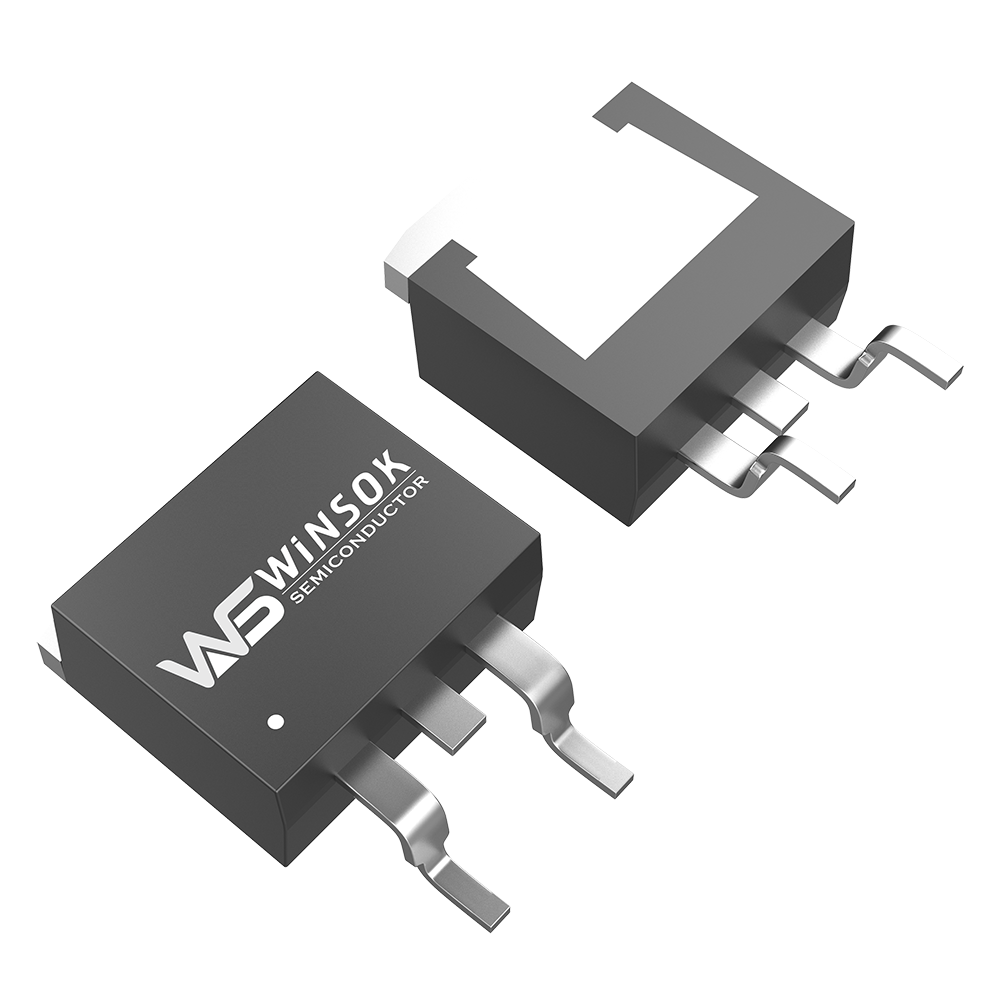

The voltage of WST2026 MOSFET is -100V, the current is -78A, the resistance is 19mΩ, the channel is P-Ch, and the package is TO-263-2L.
Voltage
-100V
Current
-78A
Resistance
19mΩ
Channel & Pkg
P-Ch / TO-263
Applications
Automotive electronics
POE
LED lights
Audio
Digital products
Small appliances
Consumer electronics
Protection boards
Technical Specifications
Part Number
Configuration
Type
VDS (V)
VGS (±V)
ID (A)
RDS(ON) (mΩ)
Ciss (pF)
Package
@ 10V
@ 6V
@ 4.5V
@ 2.5V
@ 1.8V
Max.
Typ.
Max.
Typ.
Max.
Typ.
Max.
Typ.
Max.
Typ.
WSK78P10
Single
P-Ch
-100
20
-78
19
25
-
-
25
30
-
-
-
-
4230
TO-263-2L
Frequently Asked Questions
Q
What are the core electrical ratings of the WST2026/WSK78P10 MOSFET?
The WST2026/WSK78P10 features a drain-to-source voltage (VDS) of -100V, a continuous drain current (ID) of -78A, and an on-resistance (RDS(ON)) of 19mΩ max @ 10V.
Q
What configuration and channel type does the WSK78P10 use?
It is designed as a Single P-channel (P-Ch) MOSFET.
Q
What is the packaging style of the WST2026/WSK78P10 MOSFET?
This MOSFET is supplied in a industry-standard TO-263-2L package, optimized for thermal efficiency.
Q
What is the gate-source voltage (VGS) and typical input capacitance (Ciss)?
The gate-source voltage (VGS) rating is ±20V, and it features a typical input capacitance (Ciss) of 4230 pF.
Q
What are the primary applications of this MOSFET?
It is widely used in automotive electronics, Power over Ethernet (POE), LED lighting systems, audio equipment, digital devices, small home appliances, general consumer electronics, and battery protection boards.
Q
How does the on-resistance (RDS(ON)) behave at different gate voltages?
At a gate voltage of 10V, the maximum on-resistance is 19mΩ (typical 25mΩ). When operated at 4.5V, the maximum on-resistance is 25mΩ (typical 30mΩ).
