Technical Specifications
Part Number
Configuration
Type
VDS
VGS
ID (A)
RDS(ON)(mΩ)
RDS(ON)(mΩ)
Ciss
Package
(V)
±(V)
Max.
@10V
@6V
@4.5V
@2.5V
@1.8V
(pF)
Typ.
Max.
Typ.
Max.
Typ.
Max.
Typ.
Max.
Typ.
Max.
WSR3710
Single
N-Ch
100
20
60
14
18
-
-
-
-
-
-
-
-
1910
TO-220-3L
WSR80N10D
Single
N-Ch
100
20
60
9
10
-
-
12
14
-
-
-
-
1999
TO-220-3L
Cross Reference & Replacement Part Numbers
AOS AOT412
AOS AOT296L
ON/FAIRCHILD FDPF045N10A
VISHAY SUA70060E
Nexperia PSMN013-100PS
INFINEON/IR IPA045N10N3 G
INFINEON/IR IPP126N10N3 G
INFINEON/IR IPP16CN10N G
IR IRF540NPBF
TOSHIBA TK4R1A10PL
ST STP14NF10
ST STP45N10F7
NIKO P0610BTF
NIKO P1010AT
POTENS PDP0966
Frequently Asked Questions (FAQ)
Q1: What are the voltage and current ratings for the WSR3710 and WSR80N10D MOSFETs?
Both models feature a Drain-to-Source Voltage (VDS) of 100V and a continuous Drain Current (ID) of 60A.
Q2: What is the typical on-resistance (RDS(ON)) of these MOSFETs?
At 10V VGS, the WSR3710 has a typical RDS(ON) of 14mΩ (max 18mΩ), while the WSR80N10D offers a typical RDS(ON) of 9mΩ (max 10mΩ).

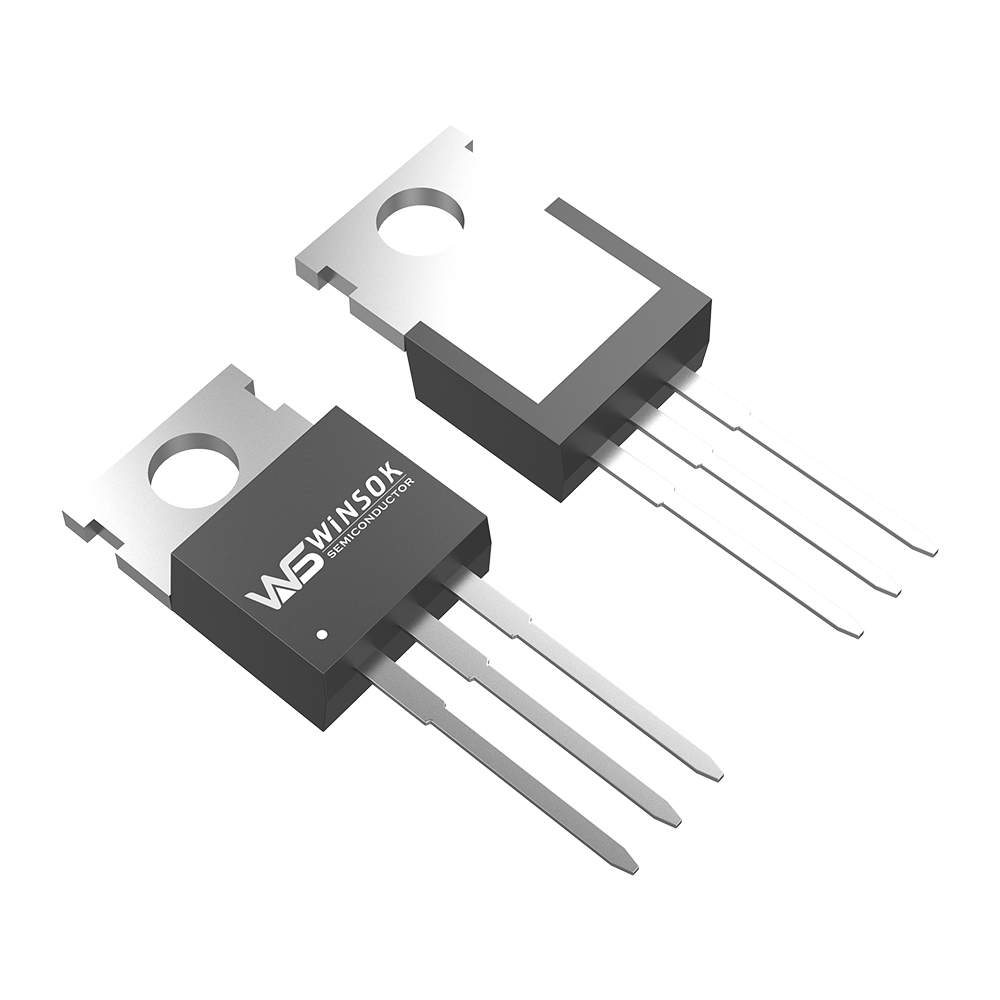

Q3: What type of packaging do the WSR3710 and WSR80N10D use?
Both MOSFETs are supplied in a standard TO-220-3L package, which is designed for robust thermal management and standard through-hole mounting.
Q4: In what typical applications are these devices deployed?
They are commonly used in motor control, battery management systems (BMS), wireless chargers, emergency power supplies, drones, medical equipment, car chargers, controllers, 3D printers, consumer electronics, and smart small appliances.
Q5: Can these MOSFETs replace parts from other manufacturers?
Yes, they are compatible alternatives to various industry parts such as AOS AOT412, Fairchild FDPF045N10A, Vishay SUA70060E, Nexperia PSMN013-100PS, Infineon/IR IRF540NPBF, Toshiba TK4R1A10PL, and ST STP14NF10.
