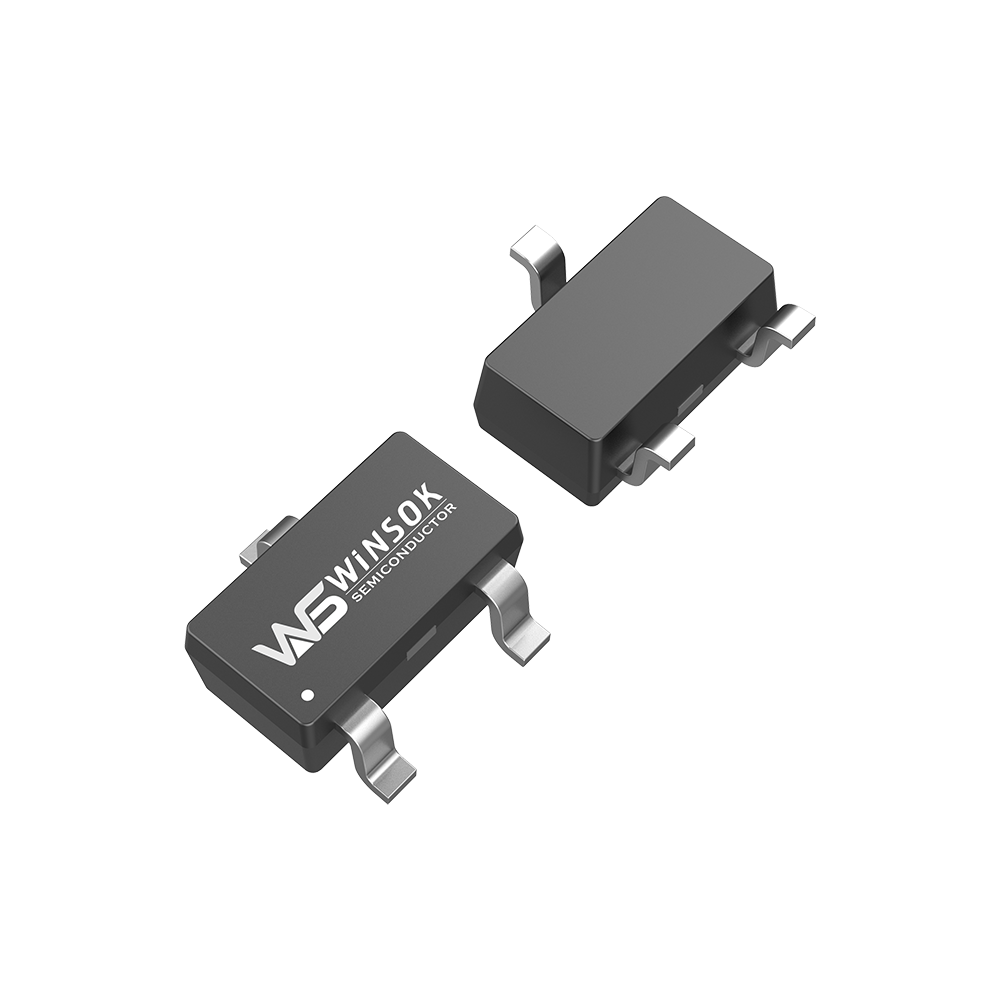

The voltage of WST3400D WST3400A WST3400 MOSFET is 30V, the current is 7A, the resistance is 18mΩ, the channel is N-channel, and the package is SOT-23-3L.
| Part number | Configuration | Type | VDS (V) |
VGS ±(V) |
ID (A) | RDS(ON)(mΩ) | RDS(ON)(mΩ) | Ciss (pF) |
Package | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| @10V | @6V | @4.5V | @2.5V | @1.8V | |||||||||||||
| Val | Tol | Typ. | Max. | Typ. | Max. | Typ. | Max. | Typ. | Max. | Typ. | Max. | Val | |||||
| WST3400D | Single | N-Ch | 20 | 12 | 3.2 | - | - | - | - | 45 | 55 | 55 | 65 | 70 | 90 | 382 | SOT-23-3L |
| WST3400A | Single | N-Ch | 30 | 12 | 6.4 | - | - | - | - | 20 | 31 | 28 | 46 | - | - | 520 | SOT-23-3L |
| WST3400 | Single | N-Ch | 30 | 12 | 7 | - | - | - | - | 18 | 28 | 24 | 38 | - | - | 572 | SOT-23-3L |
