Voltage
20V
Current
5.3A
Resistance
32mΩ
Channel Type
Dual N-channel
Package

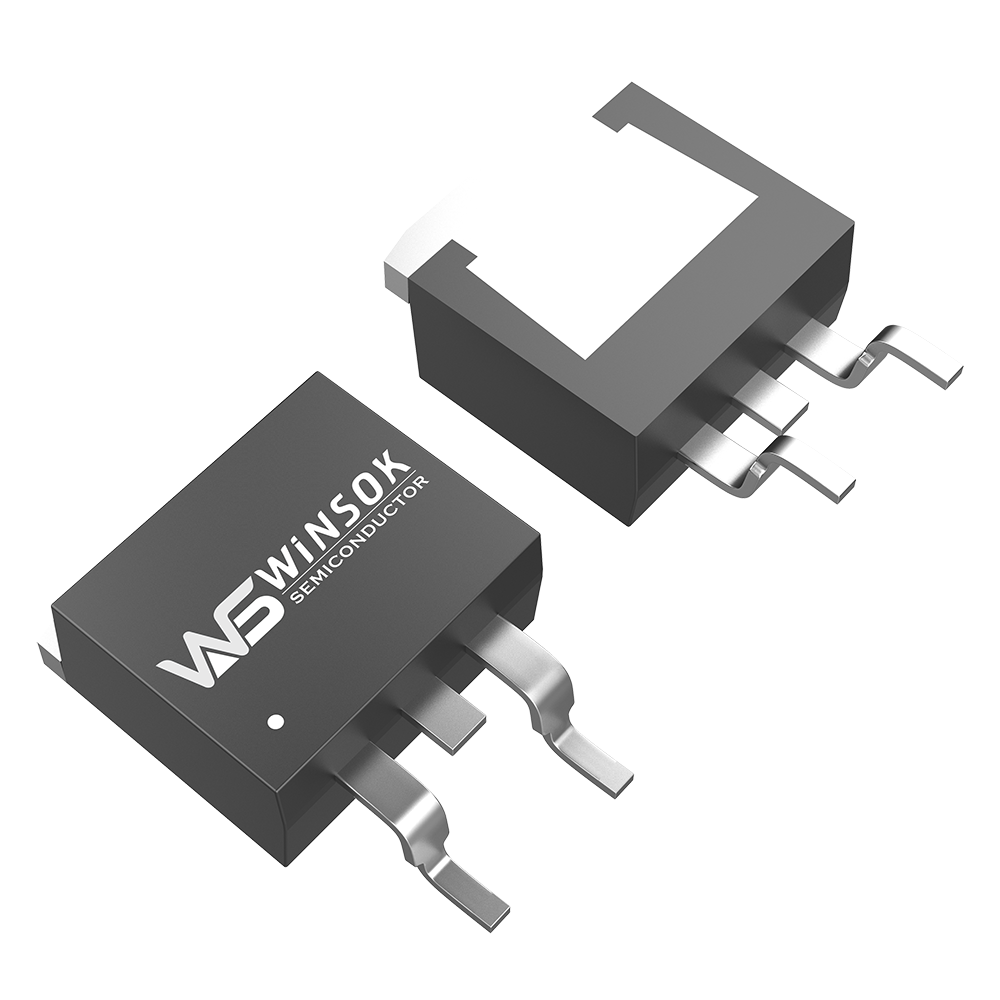

TO-263-2L
| Part number | Configuration | Type | VDS | VGS | ID (A) | RDS(ON)(mΩ) | RDS(ON)(mΩ) | Ciss | Package | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| @10V | @6V | @4.5V | @2.5V | @1.8V | |||||||||||||
| (V) | ±(V) | Max. | Typ. | Max. | Typ. | Max. | Typ. | Max. | Typ. | Max. | Typ. | Max. | (pF) | ||||
| WST8205A | Dual | N-Ch | 20 | 12 | 5.3 | - | - | - | - | 32 | 40 | 46 | 50 | - | - | 625 | SOT-23-6L |
Cross Reference / Alternatives
PANJIT PJA3416AE, POTENS PDQ2218
Q1: What is the rated voltage and current for the WST8205A MOSFET?
A1: The WST8205A MOSFET operates at a drain-source voltage (VDS) of 20V and supports a continuous drain current (ID) of 5.3A.
Q2: What is the channel configuration of the WST8205A MOSFET?
A2: The WST8205A is a Dual N-channel configuration MOSFET, which integrates two N-channel devices in a single package.
Q3: What are the packaging options listed for the WST8205A MOSFET?
A3: The WST8205A MOSFET is associated with TO-263-2L and SOT-23-6L packages based on different configuration types.
Q4: In what applications can the WST8205A MOSFET be used?
A4: It is widely used in automotive electronics, LED lights, audio systems, digital products, small appliances, consumer electronics, and battery protection boards.
Q5: What are the RDS(ON) resistance specifications at different test voltages?
A5: For WST8205A, the RDS(ON) resistance is 32mΩ (typical) / 40mΩ (maximum) at @4.5V, and 46mΩ (typical) / 50mΩ (maximum) at @2.5V.
Q6: Are there alternative models available for this component?
A6: Yes, similar alternative options include PANJIT PJA3416AE and POTENS PDQ2218.
