Q1: What is the channel type and package of the WINSOK WSD40120DN56?

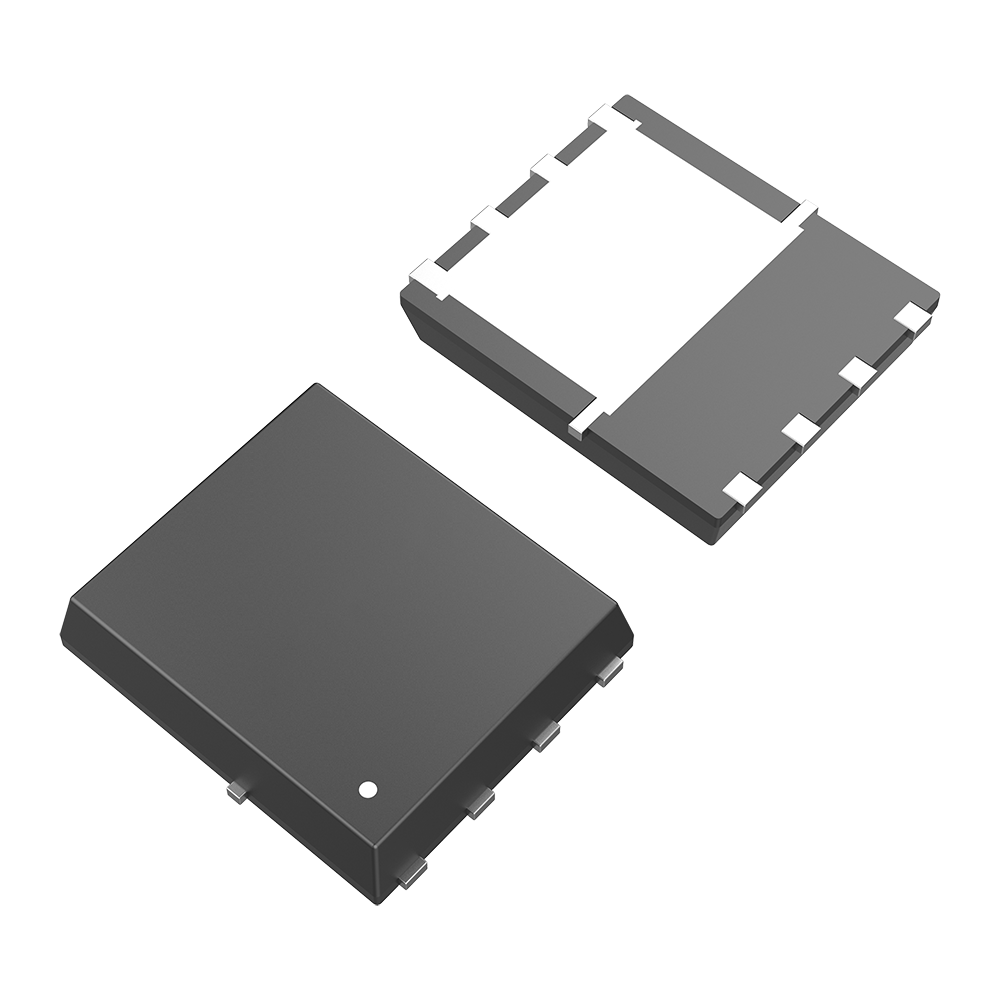

A1: The WINSOK WSD40120DN56 is an N-channel FET, and it is housed in a standard DFN5X6-8 package.
Q2: What are the key electrical specifications of the WSD40120DN56 MOSFET?
A2: It features a voltage BVDSS of 40V, a continuous current rating of 120A, and a low on-resistance of 1.85mΩ.
Q3: Which part numbers can cross-reference with the WSD40120DN56?
A3: Equivalent replacement options include STMicroelectronics STL12N4LF6AG, NXP PH484S, TOSHIBA TPH1R14PB, PANJIT PJQ544, NIKO-SEM PKCSBB, and POTENS Semiconductor PDC496X.
Q4: In what types of electronic devices can the WSD40120DN56 be applied?
A4: This MOSFET is widely used in wireless charging, drones, controllers, car chargers, medical care devices, digital products, small household appliances, e-cigarettes, and various consumer electronics.
Q5: Why is the WSD40120DN56 suitable for high-efficiency power designs?
A5: With an ultra-low resistance of 1.85mΩ and a high current capacity of 120A, it minimizes conduction losses, making it ideal for power management and switching applications.
