Frequently Asked Questions
Q
What is the voltage and current rating of the WSD1216DN22 MOSFET?
The WSD1216DN22 MOSFET features a voltage rating of -12V and a continuous drain current rating of -9.4A.
Q
What are the key differences between WSD1216DN22 and WSD1216BDN22?
While both parts operate at -12V in a P-channel configuration, the WSD1216BDN22 offers a higher current rating of -15A and a typical RDS(ON) of 14mΩ at 4.5V, compared to the -9.4A current rating and 15mΩ resistance of the WSD1216DN22.
Q
What package type do these MOSFETs use?

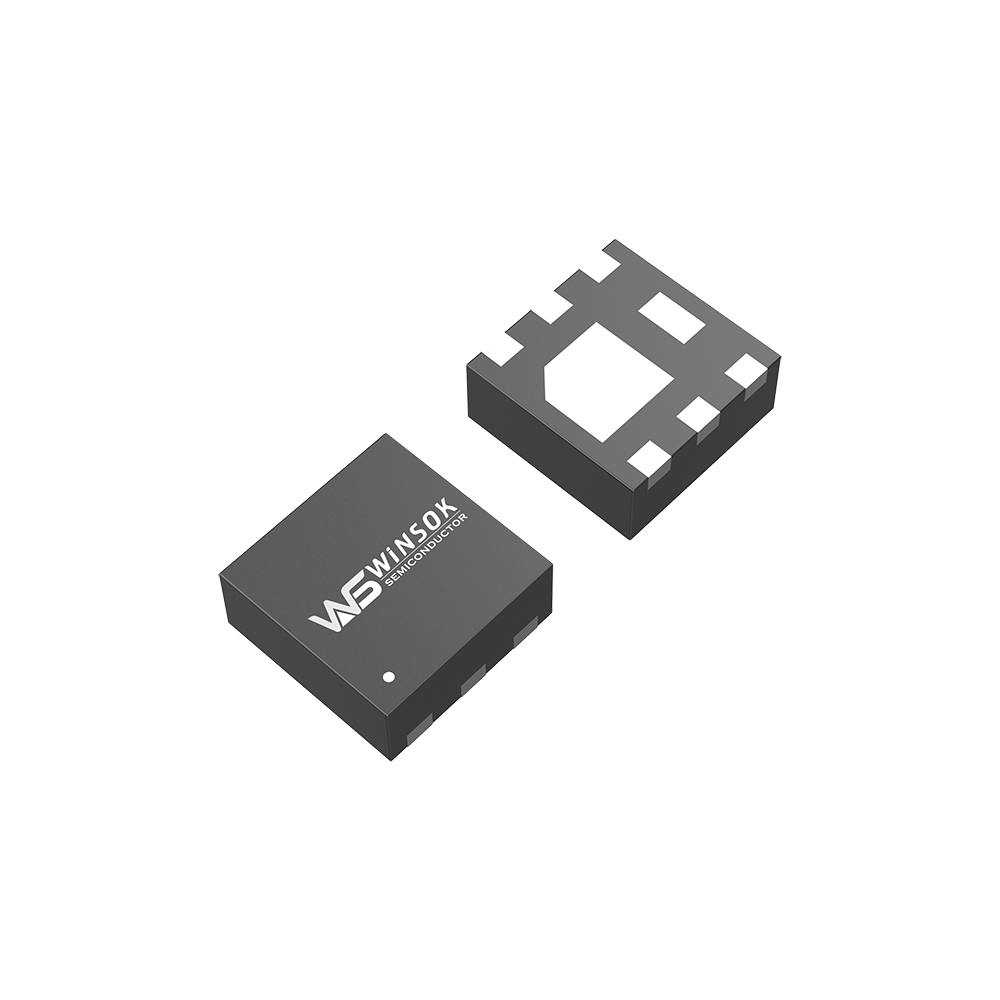

Both the WSD1216DN22 and WSD1216BDN22 are housed in the compact DFN2X2-6L package, making them suitable for space-constrained designs.
Q
What are the primary application fields for these MOSFET devices?
These MOSFETs are widely applied in e-cigarettes, electronic controllers, digital products, small household appliances, and various consumer electronics.
Q
Are there equivalent cross-reference parts available from other brands?
Yes, equivalent models include the AOS AON2403, Onsemi/Fairchild FDMA908PZ, Nexperia PMPB15XP, Toshiba SSM6J512NU, and Potens PDB2309L.
