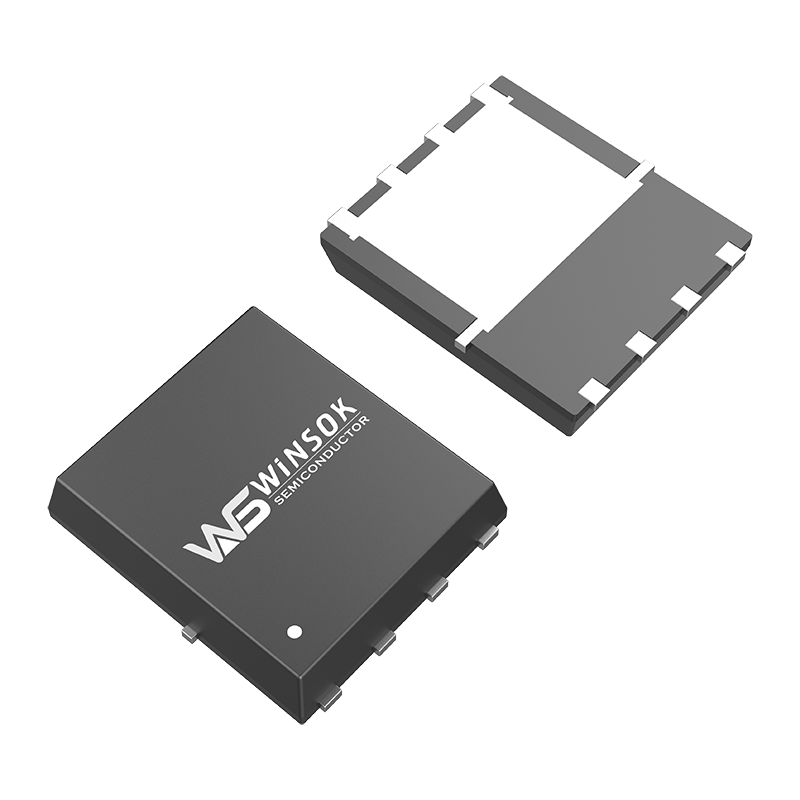

The WINSOK WSD20L120DN56 is a P-channel MOSFET featuring a voltage BVDSS of -20V, a current ID of -120A, and an ultra-low internal resistance RDSON of 2.1mΩ, housed in a DFN5*6-8 package.
While all three have a BVDSS rating of -20V, the WINSOK WSD20L120DN56 offers a higher current rating (-120A vs -108A for NIKO and -85A for AOS) and a lower internal resistance (2.1mΩ vs 3.5mΩ for NIKO and 3.6mΩ for AOS), indicating better efficiency.
The POTENS PDC3901X MOSFET features a voltage BVDSS of -30V, a continuous current ID of -100A, and an internal resistance RDSON of 3.3mΩ.
The WINSOK WSD20L120DN56 is manufactured in a DFN5*6-8 package structure, which helps optimize thermal management and space efficiency.
These MOSFETs are suitable for a wide range of applications including e-cigarettes, wireless charging modules, motors, drones, medical equipment, car chargers, controllers, digital products, small household appliances, and consumer electronics.
The WINSOK WSD20L120DN56 provides the lowest internal resistance of 2.1mΩ, compared to 3.3mΩ (POTENS), 3.5mΩ (NIKO), and 3.6mΩ (AOS).
