Product Overview

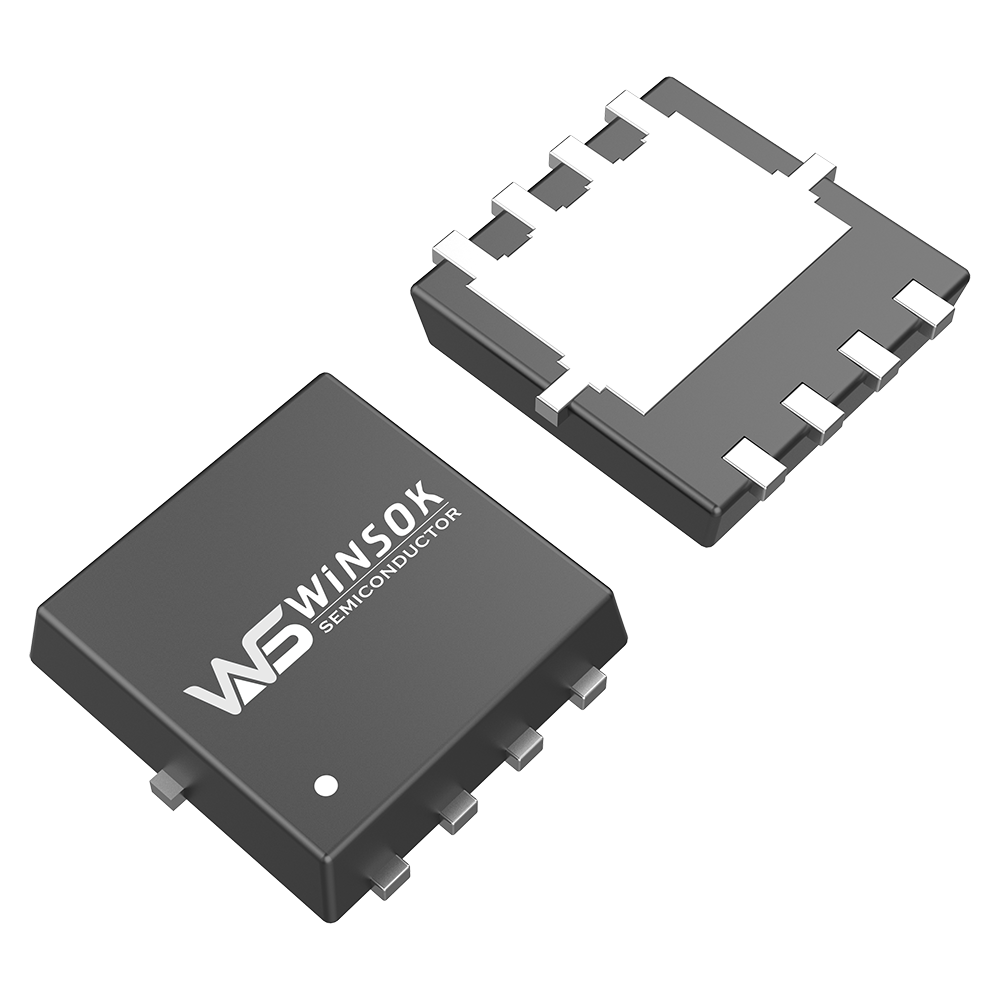

The voltage of WSD4046GDN and WSD4046DN MOSFET is 40V, the current is 43A, the resistance is 6.7mΩ, the channel type is N-channel, and it is available in the compact DFN3X3-8 package.
Frequently Asked Questions
❓ What are the key voltage and current ratings for the WSD4046GDN MOSFET?
The WSD4046GDN is an N-channel MOSFET designed with a voltage rating of 40V, a continuous current rating of 43A, and a typical RDS(on) resistance of 6.7mΩ.
❓ What package format is used for the WSD4046GDN and WSD4046DN series?
Both the WSD4046GDN and WSD4046DN MOSFETs are housed in a highly compact, thermally optimized DFN3X3-8 package, suitable for high-density design layouts.
❓ What are the primary applications for these MOSFETs?
These devices are commonly used in power management applications including car chargers, PD (Power Delivery) systems, drones, and various small home appliances.
❓ Which models serve as equivalents for the AOS AON7240 MOSFET?
The WSD4046GDN and WSD4046DN MOSFETs serve as compatible replacements and cross-references for the AOS AON7240, alongside other equivalents such as the Onsemi NTTFS8851NL and Nexperia PSMN6R7-40MLD.
❓ What is the difference in gate input capacitance (Ciss) between the two models?
The WSD4046GDN features an input capacitance (Ciss) of 550pF, whereas the WSD4046DN has a higher input capacitance rating of 2450pF.
❓ Can the WSD4046DN handle higher current loads compared to the WSD4046GDN?
Yes, the WSD4046DN has a rated continuous drain current (ID) of 45A, which is slightly higher than the 43A rating of the WSD4046GDN.
