1. What are the primary specifications of the WST2026 (WSK42P10) MOSFET?

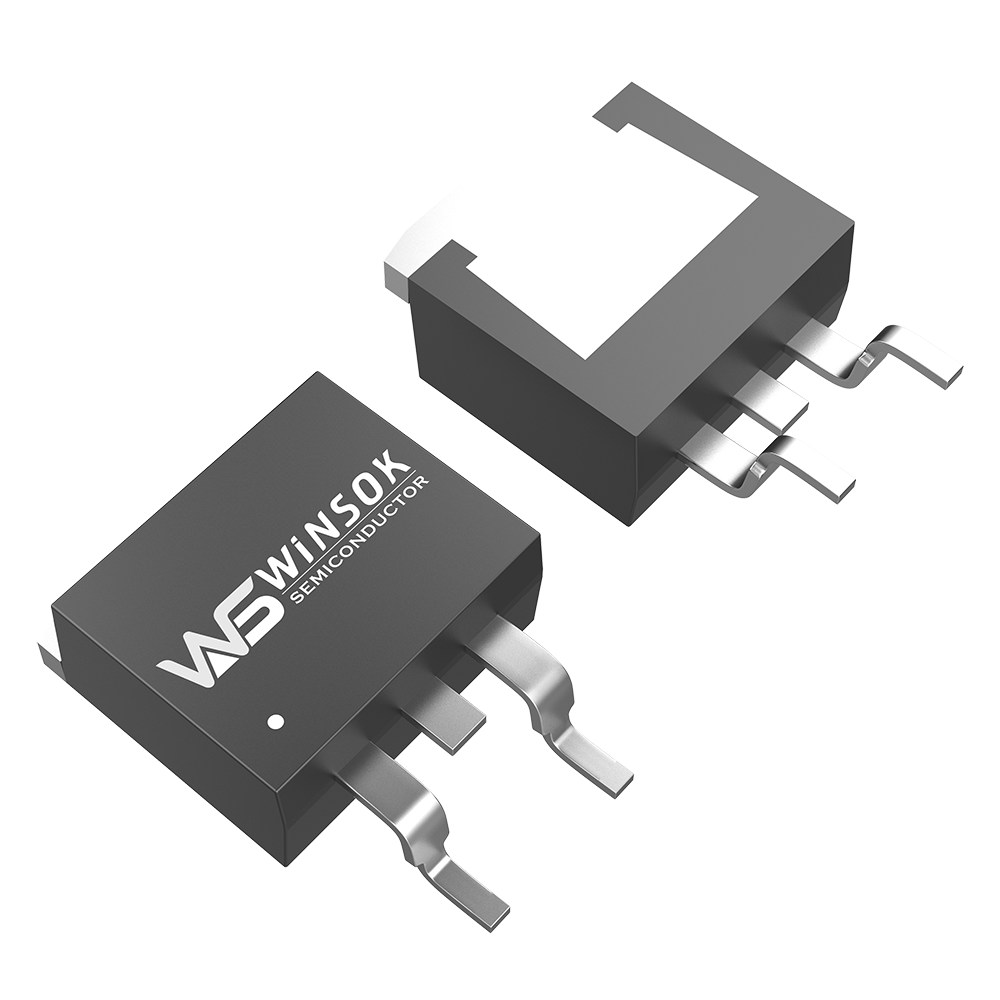

The WST2026 (WSK42P10) is a P-channel MOSFET featuring a drain-source voltage (VDS) of -100V, continuous drain current (ID) of -42A, on-resistance (RDS(ON)) of 78mΩ at 10V, and is housed in a TO-263-2L package.
2. What are the typical applications for this P-channel MOSFET?
This MOSFET is widely utilized in switching applications including motor controllers, Battery Management Systems (BMS), wireless chargers, emergency power supplies, drones, e-cigarettes, car chargers, and various consumer electronics.
3. What is the significance of the TO-263-2L package?
The TO-263-2L package offers superior thermal performance and high current handling capability. It is optimized for surface-mount assembly while ensuring efficient heat dissipation.
4. Why is a P-channel MOSFET chosen for these designs?
P-channel MOSFETs are commonly preferred in high-side load switching applications because they simplify the gate driving circuitry, removing the need for an external boost supply.
5. What is the input capacitance (Ciss) value for this device?
The typical input capacitance (Ciss) is 3029 pF, which helps circuit designers calculate precise gate charge and switching speed performance.
