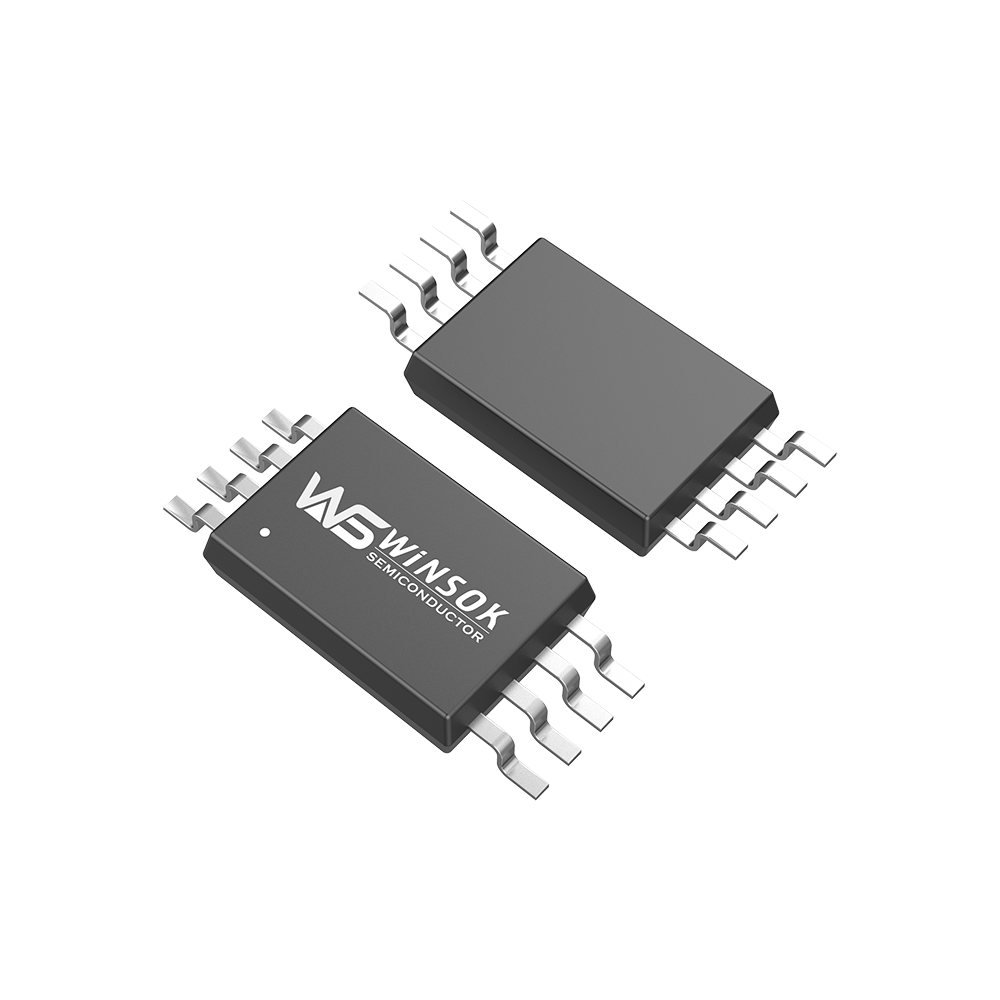

WST2026 MOSFET Specifications
Applications
Automotive electronics
LED lights
Audio
Digital products
Small appliances
Consumer electronics
Protection boards
Technical Parameters
| Part number |
Configuration |
Type |
VDS (V) |
VGS ±(V) |
ID (A) |
RDS(ON) (mΩ) |
Ciss (pF) |
Package |
| @10V |
@6V |
@4.5V |
@2.5V |
@1.8V |
| Val |
Val |
Val |
Typ. |
Max. |
Typ. |
Max. |
Typ. |
Max. |
Typ. |
Max. |
Typ. |
Max. |
Val |
| WSP8810A |
Dual+ESD |
N-Ch |
20 |
12 |
7 |
14.5 |
21 |
- |
- |
15 |
22 |
17.5 |
26 |
22 |
30 |
1292 |
TSSOP-8L |
| WSP8810 |
Dual+ESD |
N-Ch |
20 |
12 |
7.5 |
- |
- |
- |
- |
11.5 |
14.5 |
14.5 |
20 |
- |
- |
900 |
TSSOP-8L |
| WSP8814 |
Dual+ESD |
N-Ch |
20 |
12 |
9 |
- |
- |
- |
- |
7.6 |
9.5 |
9.5 |
13 |
- |
- |
2000 |
TSSOP-8L |
Cross Reference / Equivalents
AOS AO8808A
VISHAY Si6968BEDQ
POTENS PDEW2210
dintek DTM8002
dintek DTM8021
dintek DTM8205
ncepower NCE2010E*
HUAYI HY0720TS
Frequently Asked Questions
What are the primary specifications of the WST2026 MOSFET?
The WST2026 is a Dual N-Channel MOSFET with a rated voltage of 20V, a continuous current capacity of 7A, and an on-resistance (RDS(ON)) of 14.5mΩ. It is designed in a TSSOP-8L package.
What applications are suitable for the WST2026 MOSFET?
This device is widely used in automotive electronics, LED lighting systems, audio equipment, digital products, small household appliances, consumer electronics, and battery protection boards.
What package type does the WST2026 use?
The WST2026 features a TSSOP-8L package, which offers a compact footprint suitable for space-constrained circuit layouts.
Are there cross-reference or equivalent parts for this product series?
Yes, compatible models and equivalents include AOS AO8808A, VISHAY Si6968BEDQ, POTENS PDEW2210, dintek DTM8002/DTM8021/DTM8205, ncepower NCE2010E*, and HUAYI HY0720TS.
What are the characteristics of the N-channel configuration in these MOSFETs?
The configuration features Dual N-Channel options, with select versions including integrated ESD protection (Dual+ESD) such as the WSP8810A, WSP8810, and WSP8814, providing higher reliability in sensitive applications.
