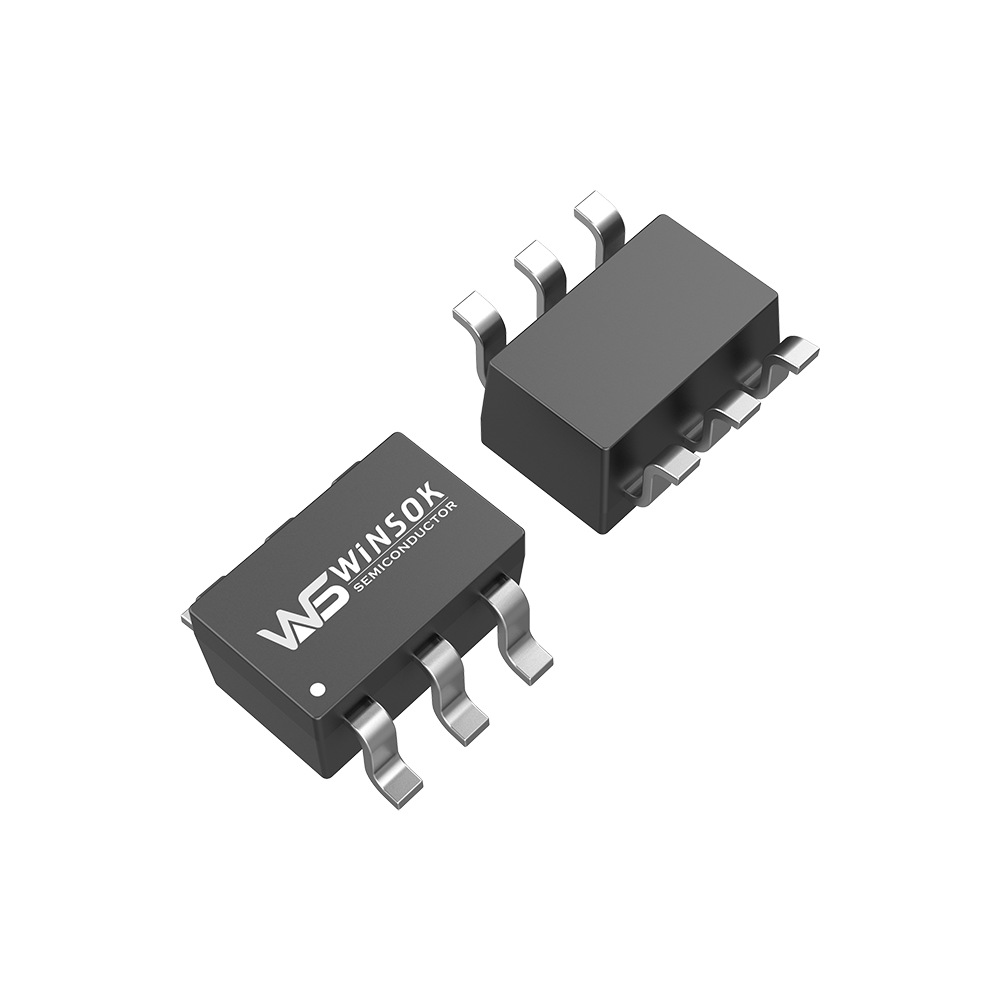

The WST2026 is a high-performance Dual N-Channel MOSFET designed with a 30V voltage rating, 0.17A current limit, and a low drain-source on-resistance of 5500mΩ. Housed in a compact SOT-363-6L package, it provides efficient power management in miniature applications.
What are the primary specifications of the WST2026 MOSFET?
The WST2026 MOSFET features a voltage rating of 30V, a continuous current rating of 0.17A, a drain-source resistance (RDS(ON)) of 5500mΩ, and is configured as a Dual N-Channel device in an SOT-363-6L package.
What are the common applications for this MOSFET?
Due to its miniature size and efficient switching performance, it is widely used in wearable electronics like watches and bracelets, miniature portable digital systems, and battery protective plates.
What are some compatible cross-reference models for the WST2026/WST2006?
Compatible replacement part numbers include NX3020NAKS, SSM6L35FU, SSM6N35FU, PJC7406, SM1660DSCS, and PDEV2220Z.
What does Dual N-Ch configuration mean?
A Dual N-Channel (N-Ch) configuration means the device contains two independent N-channel MOSFET switches integrated into a single physical package, allowing for space savings and simplified routing on PCBs.
What is the package format of this device?
It uses the SOT-363-6L package, which features a very small surface mount outline and 6 leads, ideal for ultra-thin and lightweight electronic assemblies.
