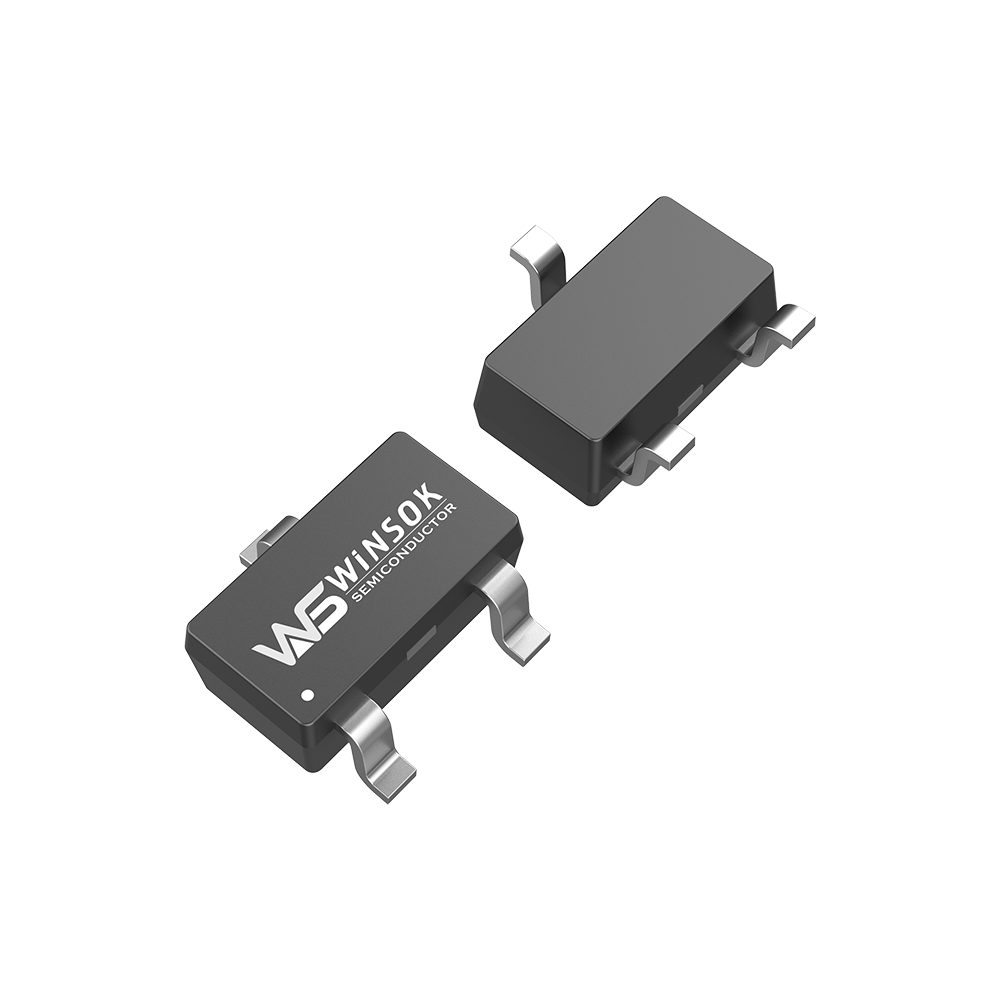

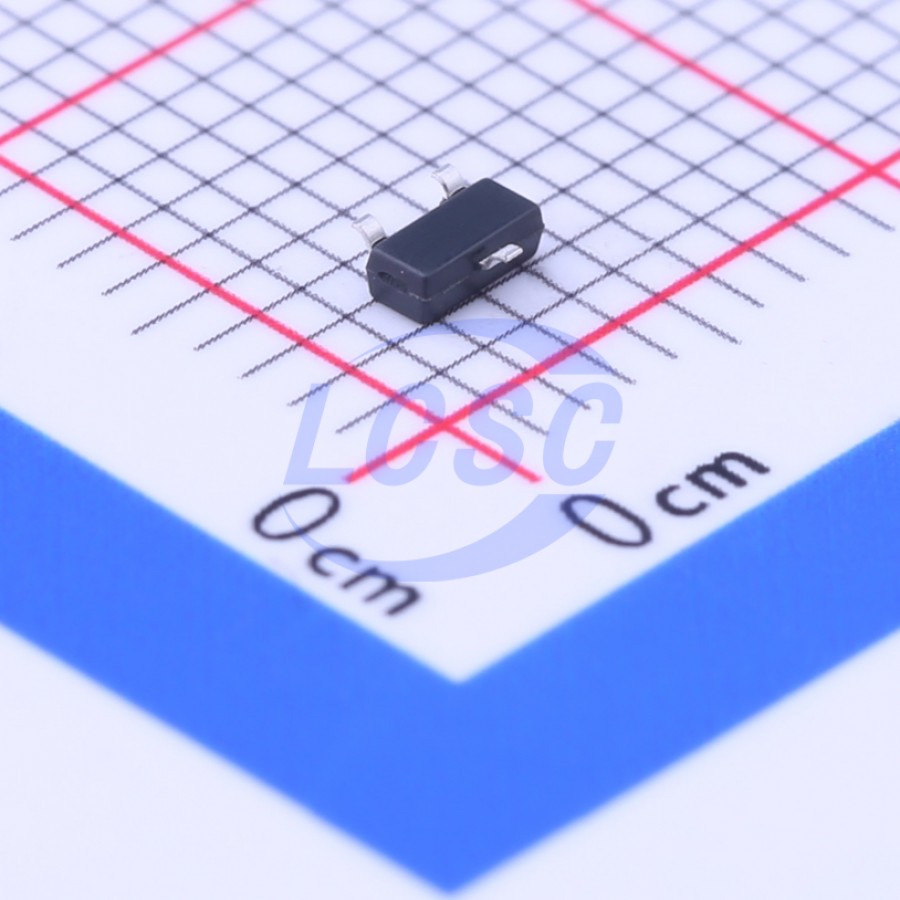

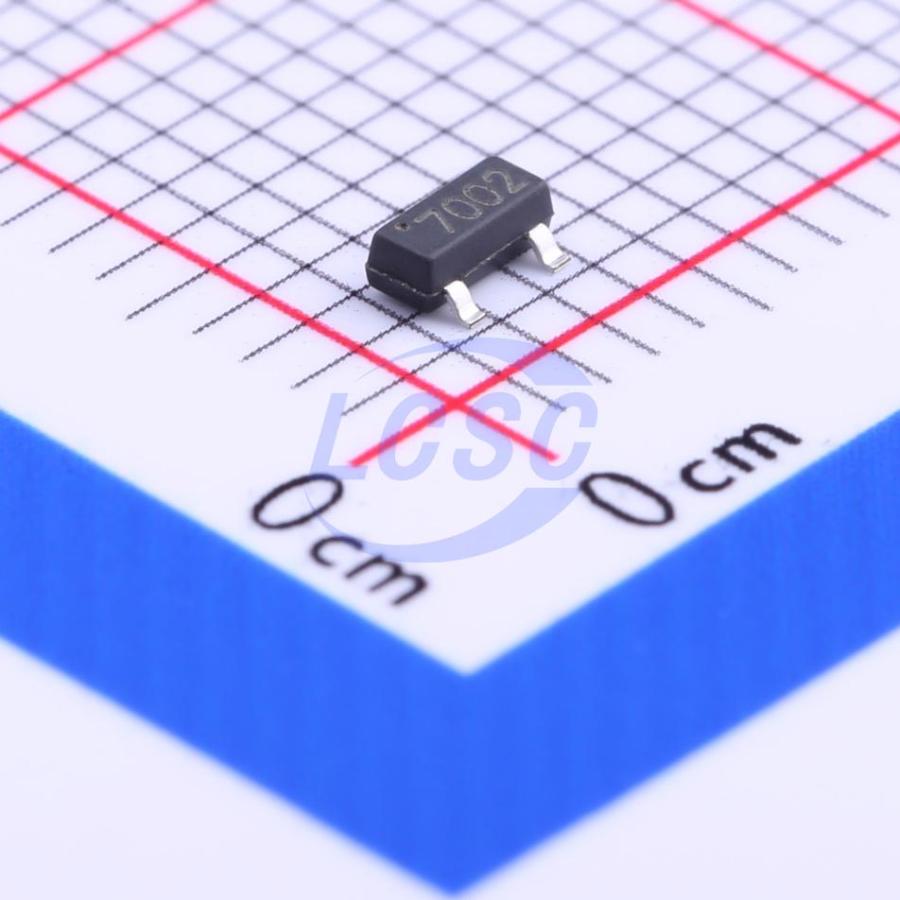

Free Sample WST2N7002 N-channel 60V 0.18A SOT-23L WINSOK MOSFET Supplier, Buy

Part Number: WST2N7002

BVDSS: 60V

ID: 0.18A

RDSON: 200mΩ

Channel: N-channel

Package: SOT-23L

Lead Time: One week

Certification: ISO, RoHS, IATF

WST2N7002 is a cost-effective MOSFET with wide applications, ideal for economical solutions in emerging markets. WST2N7002A and WST2N7002K are optional.

Reference Price
Quantity (Cut Tape (CT) & Digi-Reel®)	Unit Price Range
1-99	$0.020~0.021
100-499	$0.018~0.019
500-2999	$0.016~0.017
3000-10000	$0.014~0.015

Send Inquiry

Product Description

The N-Channel enhancement mode MOSFET is produced using a proprietary, high cell density, DMOS technology. This product minimizes on-state resistance while providing rugged, reliable, and fast switching performance. It supports applications requiring up to 400mA DC and even delivers pulsed currents up to 2A.

This MOSFET is ideal for low voltage, low current applications, such as small servo motor control, power MOSFET gate drivers, and other switching applications.

Note: While we are not a factory or manufacturer, we offer prices more competitive than factory direct, along with unparalleled customer service.

Part number	Configuration	Type	VDS	VGS	ID (A)	RDS(ON)(mΩ)						RDS(ON)(mΩ)				Ciss	Package
			VDS	VGS	ID (A)	@10V		@6V		@4.5V		@2.5V		@1.8V		Ciss
			(V)	±(V)	Max.	Typ.	Max.	Typ.	Max.	Typ.	Max.	Typ.	Max.	Typ.	Max.	(pF)
WST2N7002	Single	N-Ch	60	20	0.18	2000	6600	-	-	3000	8000	-	-	-	-	18	SOT-23L
WST2N7002K	Single	N-Ch	60	20	0.3	1000	3000	-	-	4000	5000	-	-	-	-	32	SOT-23L
WST2N7002A	Single	N-Ch	60	20	0.7	140	450	-	-	180	765	-	-	-	-	130	SOT-23L

Symbol	Parameter	Rating	Units
V_DS	Drain-Source Voltage	60	V
V_GS	Gate-Source Voltage	±20	V
I_D@T_A=25℃	Continuous Drain Current, V_GS @ 10V¹	0.18	A
I_D@T_A=70℃	Continuous Drain Current, V_GS @ 10V¹	0.15	A
I_DM	Pulsed Drain Current²	1.2	A
P_D@T_A=25℃	Total Power Dissipation³	0.2	W
T_STG	Storage Temperature Range	-55 to 150	℃
T_J	Operating Junction Temperature Range	-55 to 150	℃

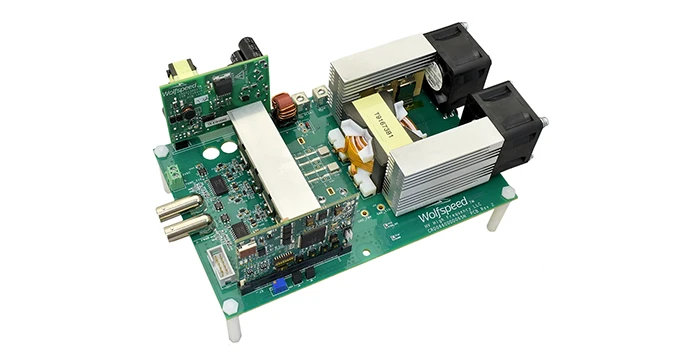

High-Frequency DC-DC Conversion

Ideal for switch-mode power supplies and voltage regulators in portable electronics, featuring fast switching speeds and low power dissipation.

Switching Frequency: Up to 100MHz

Efficiency: >90%

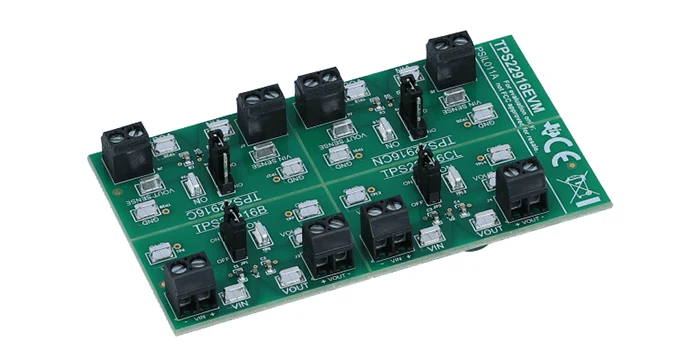

Load Switching

Perfect for battery-powered devices and mobile applications requiring efficient power management and load isolation.

Load Current: Up to 300mA

Response Time: <2ns

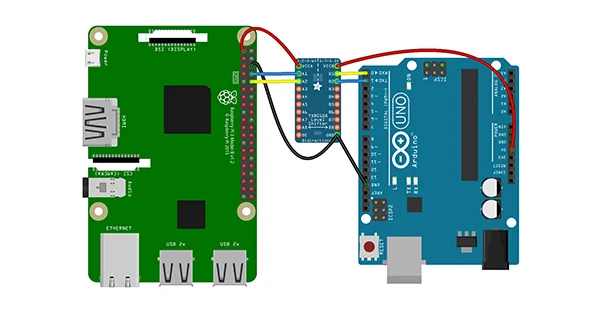

Level Shifting

Excellent for interfacing between different voltage domains in mixed-signal circuits and microcontroller applications.

Voltage Range: 1.8V - 5.0V

Propagation Delay: <5ns

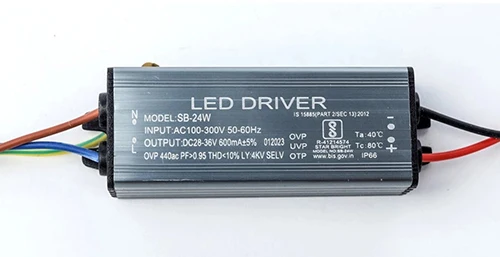

LED Drivers

Suitable for LED driving applications in displays, indicators, and lighting systems requiring precise current control.

Current Control: Linear Region

PWM Frequency: Up to 20kHz

High Efficiency: Designed for low on-resistance (200mΩ) and fast switching performance, improving overall power efficiency.
Compact Design: Space-saving SOT-23L package ideal for high-density PCB layouts.
Reliable Operation: Built with trench MOSFET technology for enhanced thermal and electrical performance.
Versatile Applications: Suitable for a wide range of applications, including DC-DC conversion, load switching, and battery-powered systems.
Fast Switching: Supports high-speed operation, reducing delay in critical circuits.
Global Compatibility: Meets international standards and is RoHS compliant for universal adoption.

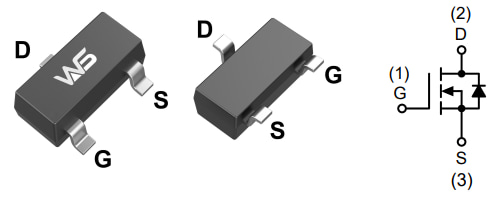

WST2N7002 layout and package parameters representation

Compare WST2N7002 with other popular N-Channel MOSFETs in the market

Features	WST2N7002	2N7002K	AO3400A	BSS138
VDS (Max)	60V	60V	30V	50V
RDS(on) @ VGS=4.5V	7.5Ω	7.5Ω	9Ω	12Ω
Gate Charge (Qg)	1.6nC	2.5nC	2.1nC	2.5nC
Operating Temperature	-55°C to 150°C	-55°C to 150°C	-55°C to 125°C	-55°C to 125°C
ESD Protection	2kV	1kV	1kV	1kV
Price Performance Ratio	★★★★★	★★★★☆	★★★☆☆	★★★★☆

* All data sourced from respective product datasheets
* Price Performance Ratio based on market research and customer feedback
* Highlighted cells indicate superior performance characteristics

Frequently Asked Questions (FAQ)

What are the primary applications of the WST2N7002 N-channel MOSFET?

The WST2N7002 is highly suited for low voltage, low current switching systems. Typical uses include small servo motor control, power MOSFET gate drivers, high-speed switching circuits, level shifting, and LED drivers.

What package type is used for this MOSFET series?

This product line (including WST2N7002, WST2N7002K, and WST2N7002A) is packaged in a compact SOT-23L housing, which allows for highly efficient space utilization on high-density PCBs.

How does the DMOS technology benefit the performance of the device?

The proprietary high cell density DMOS technology lowers on-state resistance (RDS(on)), ensures fast switching speeds, and increases ruggedness, making it highly reliable for demanding low-power operations.

What are the maximum voltage and current tolerances?

It features a maximum Drain-Source Voltage (VDS) of 60V, Gate-Source Voltage (VGS) of ±20V, and supports continuous drain currents up to 0.18A. Additionally, it handles short pulsed current peaks up to 1.2A.

How does WST2N7002 stand out in performance compared to standard BSS138 or 2N7002K?

The WST2N7002 features a lower typical gate charge (Qg) of 1.6nC and higher ESD protection threshold (2kV) compared to standard alternatives, providing safer, faster operations with minimized driving losses.

Is this N-channel MOSFET thermal-tolerant for harsh environments?

Yes, it operates efficiently across a broad junction temperature range from -55°C up to 150°C, making it stable under extreme thermal conditions.
