Frequently Asked Questions
QWhat are the key technical parameters of the WSD30300DN56G FET?
The WSD30300DN56G FET is an N-channel transistor featuring a 30V voltage rating (BVDSS), a high current capacity of 300A, and an ultra-low resistance of 0.7mΩ, housed in a compact DFN5X6-8 package.
QWhich MOSFET models can be replaced by the WSD30300DN56G?
The WSD30300DN56G serves as a suitable cross-reference replacement for equivalent MOSFET models such as the PSMNR9-3ULD MOSFET and the PMC4998X MOSFET.

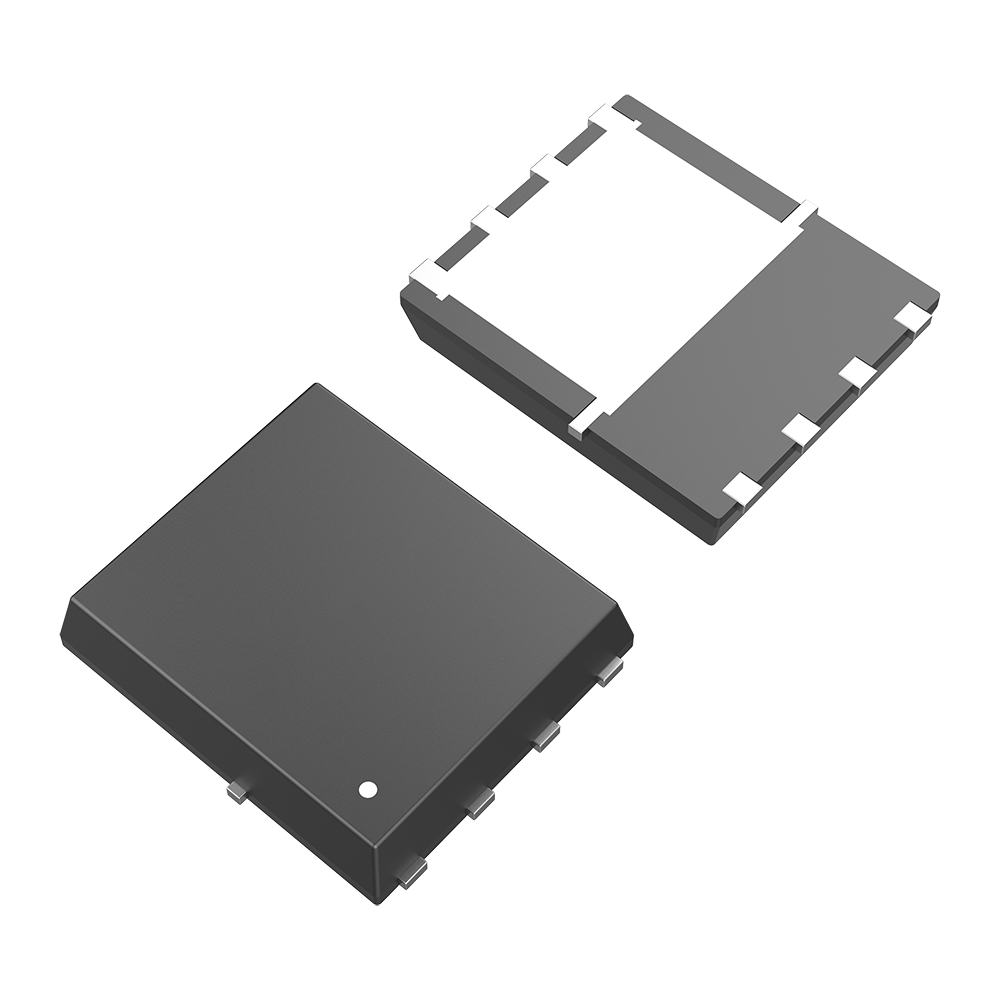

QWhat package style does the WSD30300DN56G use, and what are its advantages?
It utilizes the DFN5X6-8 package. This surface-mount package is highly valued for its compact footprint, excellent thermal performance, and low parasitic inductance, making it ideal for high-density power designs.
QIn what target applications is this N-channel MOSFET commonly used?
It is widely integrated into e-cigarettes, wireless charging stations, drone electronics, medical care systems, car chargers, motor controllers, digital products, small household appliances, and various consumer electronics.
QHow does the 0.7mΩ resistance affect system performance?
The extremely low on-resistance of 0.7mΩ minimizes conduction power losses and reduces heat generation, which significantly enhances the overall energy efficiency and reliability of high-current circuits.
