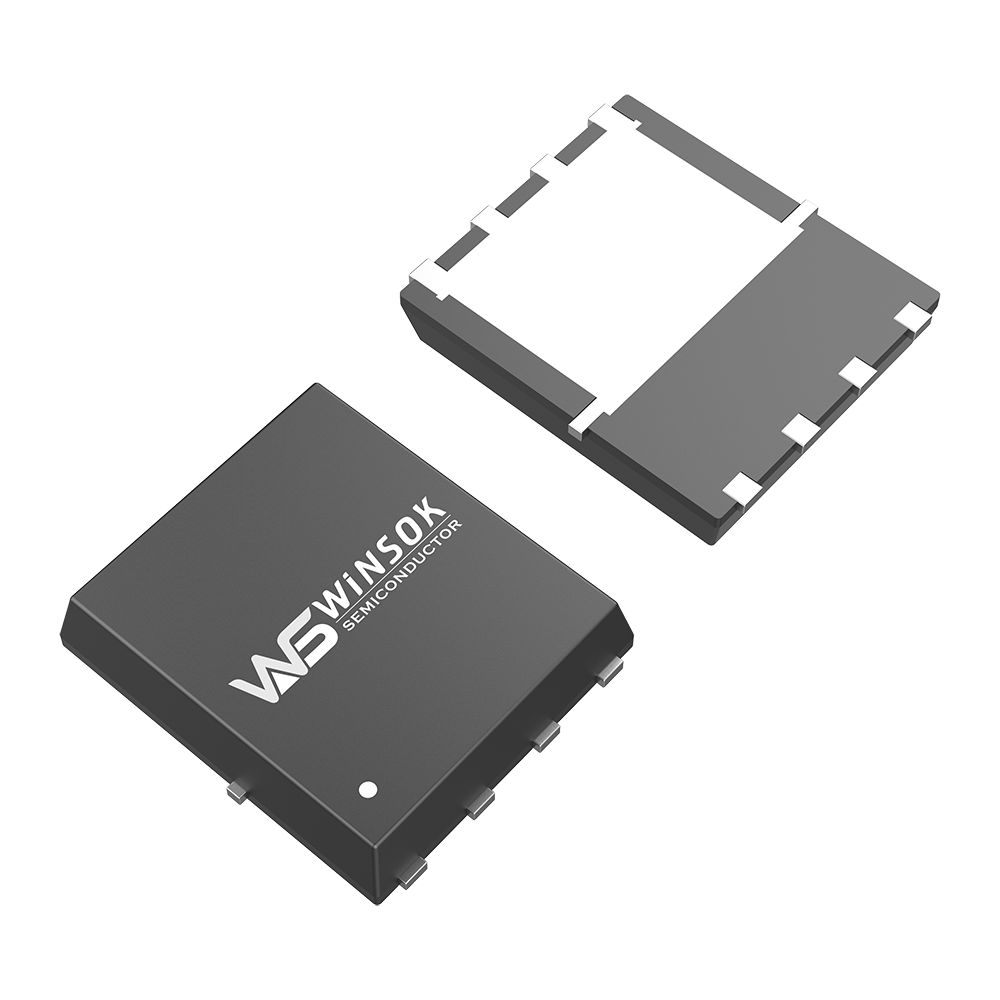

Part Number:WSD40200DN56G BVDSS:40V ID:180A RDSON:1.15mΩ   Channel:N-channel Package:DFN5X6-8

Product Description

WSD40120DN56G MOSFET

High-performance N-channel Power MOSFET designed for optimal efficiency and reliability.

Voltage
40V
Current
120A
Resistance
1.4mΩ
Channel Type
N-channel
Package
DFN5X6-8

Applications

E-cigarettes MOSFET
Wireless charging MOSFET
Drones MOSFET
Medical care MOSFET
Car chargers MOSFET
Controllers MOSFET
Digital products MOSFET
Small household appliances MOSFET
Consumer electronics MOSFET

Cross References & Equivalents

AOS

AOS MOSFET

AON6234, AON6232, AON623

ST

STMicroelectronics MOSFET

STL14N4F7AG

POT

POTENS Semiconductor MOSFET

PDC496X

Absolute Maximum Ratings

Symbol Parameter Rating Units
VDS Drain-Source Voltage 40 V
VGS Gate-Source Voltage ±20 V
ID@TC=25℃ Continuous Drain Current, VGS @ 10V1 120 A
ID@TC=100℃ Continuous Drain Current, VGS @ 10V1 82 A
IDM Pulsed Drain Current2 400 A
EAS Single Pulse Avalanche Energy3 400 mJ
IAS Avalanche Current 40 A
PD@TC=25℃ Total Power Dissipation4 125 W
TSTG Storage Temperature Range -55 to 150
TJ Operating Junction Temperature Range -55 to 150

Electrical Characteristics

Symbol Parameter Conditions Min. Typ. Max. Unit
BVDSS Drain-Source Breakdown Voltage VGS=0V , ID=250uA 40 --- --- V
△BVDSS/△TJ BVDSS Temperature Coefficient Reference to 25℃ , ID=1mA --- 0.043 --- V/℃
RDS(ON) Static Drain-Source On-Resistance2 VGS=10V , ID=20A --- 1.4 1.8
RDS(ON) Static Drain-Source On-Resistance2 VGS=4.5V , ID=20A --- 2.0 2.6
VGS(th) Gate Threshold Voltage VGS=VDS , ID =250uA 1.2 1.6 2.2 V
△VGS(th) VGS(th) Temperature Coefficient --- -6.94 --- mV/℃
IDSS Drain-Source Leakage Current VDS=32V , VGS=0V , TJ=25℃ --- --- 1 uA
VDS=32V , VGS=0V , TJ=55℃ --- --- 5
IGSS Gate-Source Leakage Current VGS=±20V , VDS=0V --- --- ±100 nA
gfs Forward Transconductance VDS=5V , ID=20A --- 53 --- S
Rg Gate Resistance VDS=0V , VGS=0V , f=1MHz --- 1.0 --- Ω
Qg Total Gate Charge (10V) VDS=15V , VGS=10V , ID=20A --- 45 --- nC
Qgs Gate-Source Charge --- 12 ---
Qgd Gate-Drain Charge --- 18.5 ---
Td(on) Turn-On Delay Time VDD=15V , VGEN=10V , RG=3.3 Ω, ID=20A ,RL=15Ω. --- 18.5 --- ns
Tr Rise Time --- 9 ---
Td(off) Turn-Off Delay Time --- 58.5 ---
Tf Fall Time --- 32 ---
Ciss Input Capacitance VDS=20V , VGS=0V , f=1MHz --- 3972 --- pF
Coss Output Capacitance --- 1119 ---
Crss Reverse Transfer Capacitance --- 82 ---

Frequently Asked Questions (FAQ)

What are the primary specifications of WSD40120DN56G MOSFET?
The WSD40120DN56G is an N-channel MOSFET featuring a voltage rating of 40V, a continuous current rating of 120A, and an ultra-low static on-resistance of 1.4mΩ. It comes housed in a space-saving DFN5X6-8 package.
What applications are best suited for this MOSFET?
Due to its high efficiency and thermal capabilities, it is ideal for e-cigarettes, wireless charging modules, drones, medical equipment, car chargers, motor controllers, digital products, small household appliances, and general consumer electronics.
What are the key equivalent parts for the WSD40120DN56G?
Equivalent industry cross-references include AOS models AON6234, AON6232, and AON623, as well as STMicroelectronics STL14N4F7AG and POTENS Semiconductor PDC496X.
What is the safe operating temperature range for this device?
The operating junction temperature (TJ) range and storage temperature (TSTG) range for the WSD40120DN56G are both rated from -55℃ to 150℃, ensuring reliable performance in harsh environments.
What is the power dissipation capability of this MOSFET?
The device can handle a total power dissipation of up to 125W at a case temperature (TC) of 25℃, providing stable operations under heavy loads.
How low is the typical gate resistance (Rg) and total gate charge (Qg)?
It features a typical gate resistance of 1.0Ω and a total gate charge (Qg) of 45nC under test conditions of VDS=15V, VGS=10V, and ID=20A.
