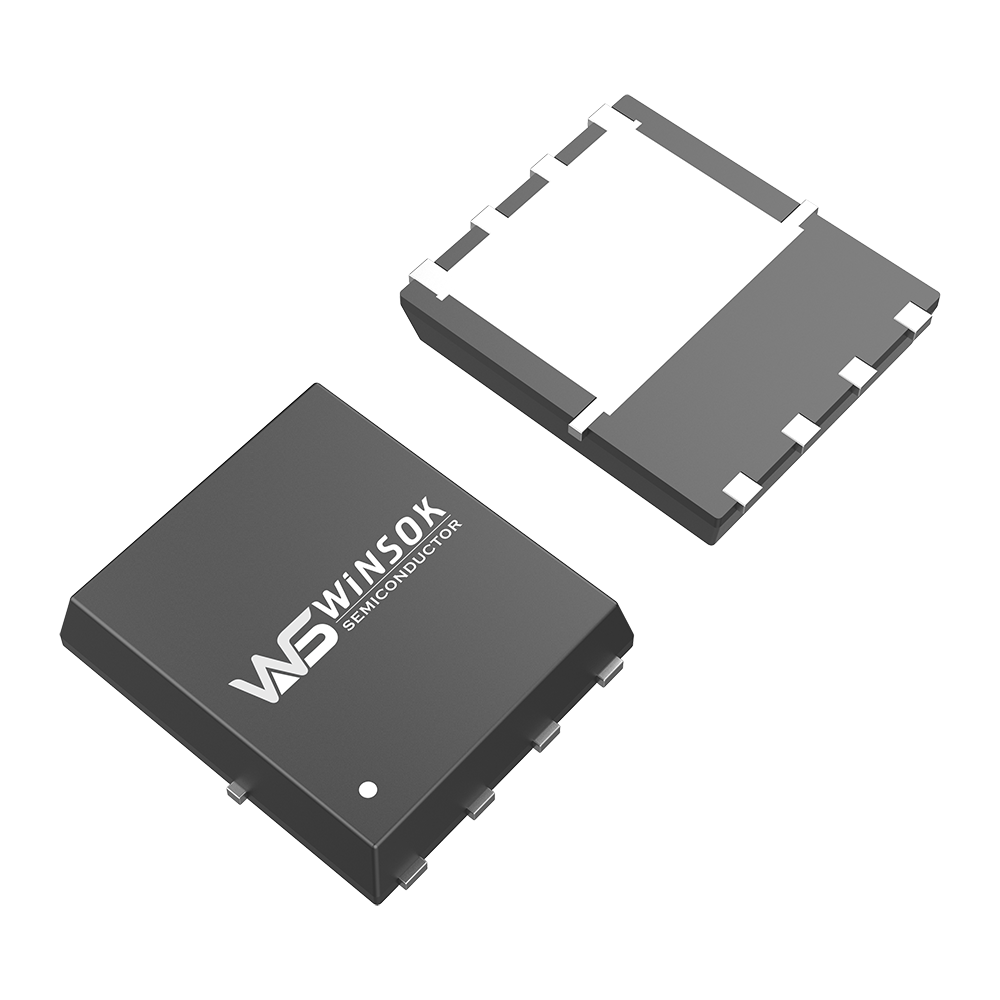

ODM WSD75100DN56 N-channel 75V 100A DFN5X6-8 WINSOK MOSFET Factory, Purchase

Part Number:WSD75100DN56 BVDSS:75V ID:100A RDSON:5.3mΩ   Channel:N-channel Package:DFN5X6-8

Product Description

The voltage of WSD75100DN56 MOSFET is 75V, the current is 100A, the resistance is 5.3mΩ, the channel is N-channel, and the package is DFN5X6-8.

75V
Voltage (VDS)
100A
Current (ID)
5.3mΩ
Resistance (RDS(ON))
N-Channel
Channel Type
DFN5X6-8
Package Type

Target Applications

E-cigarettes MOSFET Wireless charging MOSFET Drones MOSFET Medical care MOSFET Car chargers MOSFET Controllers MOSFET Digital products MOSFET Small household appliances MOSFET Consumer electronics MOSFET

Cross Reference Compatibility

AOS MOSFET AON6276, AON6278, AON628, AON6282, AON6448
Onsemi / FAIRCHILD MOSFET NVMFS6H824N
STMicroelectronics MOSFET STL1N8F7
INFINEON / IR MOSFET BSC42NE7NS3G, BSC36NE7NS3G
POTENS Semiconductor MOSFET PDC7966X

Absolute Maximum Ratings

Symbol Parameter Rating Units
VDS Drain-Source Voltage 75 V
VGS Gate-Source Voltage ±25 V
TJ Maximum Junction Temperature 150 °C
ID Storage Temperature Range -55 to 150 °C
IS Diode Continuous Forward Current, TC=25°C 50 A
ID Continuous Drain Current, VGS=10V, TC=25°C 100 A
Continuous Drain Current, VGS=10V, TC=100°C 73 A
IDM Pulsed Drain Current, TC=25°C 400 A
PD Maximum Power Dissipation, TC=25°C 155 W
Maximum Power Dissipation, TC=100°C 62 W
RθJA Thermal Resistance-Junction to Ambient, t =10s 20 °C
Thermal Resistance-Junction to Ambient, Steady State 60 °C
RqJC Thermal Resistance-Junction to Case 0.8 °C
IAS Avalanche Current, Single pulse, L=0.5mH 30 A
EAS Avalanche Energy, Single pulse, L=0.5mH 225 mJ

Electrical Characteristics

Symbol Parameter Conditions Min. Typ. Max. Unit
BVDSS Drain-Source Breakdown Voltage VGS=0V, ID=250uA 75 --- --- V
△BVDSS/△TJ BVDSS Temperature Coefficient Reference to 25℃, ID=1mA --- 0.043 --- V/℃
RDS(ON) Static Drain-Source On-Resistance VGS=10V, ID=25A --- 5.3 6.4
VGS(th) Gate Threshold Voltage VGS=VDS, ID=250uA 2.0 3.0 4.0 V
△VGS(th) VGS(th) Temperature Coefficient --- -6.94 --- mV/℃
IDSS Drain-Source Leakage Current VDS=48V, VGS=0V, TJ=25℃ --- --- 2 uA
VDS=48V, VGS=0V, TJ=55℃ --- --- 10
IGSS Gate-Source Leakage Current VGS=±20V, VDS=0V --- --- ±100 nA
gfs Forward Transconductance VDS=5V, ID=20A --- 50 --- S
Rg Gate Resistance VDS=0V, VGS=0V, f=1MHz --- 1.0 2 Ω
Qg Total Gate Charge (10V) VDS=20V, VGS=10V, ID=40A --- 65 85 nC
Qgs Gate-Source Charge --- 20 ---
Qgd Gate-Drain Charge --- 17 ---
Td(on) Turn-On Delay Time VDD=30V, VGEN=10V, RG=1Ω, ID=1A, RL=15Ω --- 27 49 ns
Tr Rise Time --- 14 26
Td(off) Turn-Off Delay Time --- 60 108
Tf Fall Time --- 37 67
Ciss Input Capacitance VDS=20V, VGS=0V, f=1MHz 3450 3500 4550 pF
Coss Output Capacitance 245 395 652
Crss Reverse Transfer Capacitance 100 195 250

Frequently Asked Questions

Q1: What are the main specifications of the WSD75100DN56 MOSFET?
A1: The WSD75100DN56 is an N-channel MOSFET designed with a drain-source voltage (VDS) of 75V, a continuous current rating of 100A, and a static drain-source on-resistance (RDS(ON)) of 5.3mΩ. It is housed in a standard DFN5X6-8 package.
Q2: Which applications are highly suitable for this N-channel MOSFET?
A2: This device is optimal for power management, switching, and driver circuits in e-cigarettes, wireless charging stations, drones, medical equipment, car chargers, electronic motor controllers, digital products, small household appliances, and other consumer electronics.
Q3: Which models can be used as equivalent cross-references to the WSD75100DN56?
A3: Compatible replacements include AOS (AON6276, AON6278, AON628, AON6282, AON6448), Onsemi/Fairchild (NVMFS6H824N), STMicroelectronics (STL1N8F7), Infineon/IR (BSC42NE7NS3G, BSC36NE7NS3G), and POTENS Semiconductor (PDC7966X).
Q4: What is the thermal resistance from junction to case (RqJC) for this component?
A4: The junction-to-case thermal resistance (RqJC) of the WSD75100DN56 is 0.8 °C/W, supporting highly efficient heat dissipation during high-power switching states.
Q5: What are the dynamic gate charge parameters for the WSD75100DN56?
A5: Tested under a VDS of 20V and ID of 40A, the typical total gate charge (Qg) is 65 nC (with a maximum of 85 nC), the gate-source charge (Qgs) is 20 nC, and the gate-drain charge (Qgd) is 17 nC.
Q6: What is the maximum junction temperature range supported by the device?
A6: The WSD75100DN56 operates safely at a maximum junction temperature (TJ) of up to 150°C and maintains a storage temperature range from -55°C up to 150°C.
