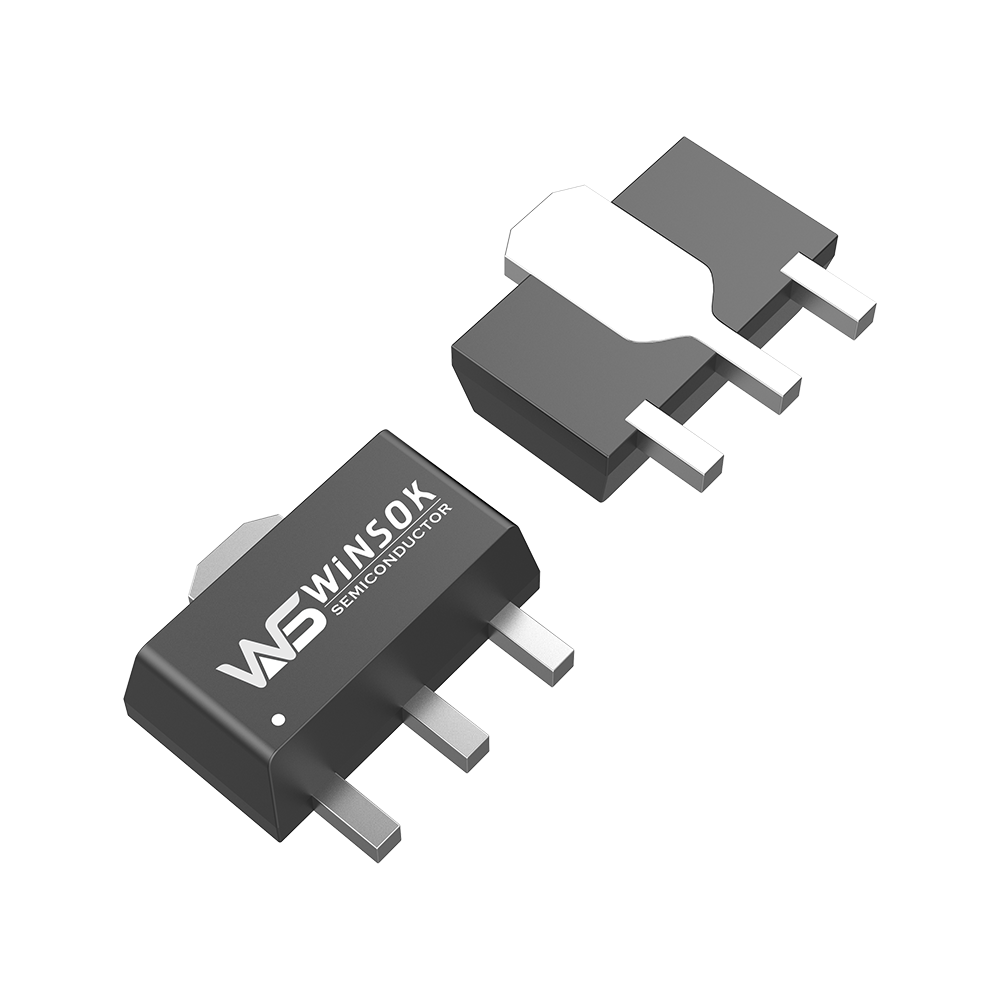

The voltage of WST2026 MOSFET is 30V, the current is 7A, the resistance is 23mΩ, the channel is N-Ch, and the package is SOT-89-3L.
| Part number | Configuration | Type | VDS (V) | VGS ±(V) | ID (A) | RDS(ON)(mΩ) | Ciss (pF) | Package | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| @10V | @6V | @4.5V | @2.5V | @1.8V | |||||||||||||
| Max. | Typ. | Max. | Typ. | Max. | Typ. | Max. | Typ. | Max. | Typ. | Max. | Typ. | Max. | |||||
| WSE3088 | Single | N-Ch | 30 | 20 | 7 | - | - | - | - | 23 | 28 | 31 | 38 | - | - | 360 | SOT-89-3L |
Cross Reference Models: POTENS PDK2314, dintek DTC3056, DTC3058, DTC5058
A1: The WST2026 MOSFET features a voltage rating of 30V, a current rating of 7A, and a low on-resistance of 23mΩ. It is designed as an N-Channel MOSFET and is housed in a compact SOT-89-3L package.
A2: This device is commonly used in Car Electronics, LED Lights, Audio systems, Digital Products, Small Appliances, and various Consumer Electronics applications.
A3: The WSE3088 is an N-Channel MOSFET with a 30V drain-source voltage, a gate-source voltage (VGS) of ±20V, and a current capacity of 7A. It features a resistance of 23mΩ at 4.5V (Typ.) and 31mΩ at 2.5V (Typ.), also packaged in SOT-89-3L.
A4: The package type is SOT-89-3L. It is a small outline transistor package designed for excellent thermal performance and space efficiency on printed circuit boards (PCBs).
A5: Yes, replacement and equivalent options include the POTENS PDK2314, dintek DTC3056, DTC3058, and DTC5058.
