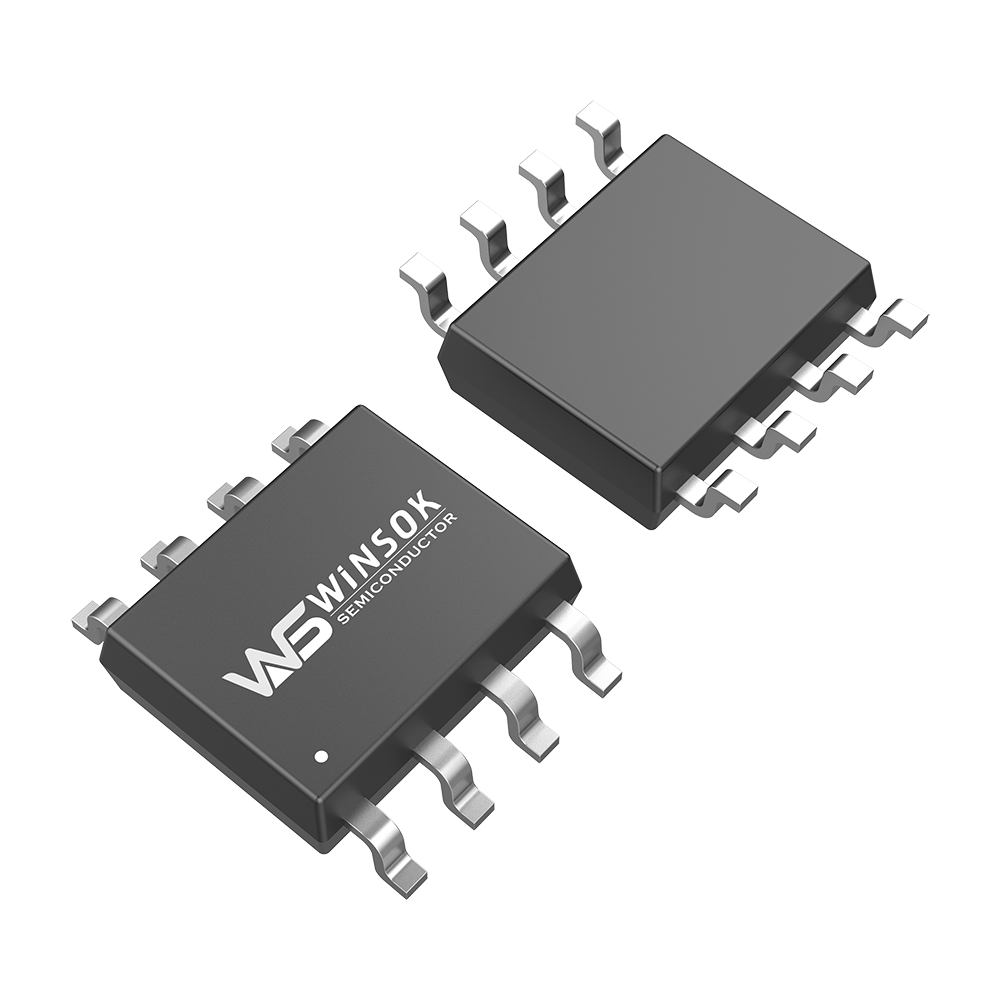

The voltage of WSP06N10 and WSP06N10L MOSFET is 100V, the current is 4.5A, the resistance is 85mΩ, utilizing an N-channel configuration, packaged in a robust SOP-8 format.
What are the core technical parameters of the WSP06N10 MOSFET?
The WSP06N10 MOSFET operates at a maximum voltage of 100V, supports a continuous drain current of 4.5A, features an RDS(ON) resistance of 85mΩ, and comes in an SOP-8 package with N-channel configuration.
What is the difference between WSP06N10 and WSP06N10L?
While both share the same 100V voltage rating and SOP-8 package, the WSP06N10L supports a higher current of 6A and features a lower typical/maximum RDS(ON) resistance of 58mΩ/70mΩ at 10V compared to the WSP06N10's 4.5A rating.
In what applications are these MOSFETs commonly used?
They are widely utilized in automotive electronics, POE (Power over Ethernet) systems, LED lamp drivers, audio equipment, digital products, small household appliances, consumer electronics, and protection boards.
Which brands offer equivalent/cross-reference MOSFETs?
Equivalent MOSFETs can be cross-referenced with brands such as AOS (AO4286, AO4486), Onsemi/Fairchild (FDS3692), Vishay (Si4590DY), Panjit (PJL9450A), Sinopower (SM1A23NSK series), Niko-Sem, Potens, and Dintek.
What is the input capacitance (Ciss) for these devices?
The input capacitance (Ciss) is 940pF for the WSP06N10 and 920pF for the WSP06N10L, enabling reliable high-frequency switching operations.
