WSP4407 / WSP4407A
-30V
-13A
9.6mΩ
P-channel, SOP-8
| Part number | Configuration | Type | VDS | VGS | ID (A) | RDS(ON)(mΩ) | Ciss | Package | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (V) | ±(V) | Max. | @10V | @6V | @4.5V | @2.5V | @1.8V | (pF) | |||||||||
| Typ. | Max. | Typ. | Max. | Typ. | Max. | Typ. | Max. | Typ. | Max. | ||||||||
| WSP4407 | Single | P-Ch | -30 | 20 | -13 | 9.6 | 15 | - | - | 15 | 21 | - | - | - | - | 1550 | SOP-8 |
| WSP4407A | Single | P-Ch | -30 | 20 | -11 | 12 | 14 | - | - | 15 | 21 | - | - | - | - | 1550 | SOP-8 |
The WSP4407 is a P-channel MOSFET in a SOP-8 package. It supports a drain-source voltage (Vds) of -30V, a continuous drain current (Id) of -13A, and features a low typical resistance (Rds(on)) of 9.6mΩ.
While both devices share a -30V rating, P-channel structure, and SOP-8 package, the WSP4407 supports a continuous current of -13A with a 9.6mΩ RDS(ON) typical rating, whereas the WSP4407A supports a continuous current of -11A with a 12mΩ RDS(ON) typical rating.
These MOSFETs are widely applied in electronic cigarettes, controllers, digital products, small household appliances, and various consumer electronics.

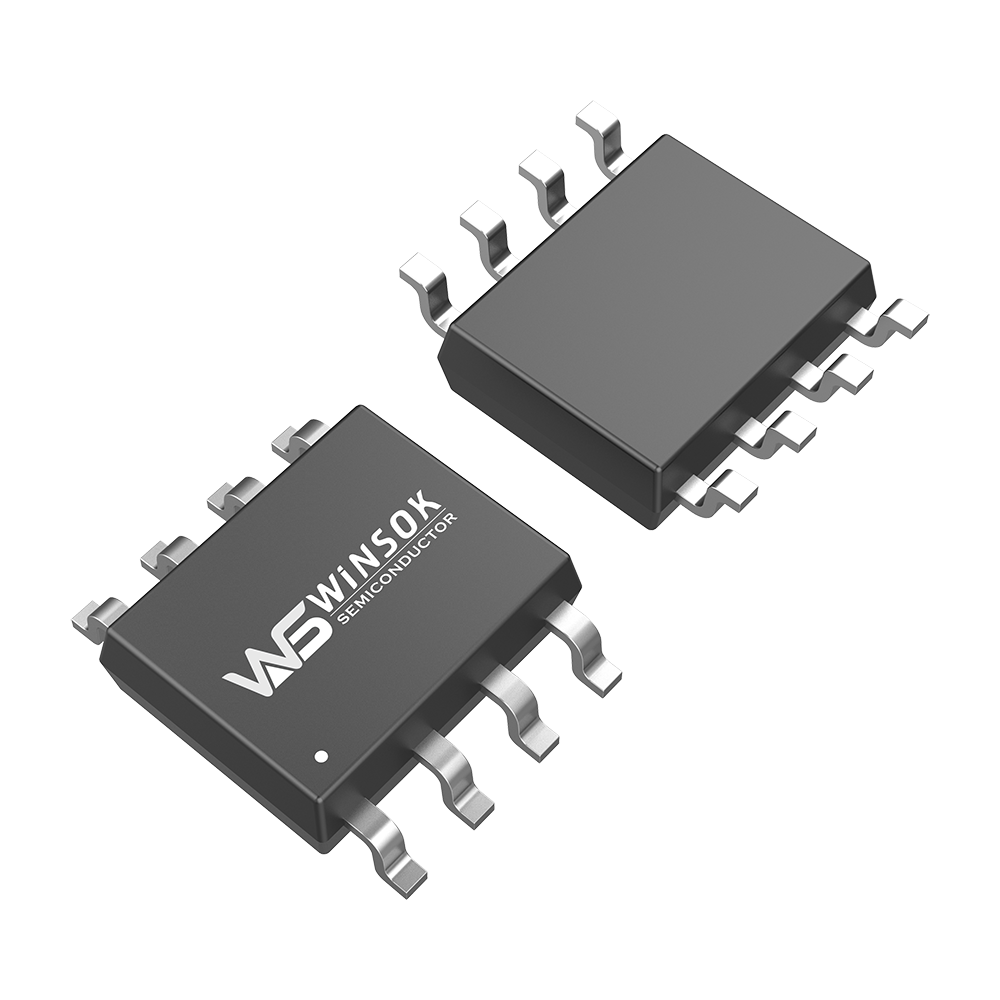

Both components are supplied in the standard SOP-8 surface-mount package.
Equivalents include AO4407/AO4407A (AOS), FDS6673BZ (Onsemi/Fairchild), Si4825DDY (Vishay), STS10P3LLH6 series (STMicroelectronics), TPC8125 (Toshiba), PJL94153 (Panjit), SM4305PSK (Sinopower), PV507BA/P1003EVG (Niko-Sem), PDS4903 (Potens), and DTM4407/DTM4415/DTM4417 (Dintek).
