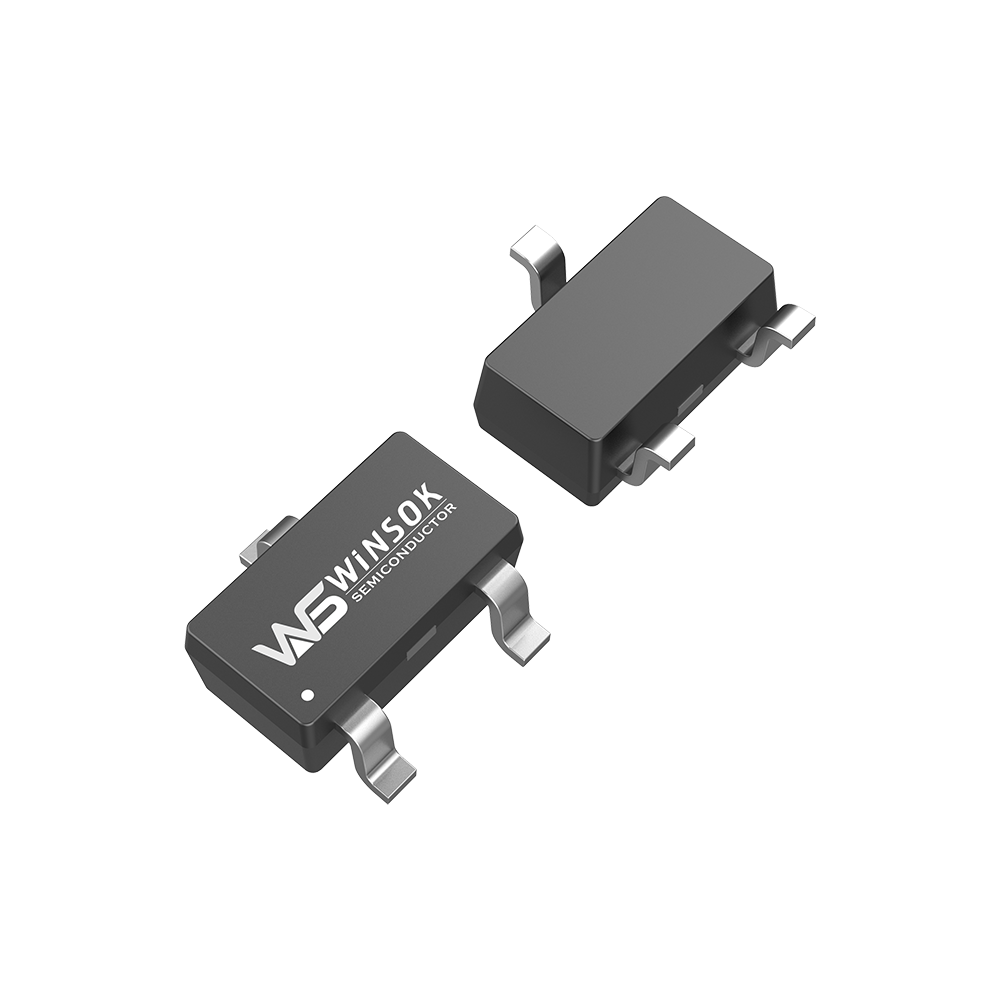

ODM WST05N10 WST05N10L N-channel 100V 2.8A SOT-23-3L WINSOK MOSFET Suppliers, Buy

Part Number：WST05N10 WST05N10L BVDSS：100V ID：2.8A RDSON：135mΩ Channel：N-channel Package：SOT-23-3L

Send Inquiry

Product Description

The voltage of WST05N10 and WST05N10L MOSFET is 100V, with a current capacity of up to 3A, static drain-source resistance as low as 120mΩ (typically 135mΩ for WST05N10), configured in an N-channel design, and housed in the compact SOT-23-3L package.

100V Voltage Rating

Up to 3A Continuous Current

SOT-23-3L Package

Primary Applications

Automotive electronics MOSFET

LED light MOSFET

Audio MOSFET

Digital product MOSFET

Small household appliances MOSFET

Consumer electronics MOSFET

Cross References & Equivalents

AOS MOSFET: AO3442, AOSS62934

PANJIT MOSFET: PJA3470

Potens MOSFET: PDN0910S

Technical Parameters Table

Part number	Configuration	Type	VDS	VGS	ID (A)	RDS(ON)(mΩ)						RDS(ON)(mΩ)				Ciss	Package
			VDS	VGS	ID (A)	@10V		@6V		@4.5V		@2.5V		@1.8V		Ciss
			(V)	±(V)	Max.	Typ.	Max.	Typ.	Max.	Typ.	Max.	Typ.	Max.	Typ.	Max.	(pF)
WST05N10	Single	N-Ch	100	20	2.8	135	145	-	-	150	220	-	-	-	-	690	SOT-23-3L
WST05N10L	Single	N-Ch	100	20	3	120	145	-	-	145	170	-	-	-	-	650	SOT-23-3L

Frequently Asked Questions (FAQ)

What are the key technical specifications of WST05N10?

The WST05N10 MOSFET is an N-channel device featuring a drain-source voltage (VDS) of 100V, a continuous current (ID) of 2.8A, a typical static resistance (RDS(ON)) of 135mΩ at 10V, and a package type of SOT-23-3L.

What is the difference between WST05N10 and WST05N10L?

While both MOSFETs support a VDS of 100V and use the SOT-23-3L package, the WST05N10L offers a slightly higher current capacity of 3A (compared to 2.8A for WST05N10) and a lower typical RDS(ON) resistance of 120mΩ at 10V.

What applications are these MOSFETs commonly used in?

They are ideally suited for automotive electronics, LED lighting circuits, audio equipment, digital consumer products, small household appliances, and general consumer electronic devices.

What are the alternative equivalent parts for these devices?

Equivalent MOSFET models include AOS AO3442 and AOSS62934, PANJIT PJA3470, and Potens PDN0910S.

What package is used for WST05N10 and WST05N10L?

Both devices are packaged in the SOT-23-3L surface-mount package, which provides a compact footprint for space-constrained PCB layouts.
