What are the main technical parameters of WST3407A?
The WST3407A is a P-channel MOSFET with a drain-source voltage (VDS) of -30V, continuous drain current (ID) of -5.3A, static drain-source on-resistance (RDS(ON)) of 75mΩ, and is packaged in SOT-23-3L.
How does WST3407 differ from WST3407A?
While both share the -30V rating and SOT-23-3L package, the WST3407 offers a higher drain current rating of -5.8A and lower on-resistance values (41mΩ Typ @ 10V) compared to the WST3407A (75mΩ Typ @ 10V).
What package type is used for these MOSFETs?

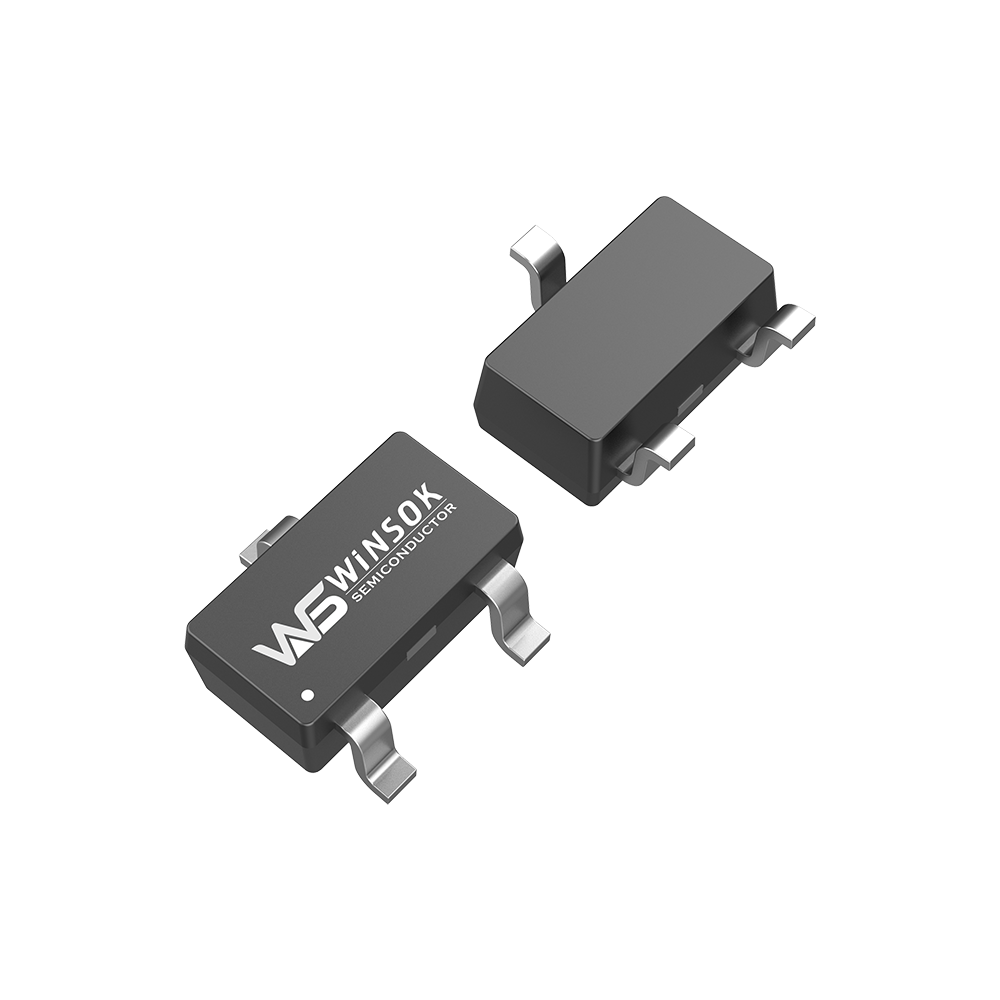

Both the WST3407A and WST3407 MOSFETs are encapsulated in the compact SOT-23-3L package, which is suitable for space-constrained designs.
What are the typical applications for WST3407 and WST3407A?
These devices are commonly used in e-cigarettes, motor controllers, digital products, small household appliances, and various consumer electronics applications.
Which standard MOSFETs can be cross-referenced with these models?
Equivalent cross-reference models include AO3409, AO3403, and AO3401 from AOS; Si2347DS from Vishay; SSM3J332R and SSM3J372R from Toshiba; SM2315PSA from Sinopower; P5103EMG from Niko-Sem; PDN2309S from Potens; and DTS3401/DTS3407 series from Dintek.
