What are the key technical parameters of the WINSOK WSD75100DN56 MOSFET?
The WSD75100DN56 is an N-channel FET with a drain-source breakdown voltage (BVDSS) of 75V, continuous drain current of 100A, and a low static drain-source on-resistance of 5.3mΩ, packaged in a DFN5X6-8 format.
Which competitor models can the WINSOK WSD75100DN56 replace?
It acts as an equivalent replacement for STMicroelectronics STL1N8F7, INFINEON / IR BSC42NE7NS3G and BSC36NE7NS3G, as well as POTENS Semiconductor PDC7966X.

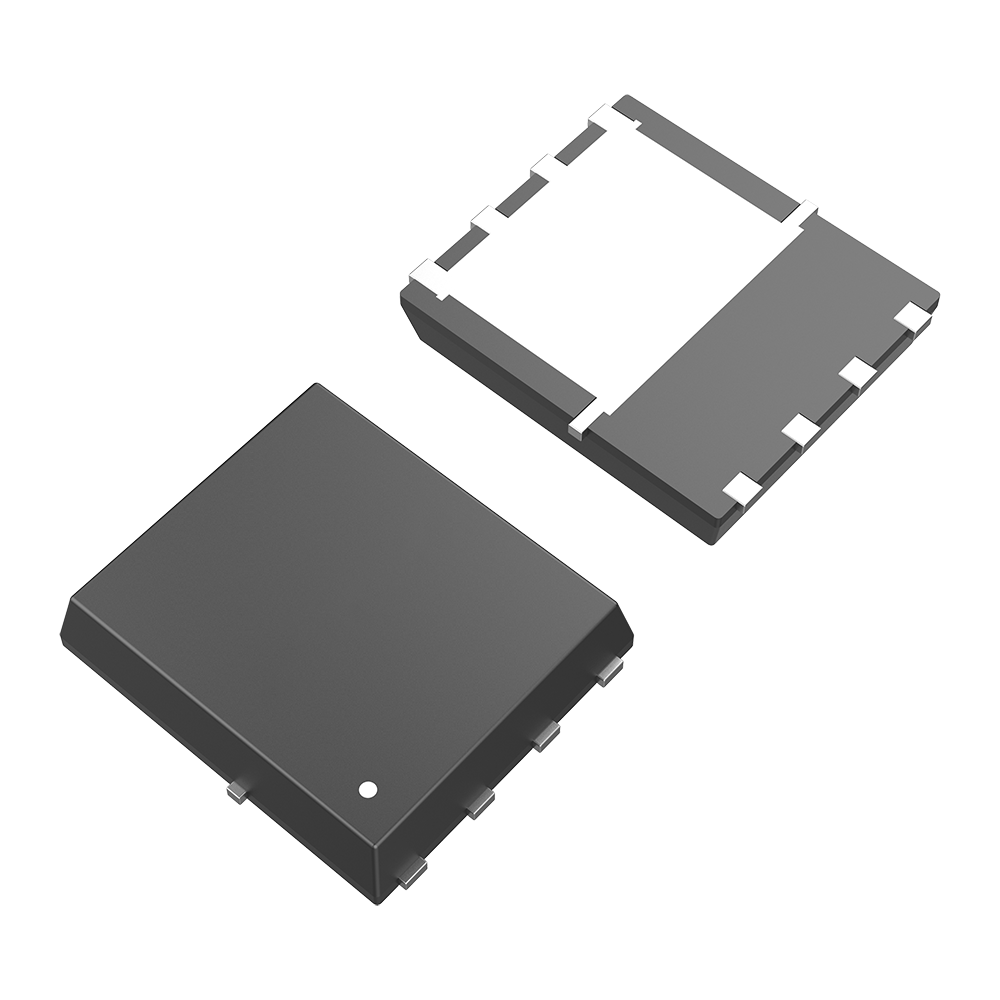

What are the benefits of the DFN5X6-8 package used in WSD75100DN56?
The DFN5X6-8 package offers a compact footprint with excellent thermal performance, making it ideal for high-density power supply designs where space is limited and heat dissipation is critical.
Is this N-channel MOSFET suitable for wireless charging applications?
Yes, because of its low resistance and optimal switching speed, it is widely utilized in high-efficiency wireless charging systems, drone power boards, and smart consumer devices.
How does the 5.3mΩ resistance benefit design efficiency?
The low RDS(on) of 5.3mΩ minimizes power losses during conduction, preventing excessive heat buildup and improving the energy efficiency of chargers, controllers, and household appliances.
