Q: What are the primary specifications of the WST2026 MOSFET?
The WST2026 features a voltage rating of 30V, a continuous current threshold of 19A, a typical resistance of 22mΩ, N-Channel configurations, and is housed in a compact DFN3X3-8S package.
Q: What applications are recommended for these MOSFET devices?
These MOSFETs are highly suitable for electronic cigarettes, wireless chargers, system controllers, digital products, small household appliances, and general consumer electronics.

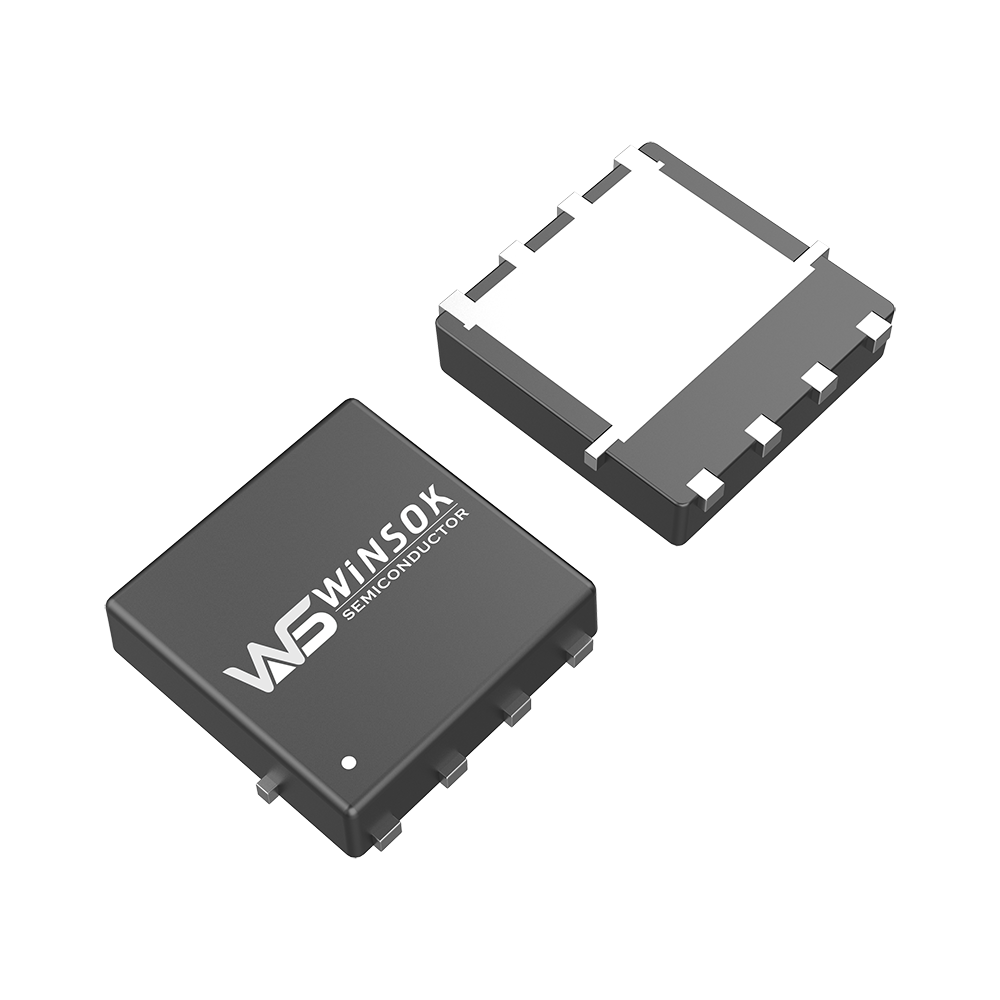

Q: How does WSD3028DN33 compare to WST2026?
Both are N-Channel, 30V, 19A MOSFETs with DFN3X3-8S packages, presenting highly compatible electrical characteristics suitable for identical layouts.
Q: What are the resistance characteristics (RDS(ON)) of the WSD3028DN33 at different voltages?
At @10V, typical resistance is 22mΩ (Max 25mΩ); and at @4.5V, typical resistance is 32mΩ (Max 35mΩ).
Q: Which industry models can cross-reference or replace these MOSFETs?
Cross-references include AOS AON7408/AON7406, Fairchild FDMC7678/FDMS7672, ST STL11N3LLH6, TI CSD87312Q3E, and Niko PE610SA among others.
Q: What is the input capacitance (Ciss) value for the WSD3028DN33?
The typical input capacitance (Ciss) for the WSD3028DN33 is 360pF.
