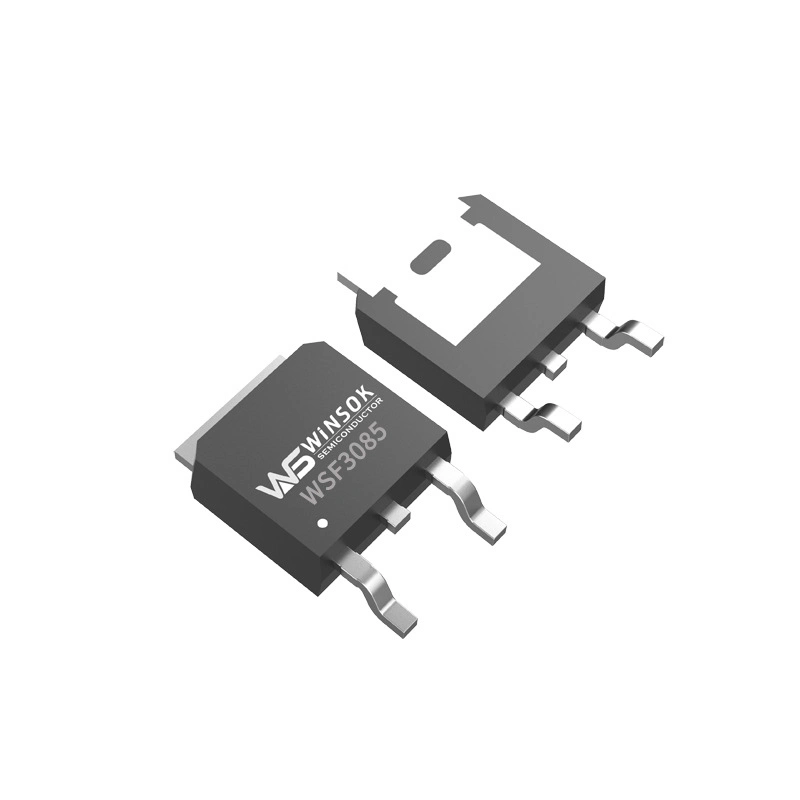

The WSF3085 is the highest performance trench N-ch MOSFET with extreme high cell density, which provides excellent RDSON and gate charge for most of the synchronous buck converter applications. The WSF3085 meets the RoHS and Green Product requirement, with 100% EAS guaranteed and full function reliability approved.
| Symbol | Parameter | Rating | Units | |
|---|---|---|---|---|
| 10s | Steady State | |||
| VDS | Drain-Source Voltage | 30 | V | |
| VGS | Gate-Source Voltage | ±20 | V | |
| ID@TC=25°C | Continuous Drain Current, VGS @ 10V¹ | 85 | A | |
| ID@TC=100°C | Continuous Drain Current, VGS @ 10V¹ | 57 | A | |
| ID@TA=25°C | Continuous Drain Current, VGS @ 10V¹ | 27 | 17 | A |
| ID@TA=70°C | Continuous Drain Current, VGS @ 10V¹ | 23 | 14.5 | A |
| IDM | Pulsed Drain Current² | 160 | A | |
| EAS | Single Pulse Avalanche Energy³ | 252 | mJ | |
| IAR | Avalanche Current | 48 | A | |
| PD@TC=25°C | Total Power Dissipation⁴ | 53 | W | |
| PD@TA=25°C | Total Power Dissipation⁴ | 6 | 2.0 | W |
| TSTG | Storage Temperature Range | -55 to 175 | °C | |
| TJ | Operating Junction Temperature Range | -55 to 175 | °C | |
