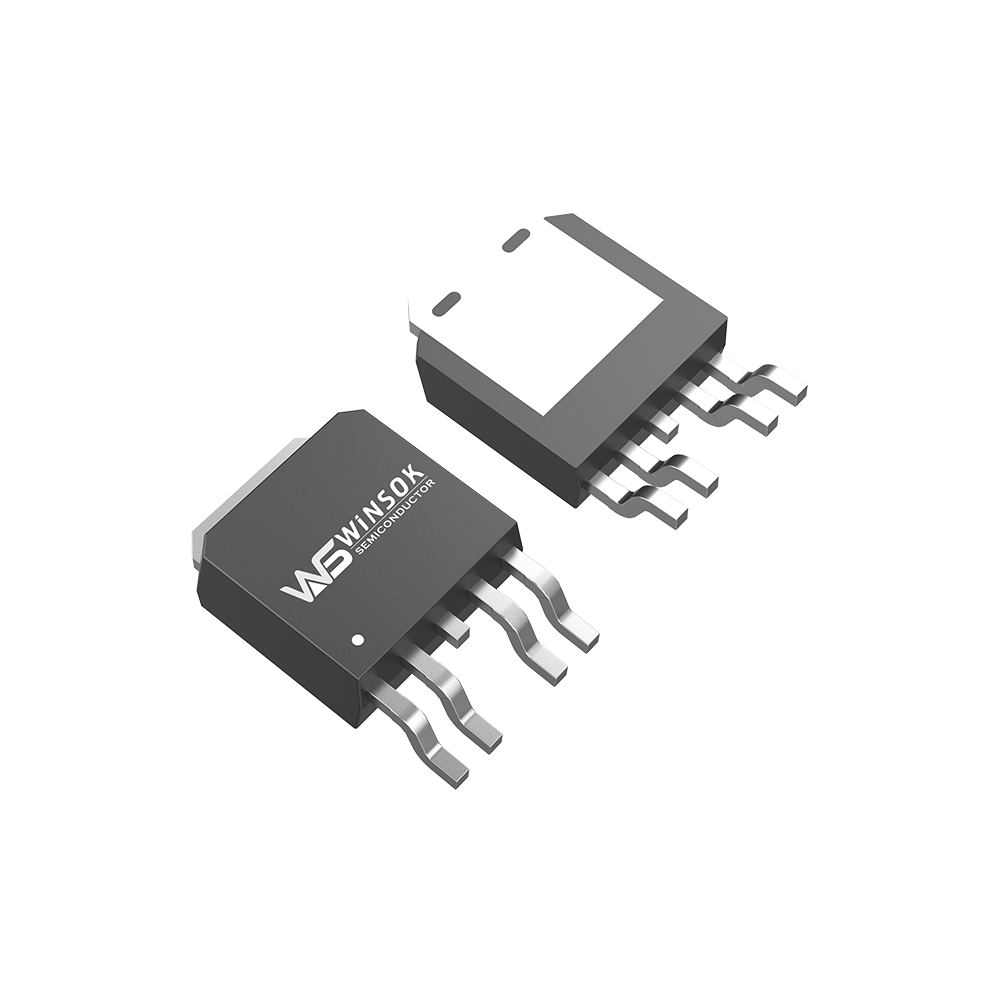

The WSF4012B and WSF4015 are high-performance N+P channel MOSFETs designed to meet diverse power management and switching requirements.
| Part Number | Configuration | Type | VDS (V) | VGS (±V) | ID (A) | RDS(ON) (mΩ) | Ciss (pF) | Package | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| @10V | @6V | @4.5V | @2.5V | @1.8V | |||||||||||||
| Min/Max | Typ | Max. | Typ. | Max. | Typ. | Max. | Typ. | Max. | Typ. | Max. | Typ. | ||||||
| WSF4012B | N+P | N-Ch | 40 | 20 | 28 | 18 | 26 | - | - | 25 | 35 | - | - | - | - | 591 | TO-252-4L |
| P-Ch | -40 | 20 | -20 | 32 | 42 | - | - | 48 | 63 | - | - | - | - | 1415 | |||
| WSF4015 | N+P | N-Ch | 40 | 20 | 28 | 18 | 26 | - | - | 25 | 35 | - | - | - | - | 591 | TO-252-4L |
| P-Ch | 40 | 20 | -20 | 32 | 42 | - | - | 48 | 63 | - | - | - | - | 1415 | |||
Cross-reference: POTENS PDD4701
What type of channel configuration do the WSF4012B and WSF4015 MOSFETs have?
Both WSF4012B and WSF4015 feature an N+P complementary channel configuration.
What are the current ratings for the N-channel and P-channel in these devices?
The continuous drain current (ID) is rated at 28A for the N-channel and -20A for the P-channel.
What is the typical on-resistance (RDS(ON)) at 10V?
The typical RDS(ON) value at a gate-source voltage (VGS) of 10V is 18mΩ for the N-channel and 32mΩ for the P-channel.
What package style is used for these MOSFET parts?
These MOSFETs are housed in a compact TO-252-4L package, suitable for high-density mounting.
In what products can WSF4012B and WSF4015 be applied?
They are ideal for electronic cigarettes, wireless chargers, motors, emergency power supplies, drones, medical equipment, car chargers, controllers, digital products, small household appliances, and various consumer electronics.
Is there a cross-reference part available?
Yes, POTENS PDD4701 is noted as a related equivalent reference.
