What are the primary specifications of the WST2026 MOSFET?
The WST2026 is an N-Channel MOSFET with a voltage rating of 30V, a current capacity of 0.6A, a resistance value of 7500mΩ, and it comes in a compact SOT-723-3L package.
What typical applications use the WST2026 and WST2002 MOSFETs?
These MOSFETs are widely applied in smartwatches, bracelets, micro portable digital devices, protective plates, and communication modules due to their compact size and efficient specifications.
What is the package type for these MOSFETs?

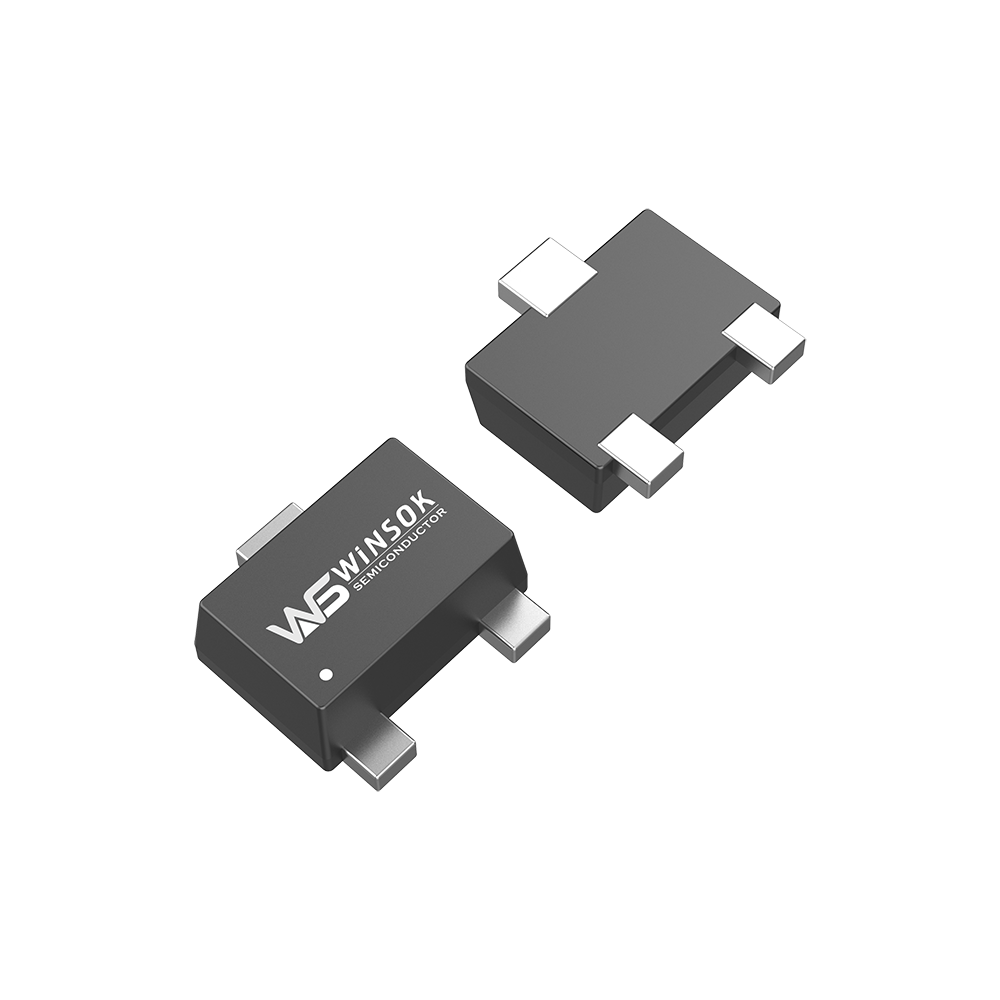

Both the WST2026 and WST2002 MOSFET models utilize the small footprint SOT-723-3L package design.
What are the electrical characteristics of the WST2002 MOSFET?
The WST2002 MOSFET features an N-Channel configuration with a VDS of 30V, VGS of ±20V, and ID of 0.6A. It has a typical RDS(ON) resistance of 7500mΩ and an input capacitance (Ciss) of 25pF.
Does the WST2002 offer ESD protection?
Yes, the WST2002 MOSFET features a "Single+ESD" configuration, providing integrated electrostatic discharge protection.
What are the equivalent or cross-reference models for these parts?
Compatible cross-reference or equivalent parts include the Sinopower SM1202NSAS and POTENS PDEU2320X.
