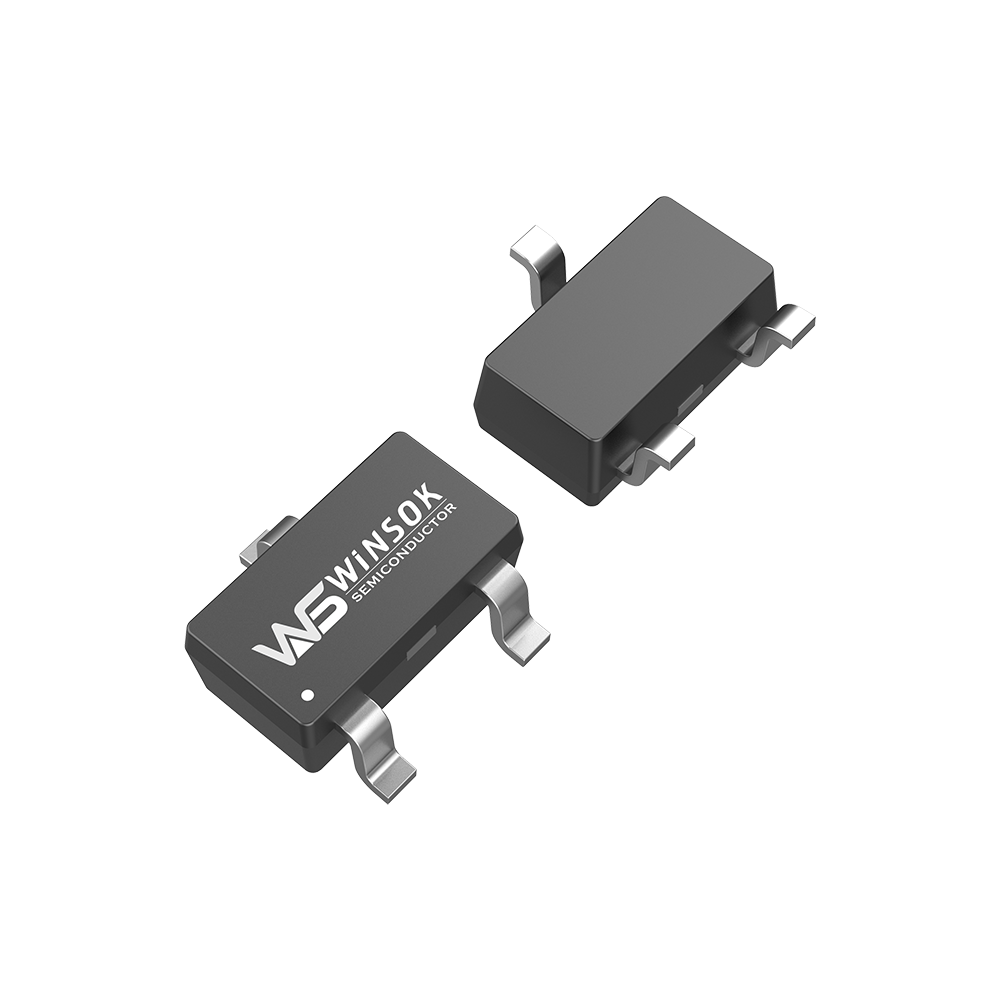

The voltage of WST2333A WST2303 MOSFET is -12V, the current is -6A, the resistance is 23mΩ, the channel is P-channel, and the package is SOT-23-3L.
| Part number | Configuration | Type | VDS (V) | VGS ±(V) | ID (A) | RDS(ON)(mΩ) Max. / Typ. | RDS(ON)(mΩ) Max. / Typ. | Ciss (pF) | Package | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| @10V | @6V | @4.5V | @2.5V | @1.8V | |||||||||||||
| Typ. | Max. | Typ. | Max. | Typ. | Max. | Typ. | Max. | Typ. | Max. | Typ. | Max. | Typ. | Max. | ||||
| WST2333A | Single | P-Ch | -12 | 8 | -6 | - | - | - | - | 23 | 32 | 32 | 40 | 42 | 52 | 1025 | SOT-23-3L |
| WST2303 | Single | P-Ch | -20 | 8 | -3.8 | - | - | - | - | 65 | 80 | 80 | 100 | 105 | 130 | 677 | SOT-23-3L |
