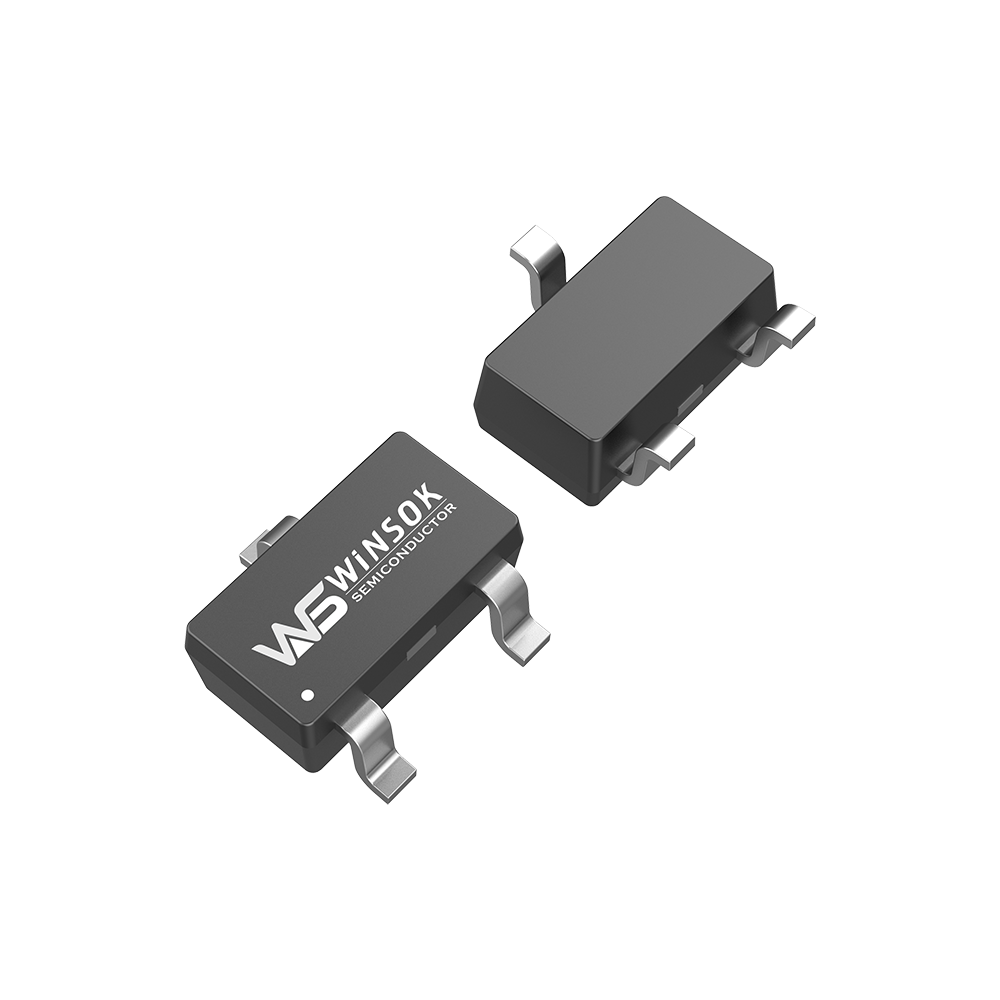

The WST6066A and WST6066 N-channel MOSFETs are designed for high efficiency and reliability. The WST6066A operates at a voltage rating of 60V, supporting a current of 2.1A and resistance of 85mΩ, all packaged within a space-efficient SOT-23-3L form factor.
| Part number |
Configuration |
Type |
VDS |
VGS |
ID (A) |
RDS(ON)(mΩ) |
RDS(ON)(mΩ) |
Ciss |
Package |
||||||||
| @10V |
@6V |
@4.5V |
@2.5V |
@1.8V |
|||||||||||||
| (V) |
±(V) |
Max. |
Typ. |
Max. |
Typ. |
Max. |
Typ. |
Max. |
Typ. |
Max. |
Typ. |
Max. |
(pF) |
||||
| WST6066A |
Single |
N-Ch |
60 |
20 |
2.1 |
85 |
110 |
- |
- |
95 |
120 |
- |
- |
- |
- |
295 |
SOT-23-3L |
| WST6066 |
Single |
N-Ch |
60 |
20 |
5.2 |
33 |
40 |
- |
- |
40 |
50 |
- |
- |
- |
- |
1027 |
SOT-23-3L |
The following MOSFET models share similar parameters and can act as functional equivalents or replacements:
The WST6066A is an N-channel MOSFET with a maximum voltage rating of 60V, a current handling capacity of 2.1A, resistance of 85mΩ (typical), and is packaged in a SOT-23-3L configuration.
While both are N-channel MOSFETs rated at 60V and packaged in SOT-23-3L, the WST6066 handles a higher current of 5.2A and features a lower typical resistance of 33mΩ compared to the WST6066A (2.1A and 85mΩ).
They are commonly applied in automotive electronics, LED lights, audio electronics, digital products, small household appliances, and various consumer electronics systems.
Compatible cross-references include AOS AO3422, Onsemi/Fairchild NTR5198NL & NVR5198NL, Vishay Si2308BDS, Panjit PJA3460, Sinopower SM2310NAA, Niko-Sem P8806BM, Potens PDN6912S, and Dintek DTS6400 & DTS6410.
Both the WST6066A and WST6066 N-channel single configuration MOSFETs are packaged in the SOT-23-3L design.
