Latest design WSF34V10 N+P channel -100V/100V 30A/-26A TO-252-4L WINSOK MOSFET Distributor, Buy
1 / 1
Latest design WSF34V10 N+P channel -100V/100V 30A/-26A TO-252-4L WINSOK MOSFET Distributor, Buy

Latest design WSF34V10 N+P channel -100V/100V 30A/-26A TO-252-4L WINSOK MOSFET Distributor, Buy

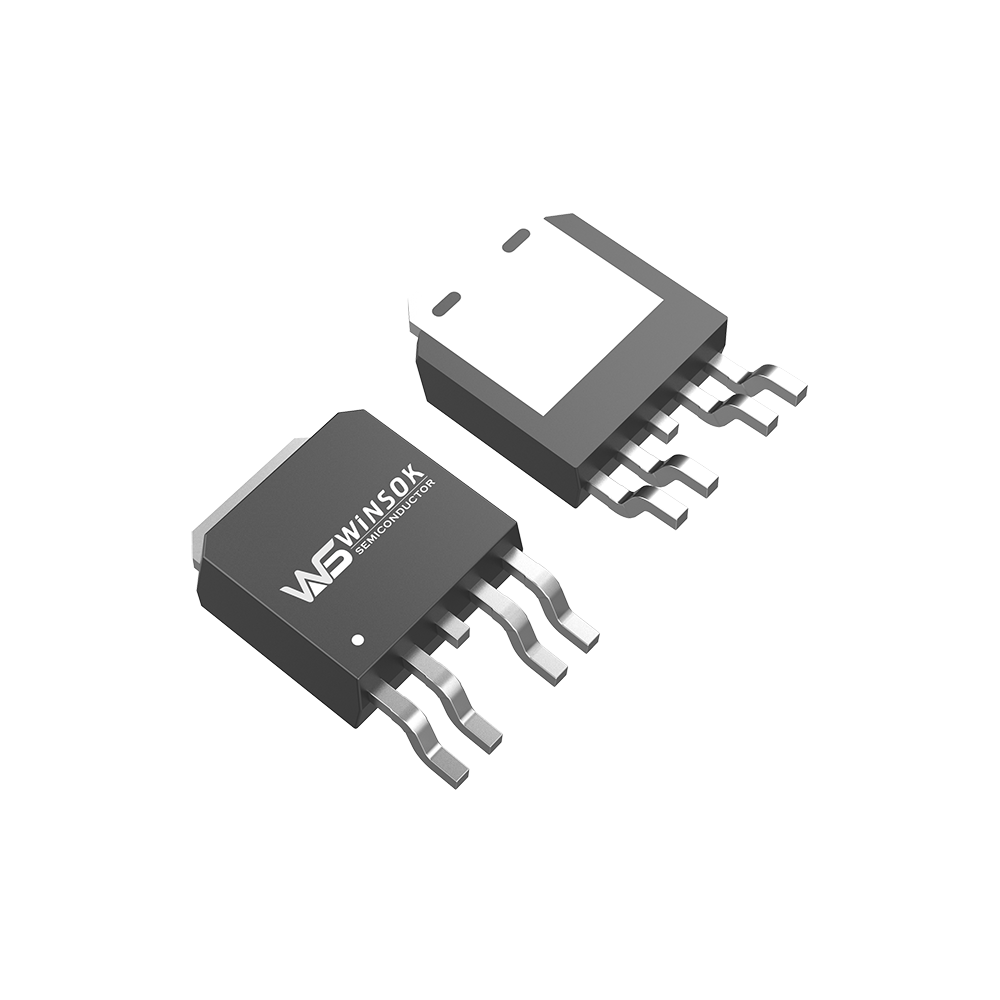

Part Number：WSF34V10 BVDSS：-100V/100V ID：30A/-26A RDSON：38mΩ Channel：N+P channel Package：TO-252-4L
Send Inquiry

Product Description

⚡
Voltage (VDS)
-100V / 100V
🔌
Current (ID)
30A / -26A
Ω
Resistance (RDS(ON))
38mΩ
ꤘ
Channel Type
N+P Channel
📡
Package
TO-252-4L
The WSF34V10 MOSFET features an N+P channel configuration with high reliability and performance, providing excellent efficiency under demanding switching conditions.
Applications
Electronic cigarettes Wireless chargers Motors Emergency power Drones Medical devices Car chargers Controllers Digital products Small appliances Consumer electronics
Datasheet Parameters

Part number

Configuration

Type

VDS (V)

VGS ±(V)

ID (A)

RDS(ON) (mΩ)

RDS(ON) (mΩ)

Ciss (pF)

Package

@10V

@6V

@4.5V

@2.5V

@1.8V
Max. Typ. Max. Typ. Max. Typ. Max. Typ. Max. Typ. Max. Typ. Max. Typ.
WSF34V10 N+P N-Ch 100 20 30 38 50 - - 42 58 - - - - 1964 TO-252-4L
P-Ch -100 20 -26 84 105 - - 90 130 - - - - 3985
Frequently Asked Questions
What are the channel types available in the WSF34V10 MOSFET?
The WSF34V10 is a complementary N+P channel MOSFET, combining both N-channel and P-channel transistors in a single package.
What is the voltage rating (VDS) of the WSF34V10 MOSFET?
The drain-source voltage (VDS) is 100V for the N-channel and -100V for the P-channel.
What is the standard package type for this MOSFET?
This MOSFET is designed and packaged in a TO-252-4L format, suitable for surface mounting with optimized thermal performance.
What is the typical on-resistance (RDS(ON)) value?
The typical on-resistance (RDS(ON)) is 38mΩ at 10V for the N-channel, and 84mΩ at 10V for the P-channel.
What are the continuous current ratings for both channels?
The continuous drain current (ID) capacity is 30A for the N-channel and -26A for the P-channel.
What are the primary applications for the WSF34V10?
It is ideal for electronic cigarettes, wireless chargers, motor drive systems, emergency power systems, drones, car chargers, medical devices, and other small consumer electronics.
