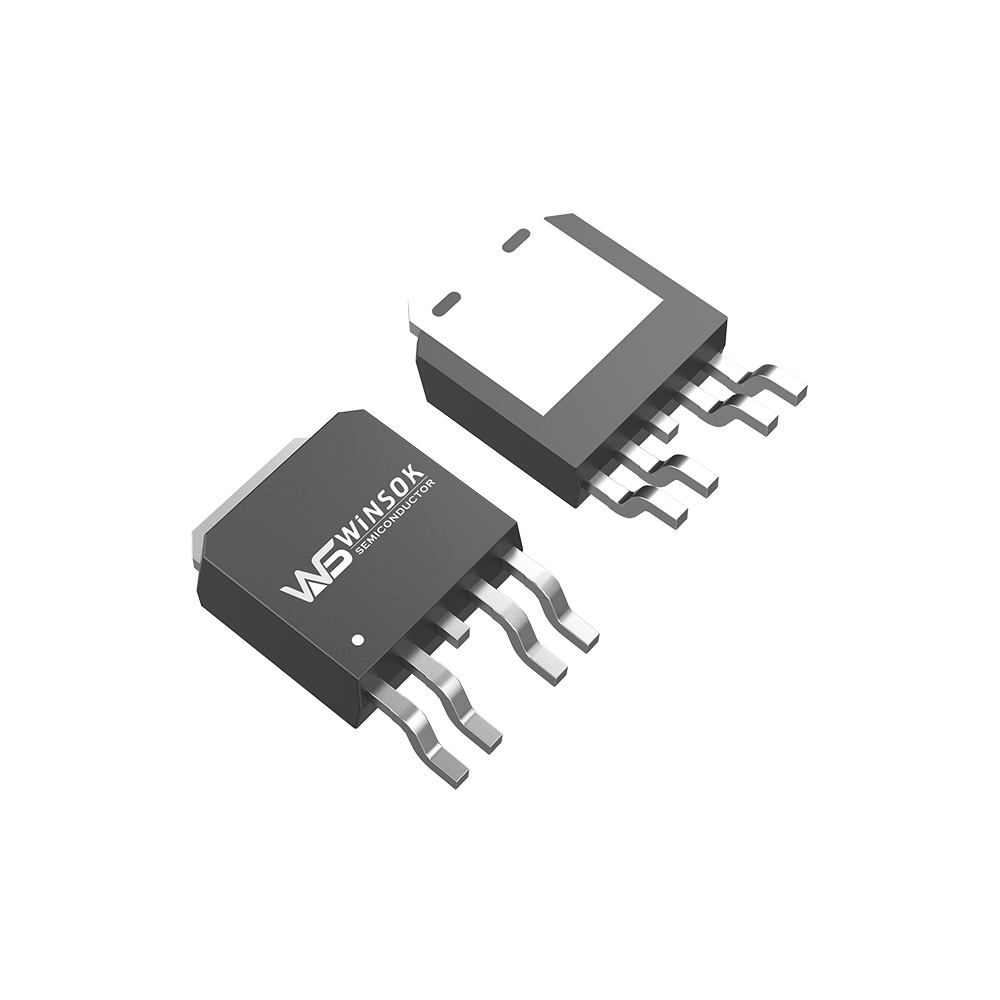

The WSF6032 is a high-performance N+P channel configuration MOSFET designed for efficient power management and switching applications. Offering excellent low on-resistance and reliable voltage handling, this component is optimized for modern electronics requiring high efficiency in compact designs.
Voltage (VDS)
-60V / 60V
Current (ID)
40A / -35A
Resistance (RDS(ON))
13.5mΩ
Channel Type
N+P Channel
Package
TO-252-4L
Applications
Electronic cigarettes
Wireless chargers
Motors
Emergency power
Drones
Medical
Car chargers
Controllers
Digital products
Small appliances
Consumer electronics
Specifications Datasheet
| Part number |
Configuration |
Type |
VDS (V) |
VGS ±(V) |
ID (A) |
RDS(ON) (mΩ) |
RDS(ON) (mΩ) |
Ciss (pF) |
Package |
| @10V |
@6V |
@4.5V |
@2.5V |
@1.8V |
| Max. |
Typ. |
Max. |
Typ. |
Max. |
Typ. |
Max. |
Typ. |
Max. |
Typ. |
Max. |
Typ. |
Max. |
Typ. |
| WSF6032 |
N+P |
N-Ch |
60 |
20 |
40 |
13.5 |
15.5 |
- |
- |
18.5 |
22 |
- |
- |
- |
- |
1650 |
TO-252-4L |
| P-Ch |
-60 |
20 |
-35 |
31 |
35 |
- |
- |
40 |
45 |
- |
- |
- |
- |
2270 |
Frequently Asked Questions
Q What is the channel configuration of the WSF6032 MOSFET?
The WSF6032 features a complementary N+P channel configuration inside a single package, combining both N-channel and P-channel transistors.
Q What are the voltage and current limits for the N-channel and P-channel?
For the N-channel, the VDS limit is 60V with an ID of 40A. For the P-channel, the VDS limit is -60V with an ID of -35A.
Q What package type does the WSF6032 use?
It is housed in a standard TO-252-4L package, suitable for high-density surface mount configurations.
Q What is the typical on-resistance (RDS(ON)) value?
At a gate voltage (@10V VGS), the N-channel typical RDS(ON) is 13.5mΩ (with a maximum of 15.5mΩ), while the P-channel typical RDS(ON) is 31mΩ (with a maximum of 35mΩ).
Q What are the primary applications of the WSF6032?
Common applications include electronic cigarettes, wireless chargers, motor controls, emergency power supplies, drones, medical equipment, car chargers, digital products, small appliances, and general consumer electronics.
