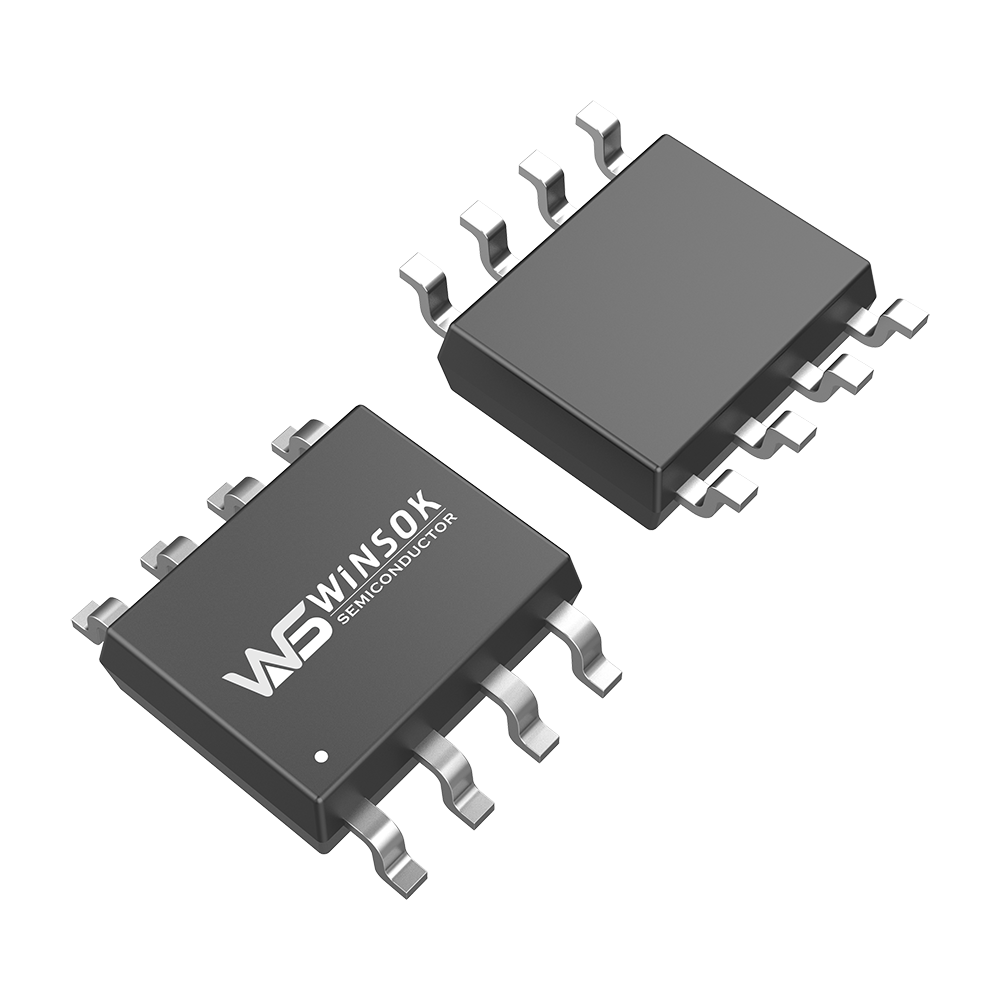

The WSP4435 and WSP4435A are high-performance P-channel MOSFETs designed for reliable power management and switching configurations. Utilizing advanced process technology, they deliver high efficiency in compact surface-mount layouts.
These P-channel MOSFETs are optimized for high-density, low-voltage power supply pathways, making them highly versatile across multiple sectors:
| Part Number | Config. | Type | VDS | VGS | ID | RDS(ON) (mΩ) | Ciss | Package | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| @ 10V | @ 4.5V | ||||||||||
| (V) | ±(V) | (A) | Typ. | Max. | Typ. | Max. | (pF) | ||||
| WSP4435 | Single | P-Ch | -30 | 20 | -8.2 | 16 | 20 | 25 | 33 | 2050 | SOP-8 |
| WSP4435A | Single | P-Ch | -30 | 20 | -8 | 20 | 23 | 25 | 33 | 1000 | SOP-8 |
The WSP4435 and WSP4435A series can serve as equivalents or direct functional replacements for various industry-standard MOSFETs from top global manufacturers:
