What are the main technical parameters of the WST2026 MOSFET?

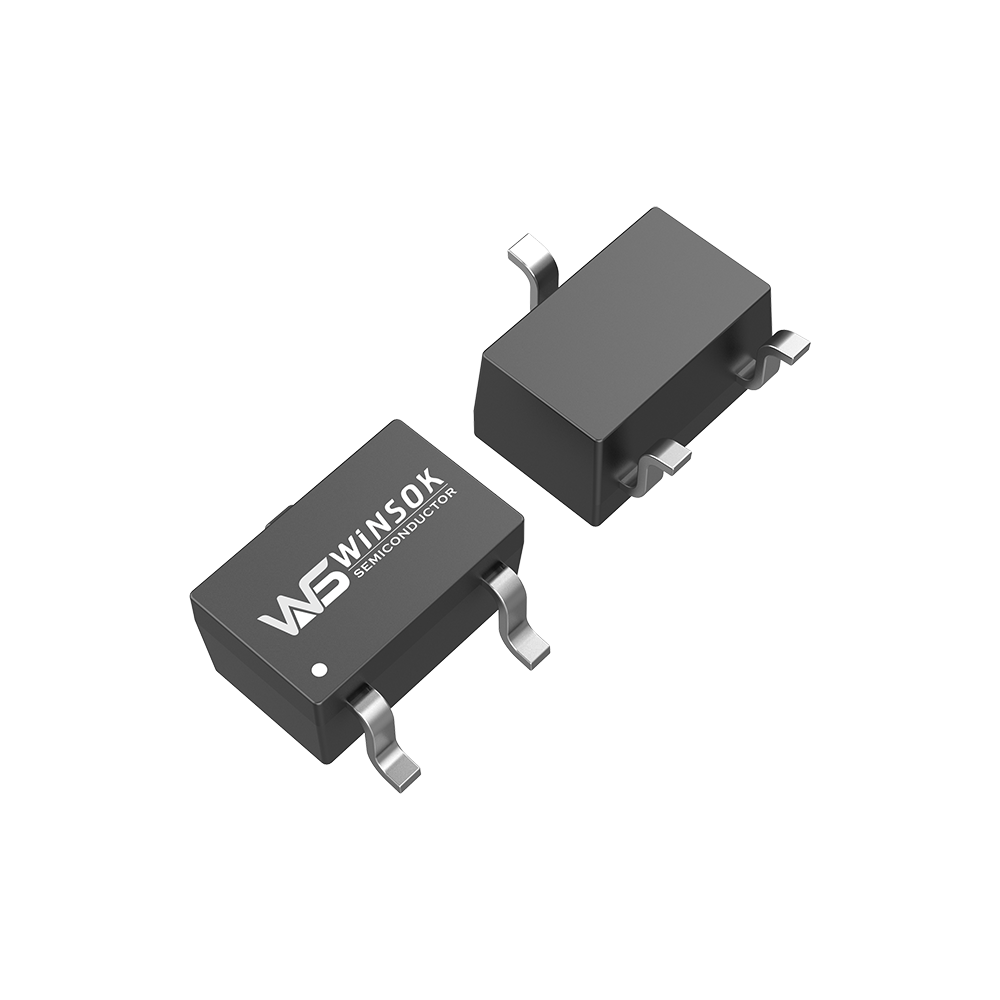

The WST2026 is an N-channel MOSFET with a drain-source voltage (VDS) of 20V, a continuous current (ID) rating of 2A, a low resistance of 27mΩ, and it is housed in a compact SOT-323-3L package.
What applications is the WST2026 MOSFET suitable for?
This MOSFET is highly optimized for miniature and portable consumer electronics, such as smartwatches, fitness bracelets, miniature portable digital hardware, and battery protective plates.
Which equivalent models can cross-reference with the WST2026?
Equivalent models include ON/Fairchild MCH3476 and MCH3481, Nexperia PMF63UNE, Toshiba SSM3K122TU, Panjit PJC7406, Potens PDEU2320Z, and Dintek DTS2012.
How does the WST2026 compare with the WST2028?
While both share the SOT-323-3L package and 20V VDS rating, the WST2026 has a 2A current rating and a lower typ/max on-resistance (27mΩ/40mΩ @4.5V) compared to the WST2028 which offers 2.1A and 50mΩ/60mΩ @4.5V.
What is the gate-source voltage (VGS) rating of the WST2026?
The WST2026 MOSFET supports a gate-to-source voltage (VGS) limit of ±12V.
What is the channel type of WST2026?
The WST2026 is an N-channel enhancement mode field-effect transistor (MOSFET).
