What are the core technical specifications of WST2333B?

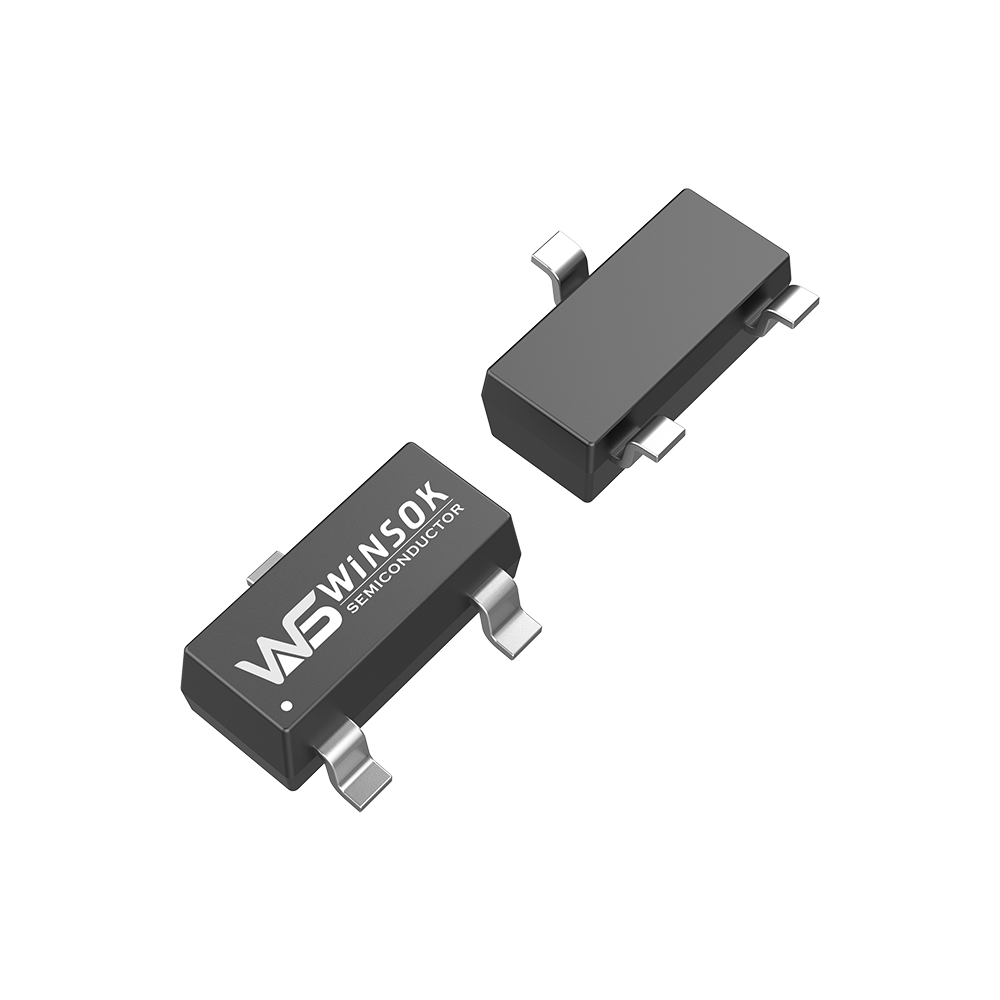

The WST2333B is a Single P-channel MOSFET with a VDS of -15V, a gate voltage VGS of ±12V, a drain current (ID) of -4.4A, a typical RDS(ON) of 40mΩ at 4.5V, and is housed in an SOT-23N package.
What are the typical applications for the WST2333B and WST2333 MOSFETs?
These MOSFETs are widely applied in E-cigarettes, digital products, small household appliances, and various other consumer electronics.
What is the package type of these MOSFETs?
Both WST2333B and WST2333 utilize the compact SOT-23N package, making them suitable for high-density, space-constrained PCB designs.
Which industry-standard MOSFETs can be cross-referenced with these models?
Compatible alternatives include AOS (AO3413, AO3415A, etc.), Onsemi/Fairchild (NTR3A085PZ, NTRV4101P), Vishay (Si2301CDS), Toshiba (SSM3J377R, SSM3J327R), Sinopower (SM2313PSA, SM2329PSA), Niko-Sem (PA102FMG), and Dintek (DTS2301A, DTS3419).
How do WST2333B and WST2333 compare in voltage and current?
The WST2333B supports a VDS of -15V with a continuous drain current of -4.4A, while the WST2333 supports a higher VDS of -20V and a continuous drain current of -6A.
