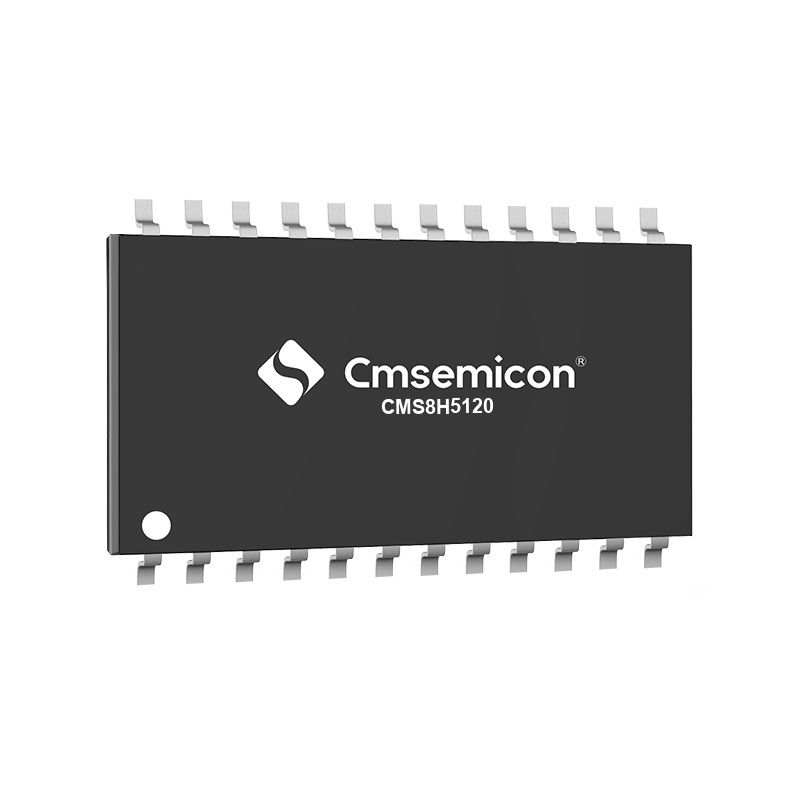

The main frequency is up to 48MHz; the working voltage is 2.1V to 3.6V; it provides 32K Flash Memory, 1K Data Flash, 4K XRAM; built-in multi-channel 12-bit SAR ADC, up to 285K oversampling function; supports 4 low-offset operational amplifiers; Support 1 PGA; support 2 6bit DAC; support 2 low offset comparators; support 6 channels of flexibly configurable PWM; support 2 UARTs, 1 SPI, 1 I2C; support 5 timers; industrial standard designed to work at -40°C to 105°C; SSOP24 package is provided.
| Parameter | Values / Details |
|---|---|
| Working Voltage | 2.1V - 3.6V @ 48Mhz |
| Working Temperature | -40℃ - 105℃ (Industrial Standard) |
| Main Frequency | Up to 48MHz |
| Package Type | SSOP24 |
This microcontroller utilizes an 8051 core capable of running at a main frequency up to 48MHz.
The chip operates on a working voltage of 2.1V to 3.6V and is designed to work under industrial standard temperatures ranging from -40°C to 105°C.
It provides 32KB of Flash ROM, 256 Bytes of General RAM, 4KB of XRAM, and 1KB of DATA FLASH memory.
Yes, it features a built-in multi-channel 12-bit SAR ADC with a 285Ksps sampling rate, 4 low-offset operational amplifiers, 1 PGA, 2 6-bit DACs, and 2 low-offset comparators.
The microcontroller supports 2 UART interfaces, 1 I2C interface, 1 SPI interface, 22 general-purpose GPIOs, and a built-in buzzer driver.
This chip is provided in a compact SSOP24 package format.
