What are the specifications of the WINSOK WSD3023DN56?

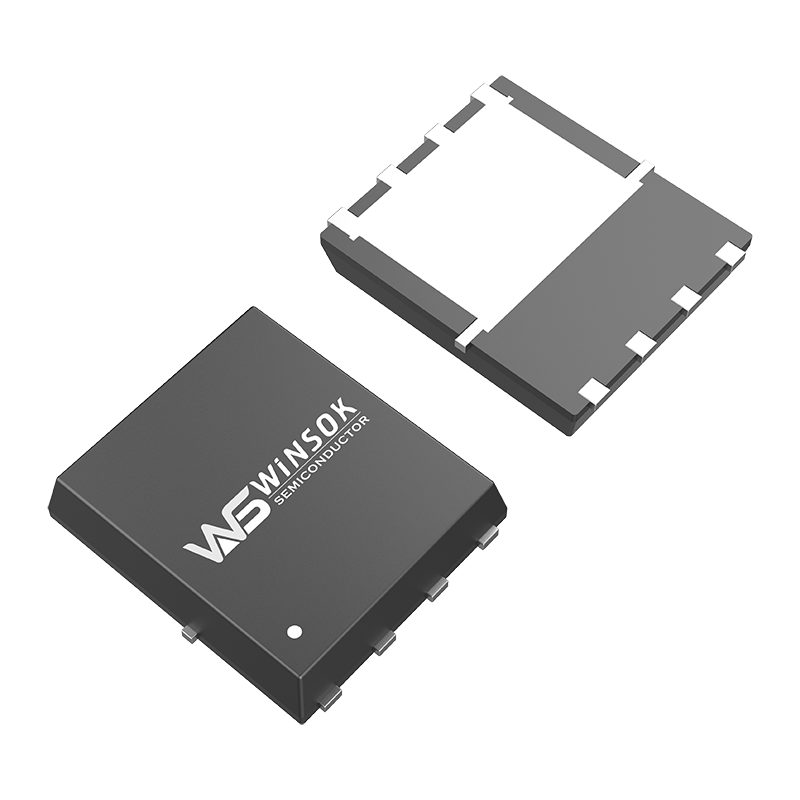

The WINSOK WSD3023DN56 is an N-Ch and P-Channel MOSFET housed in a DFN5*6-8 package. It operates at a BVDSS voltage of 30V/-30V, supports a current ID of 14A/-12A, and features an internal resistance RDSON of 14mΩ/23mΩ.
Which MOSFETs offer the lowest internal resistance (RDSON)?
Among the listed components, the WINSOK WSD3023DN56 offers the lowest internal resistance of 14mΩ/23mΩ, followed by the AOS AOND32324 with an RDSON of 19.5mΩ.
What applications are these MOSFETs suitable for?
These high-performance MOSFETs are designed for a variety of industries, including UAVs (drones), motor control systems, automotive electronics, and major home appliances.
How do the AOS AON6661 and AON6667 compare?
The AOS AON6661 and AOS AON6667 feature identical core specifications, with a voltage BVDSS of 30V / -30V, a current ID of 16A / -16A, and an internal resistance RDSON of 35mΩ.
What is the performance of PANJIT PJQ5606 and POTENS PDC3701T?
The PANJIT PJQ5606 operates at 30V / -30V with a current capability of 25A / -22A and 28mΩ internal resistance. The POTENS PDC3701T operates at 30V / -30V with 23.3A / 15.2A current capacity and 29mΩ internal resistance.
